Note: Windlasses will be available in 15 days from order.
When ordering, please specify in the notes field for what kind of chain you want the windlass.

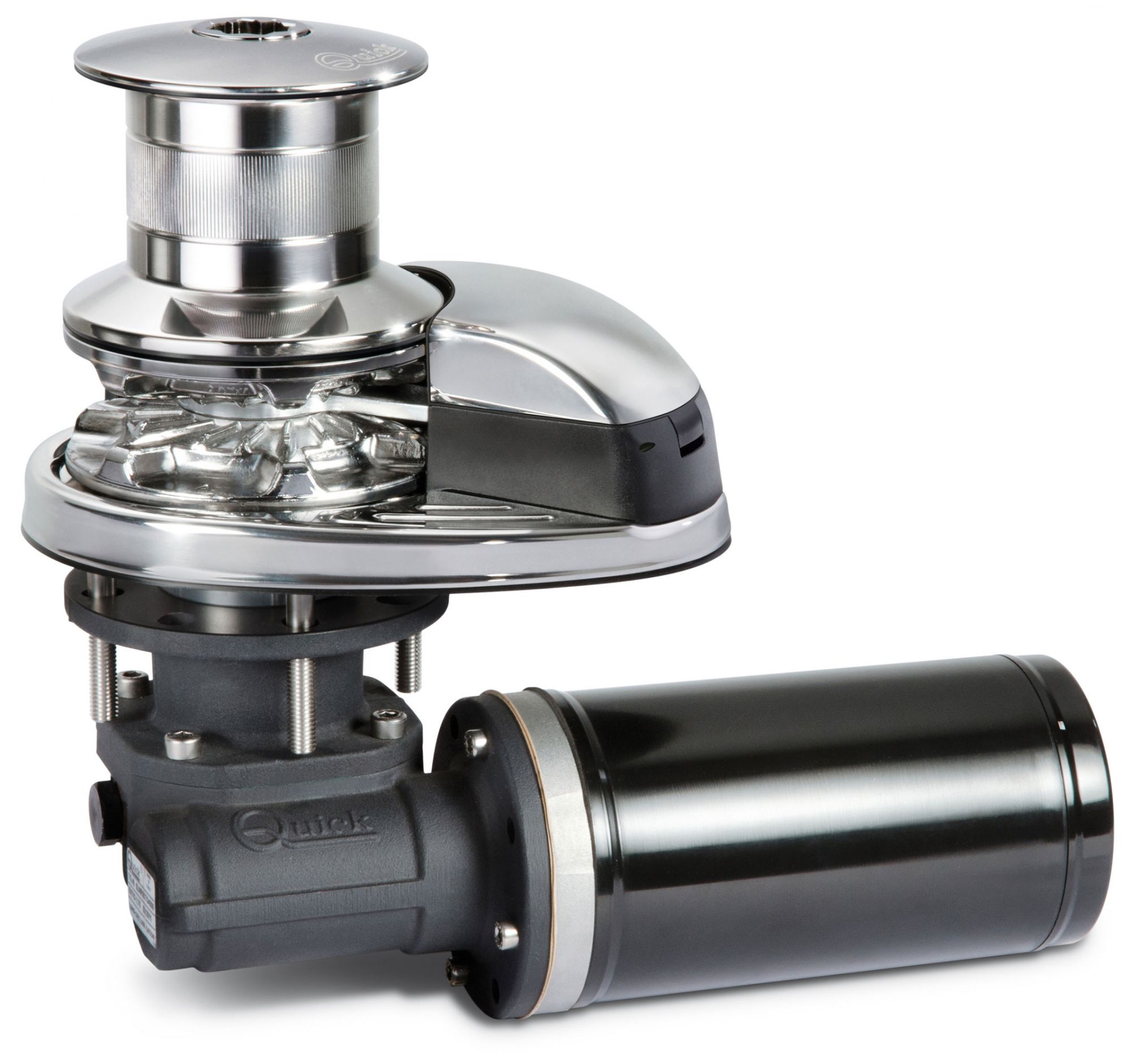

PRINCE series is the new range of Quick electric windlasses, equipped with motors ranging from 300W to 1500W.
The new models display contemporary-inspired shapes and design and above all the Made-in-Italy style, and have been conceived to perfectly meet the market requirements.
Prince windlasses are the result of a long route of research and design, aimed at creating a high-quality and competitive range. The choice of materials includes both stainless steel, which offers high-resistance features and aluminum with a special plastic fiber used for some parts of the structure that enhances the mechanical and functional performance.
The motor-gearboxes, manufactured by Quick, are in anodised aluminium and all motors are equipped with a waterproof casing.
Vertical drive motor: easy and quick drop-in installation. Vertical windlasses.
Aisi 316 Stainless steel base. With drum. Rope and chain on a single gypsy. Manual Free-Fall system. Supplied with pressure lever - Inspection lid. IP67 watertight motor. Anodised aluminium gearbox. For boats from 5 to 13 metres (16 - 43 ft).
- Gypsy: 6/7/8mm for Chain (specify when ordering)
- Motor power: 700w;
- Motor supply voltage: 12V;
- Maximum pull: 680kg;
- Maximum working load: 300kg;
- Maximum chain speed: 22.6 m/min;
- Weight: 16.3 kg.
The box contains only the contactor; switches and control panels are sold separately.
A circuit breaker is recommended.
