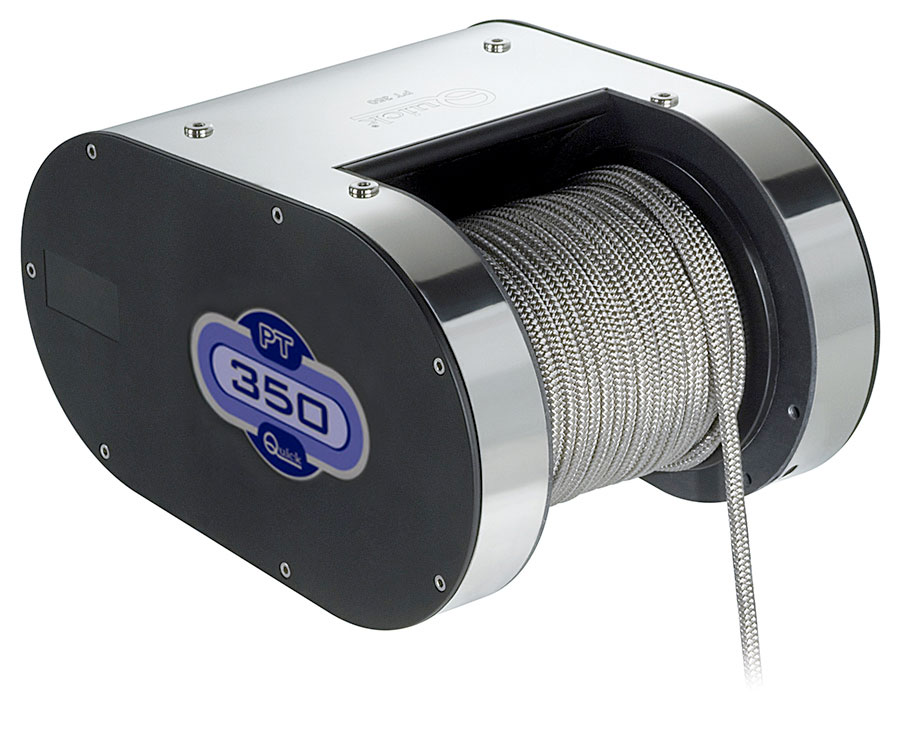

Windlasses on-deck PTR 350W/24V - 1000Lb in AISI 316 stainless steel and anodised aluminium. IP67 watertight motor. Suitable for boats 8-12mt (26-39ft).
- Motor power: 350W;
- Motor supply voltage: 24V;
- Maximum pull: 750Kg;
- Maximum working load: 250Kg;
- Working load: 100Kg;
- Current absorbtion working load: 16A;
- Maximum chain speed: 21,5 m/min;
- Maximum chain speed working load: 18,3 m/min;
- High tenacity Dyneema including rope length: 30mt (max rope length 30mt);
- Rope diameter: 6mm;
- Weight: 10,2kg.
The box contains only the contactor; switches and push buttons are sold separately.
A circuit breaker is recommended.
