Description

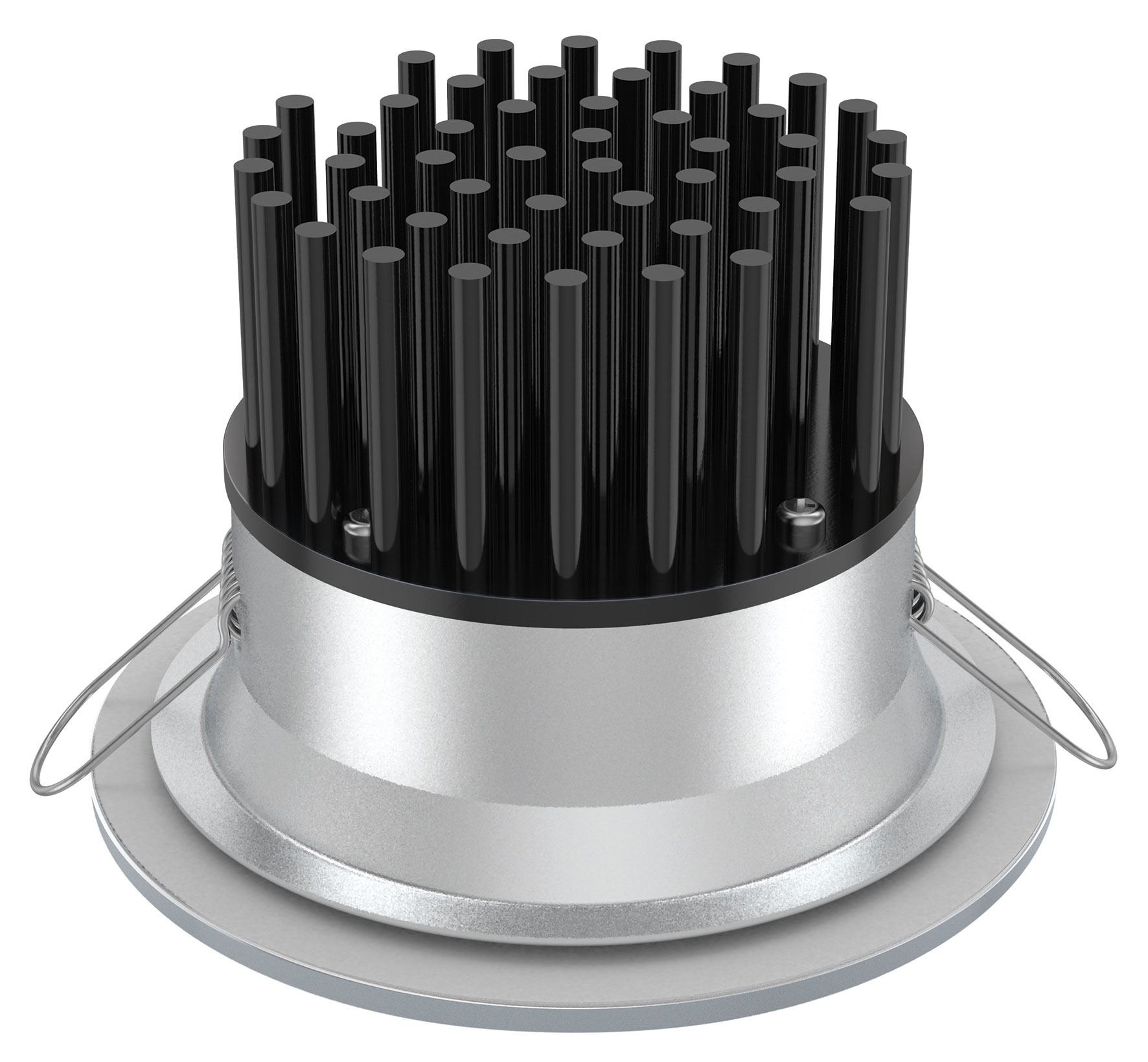

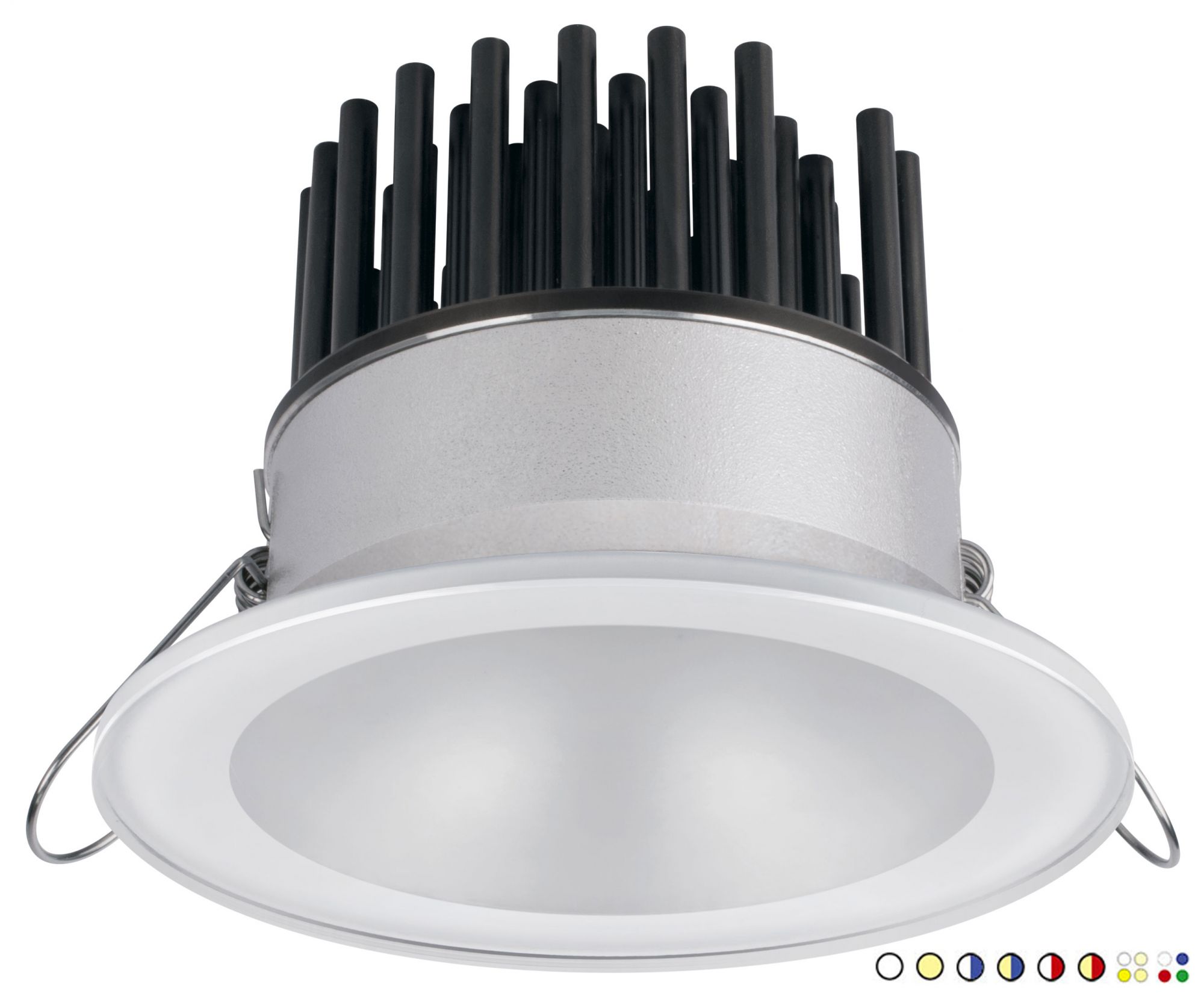

Quick ZEUS LP 12W 10~30Vdc LED downlight 675-895lm IP40 DL102 Ø102mm made with 5.5mm tempered glass
Modern series of Power LED downlights.
The diffuser, made with tempered glass, gives the product a particularly refined look.
Round tempered glass frame - satin finish lens. Natural, warm, white/blue, white/red, tunable white, RGBW light.
Available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.
Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 12 W;
Current consumption: 0.5 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Light colours: DAYLIGHT / WARM WHITE / DAYLIGHT-BLUE / W.WHITE-BLUE / DAYLIGHT-RED / W.WHITE-RED / TUNABLE WHITE / RGBW;

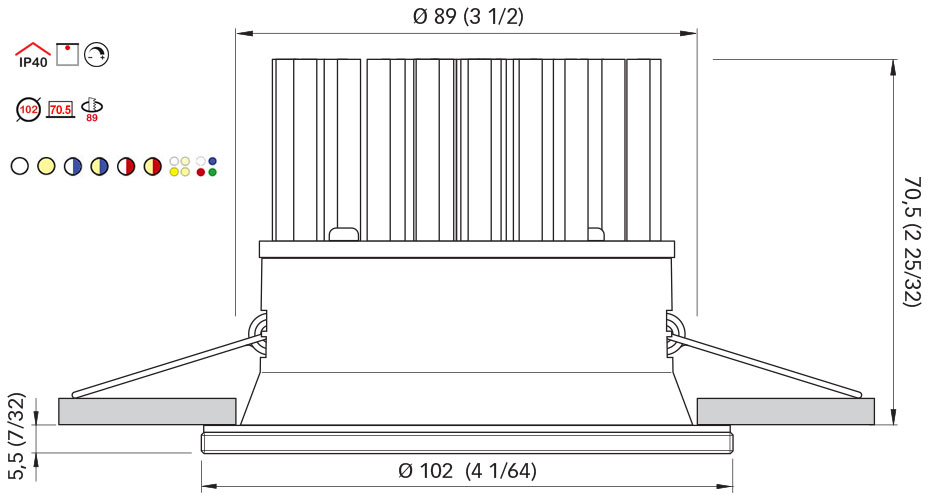

Frame material: 5.5 mm GLASS;
Square frame: Ø 102 4 1/64";
Recess: 70.5 mm 2 25/32";
Hole: Ø 89 mm 3 1/2";
Mounting: springs.
Photometric data:

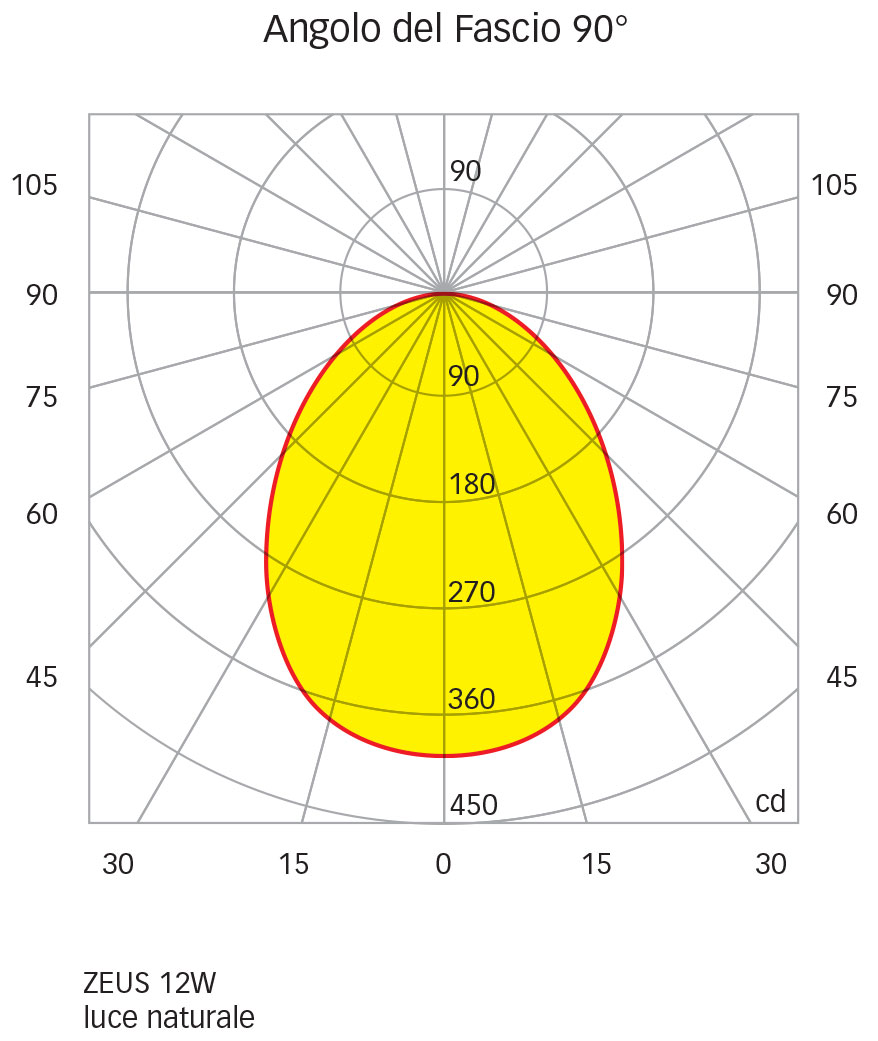

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 90°;
- Luminous flux: 675 lm;
- Illuminance - distance 1 m: Ø 1.98 m - 396.3 lux;
- Illuminance - distance 2 m: Ø 3.96 m - 99.1 lux;
- Illuminance - distance 3 m: Ø 5.94 m - 44 lux.

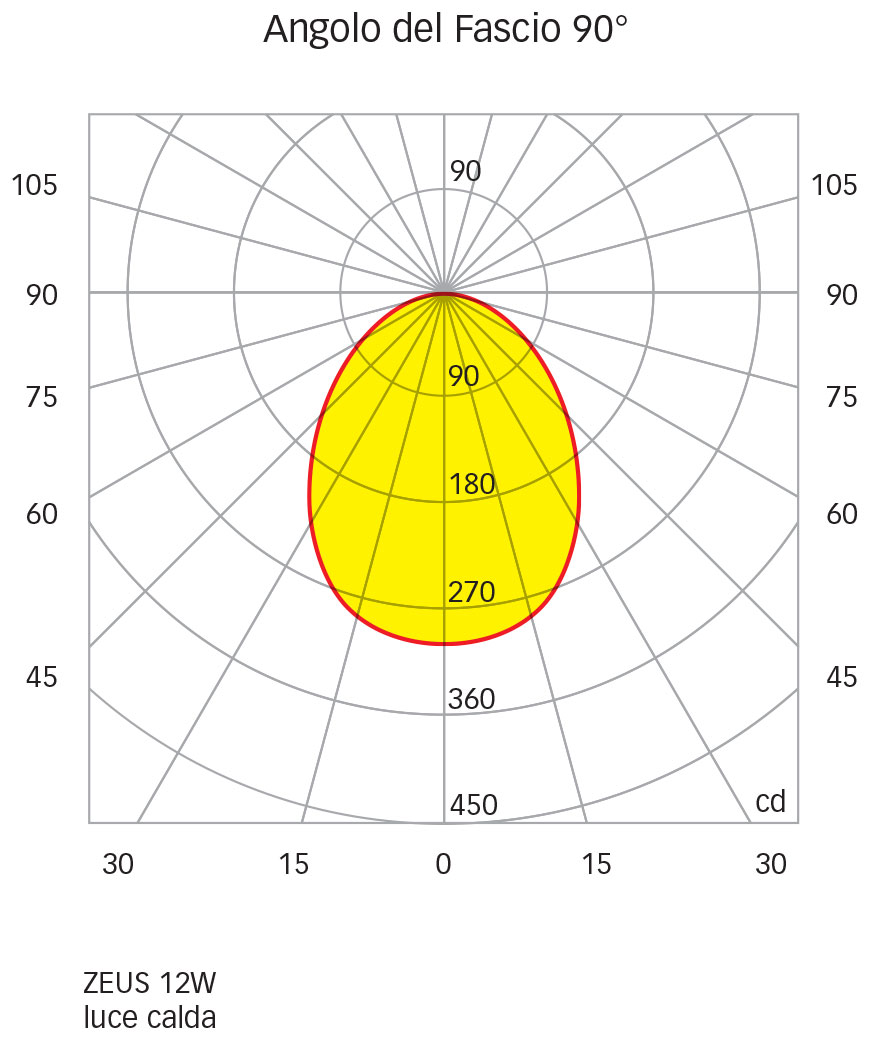

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 90°;
- Luminous flux: 895 lm;
- Illuminance - distance 1 m: Ø 1.98 m - 298 lux;
- Illuminance - distance 2 m: Ø 3.96 m - 74.5 lux;
- Illuminance - distance 3 m: Ø 5.94 m - 33.1 lux.
NATURAL WHITE BLUE
- CRI: ≥ 80;
- Angle: 90°.
WARM WHITE BLUE
- CRI: ≥ 80;
- Angle: 90°.
NATURAL WHITE RED
- CRI: ≥ 80;
- Angle: 90°.
WARM WHITE RED
- CRI: ≥ 80;
- Angle: 90°.
RGBW
- CRI: ≥ 80;
- Angle: 90°;
TUNABLE WHITE 2700-5700 °K
- CRI: ≥ 80;
- Angle: 90°.
BI-COLOUR version: 12W white light + courtesy light.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.
Note: Please choose the desired colour from the drop down menu.
25300013BIN NATURAL WHITE
25300013BIC WARM WHITE
25300013RGBW RGBW
25300013BID DYNAMIC WHITE
25300013BNB NATURAL WHITE BLUE
25300013BNR NATURAL WHITE RED
25300013BCB WARM WHITE BLUE
25300013BCR WARM WHITE RED
