Description

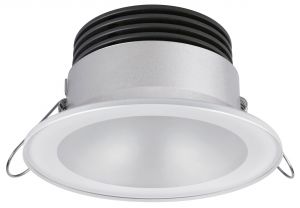

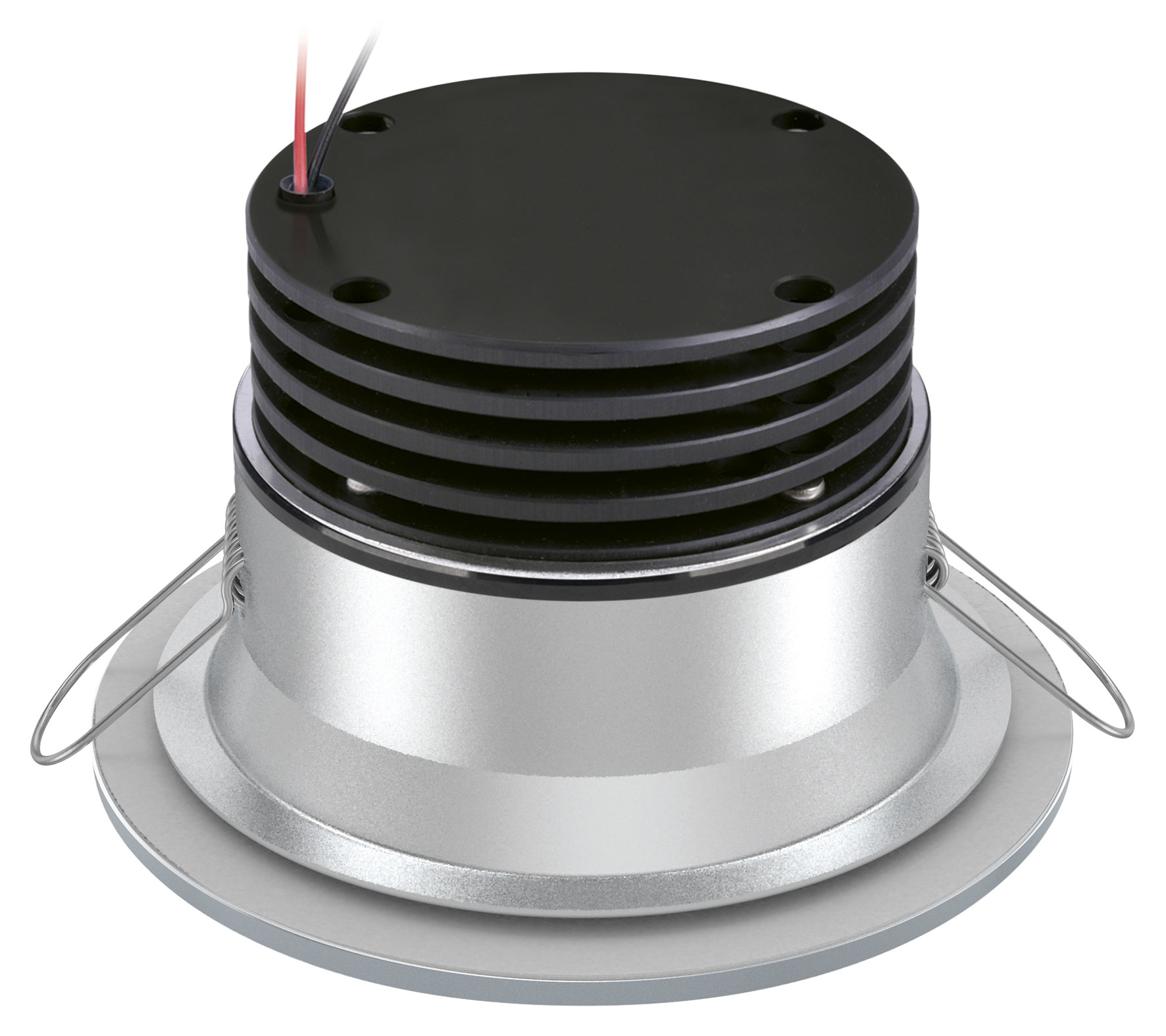

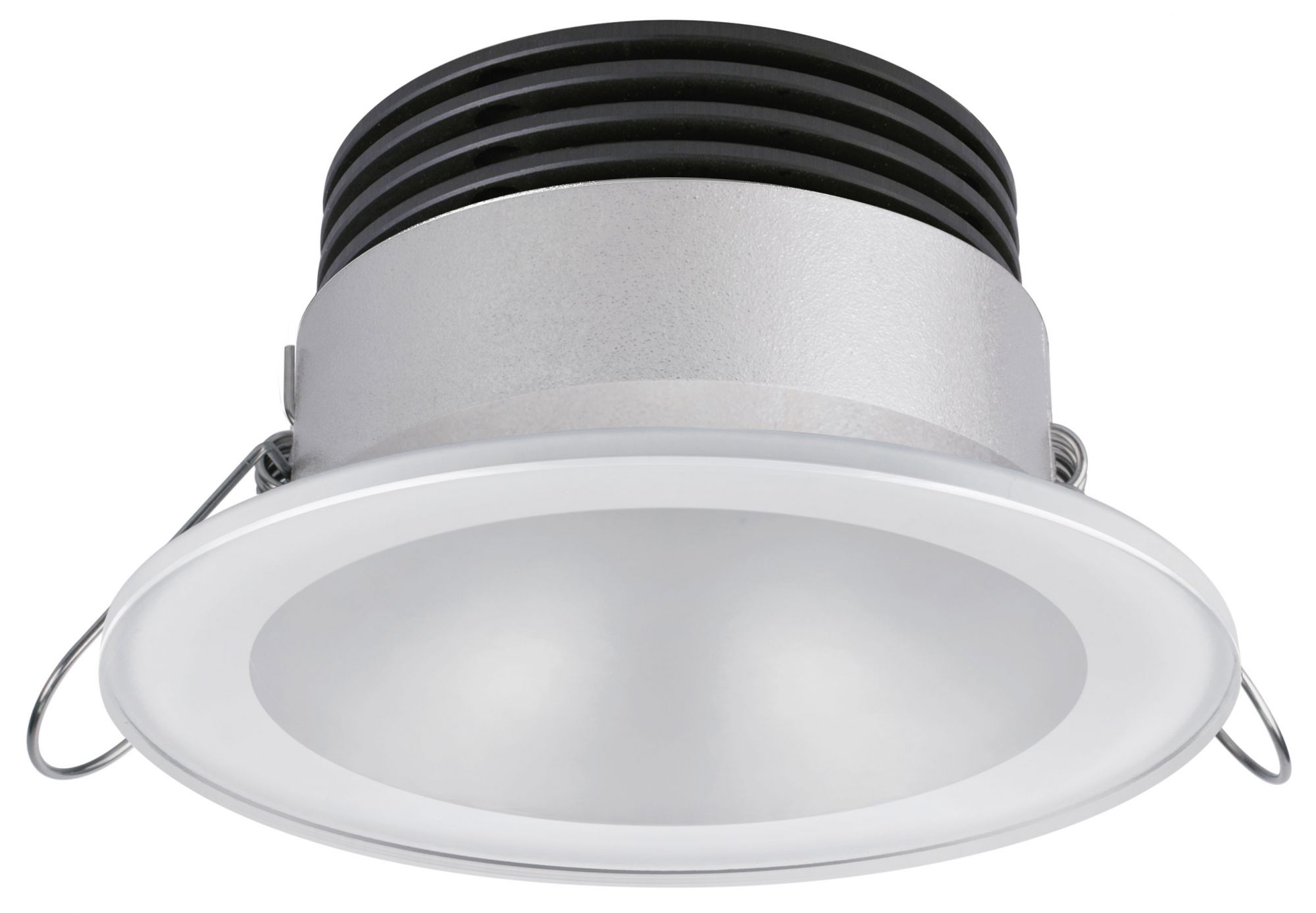

Quick ZEUS LP 7W 10~30Vdc LED downlight 365-400lm IP40 DL102 Ø102mm made with 5.5mm tempered glass
Modern series of Power LED downlights.
The diffuser, made with tempered glass, gives the product a particularly refined look.
Round tempered glass frame - satin finish lens. Natural, warm, tunable white, RGBW light.
Available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.
Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 7 W;
Current consumption: 0.29 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Light colours: DAYLIGHT / WARM WHITE / TUNABLE WHITE / RGBW;

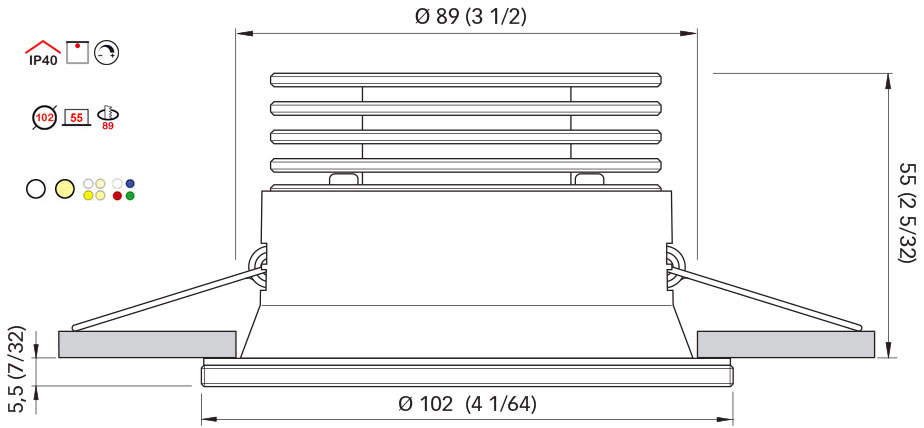

Frame material: 5.5 mm GLASS;
Square frame: Ø 102 4 1/64";
Recess: 55 mm 2 5/32";
Hole: Ø 89 mm 3 1/2";
Mounting: springs.
Photometric data:

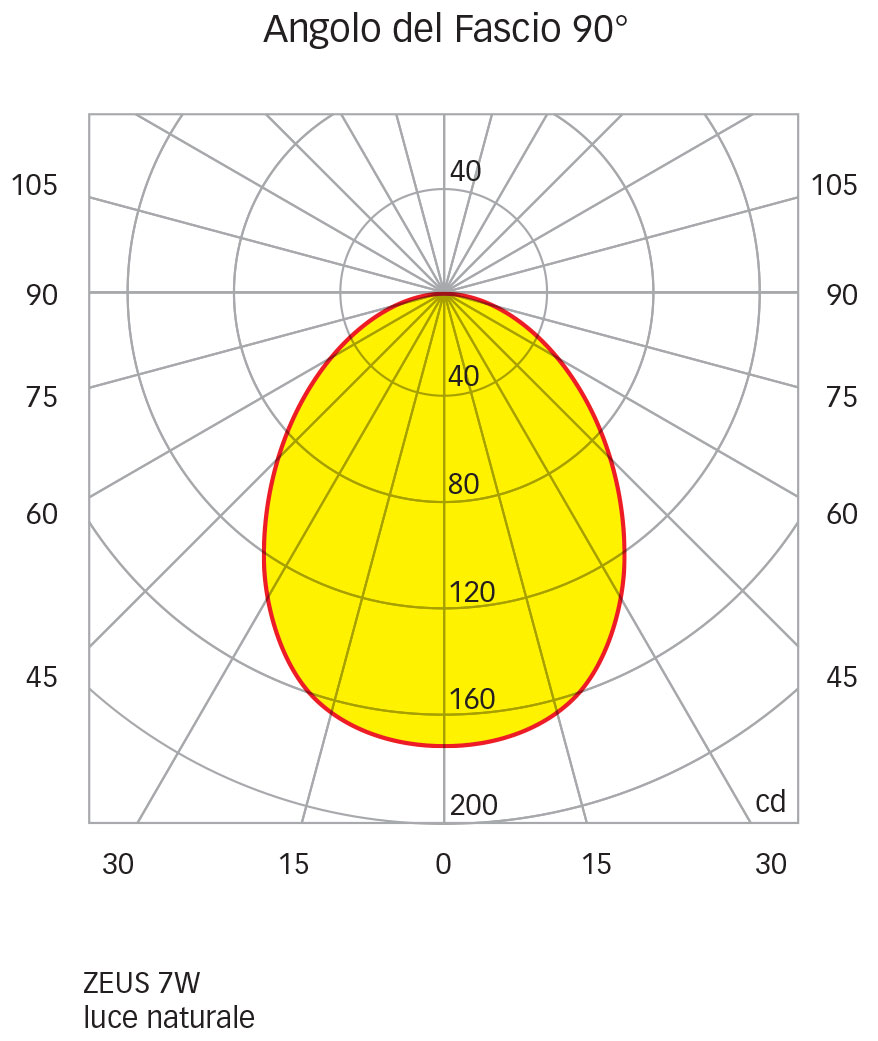

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 90°;
- Luminous flux: 400 lm;
- Illuminance - distance 1 m: Ø 2.09 m - 171.5 lux;
- Illuminance - distance 2 m: Ø 4.18 m - 42.9 lux;
- Illuminance - distance 3 m: Ø 6.27 m - 19.1 lux.

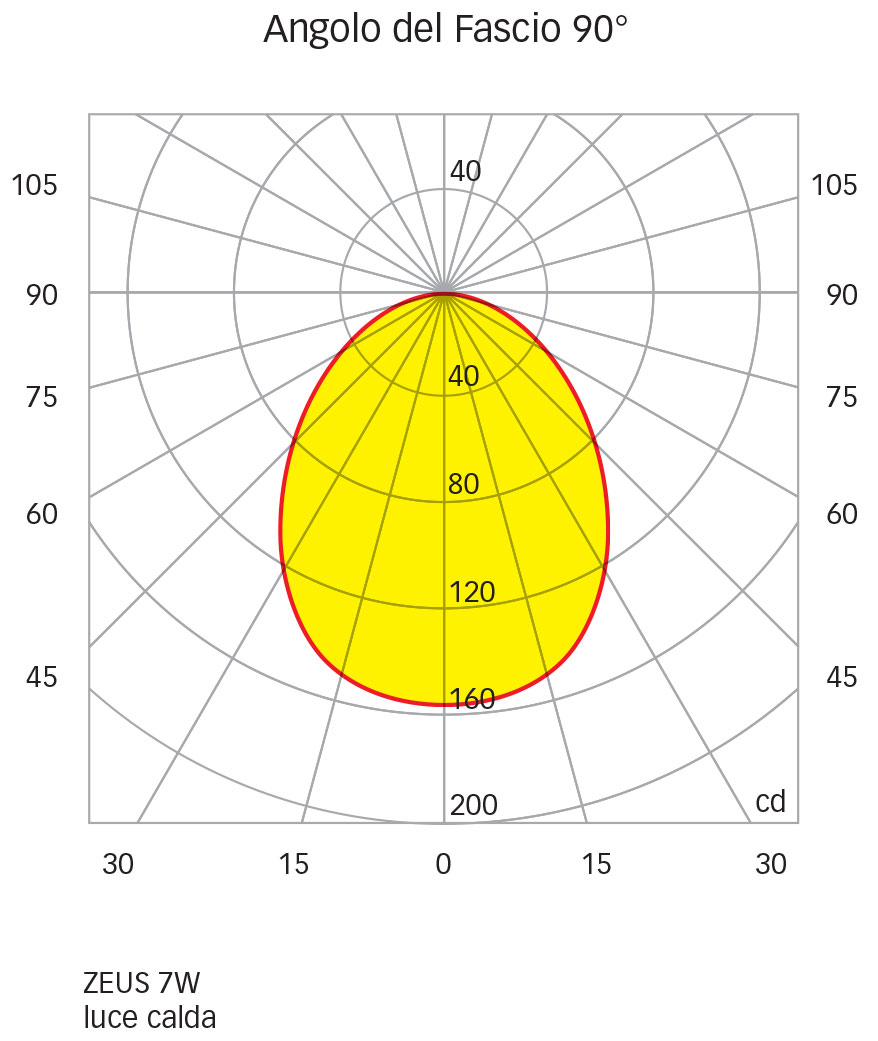

Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 90°;
- Luminous flux: 365 lm;
- Illuminance - distance 1 m: Ø 2.09 m - 155.9 lux;
- Illuminance - distance 2 m: Ø 4.18 m - 39 lux;
- Illuminance - distance 3 m: Ø 6.27 m - 17.7 lux.
RGBW
- CRI: ≥ 80;
- Angle: 90°;
TUNABLE WHITE 2700-5700 °K
- CRI: ≥ 80;
- Angle: 90°.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.
Note: Please choose the desired colour from the drop down menu.
25300011BIN NATURAL WHITE
25300011BIC WARM WHITE
25300011RGBW RGBW
25300011BID DYNAMIC WHITE
