Description

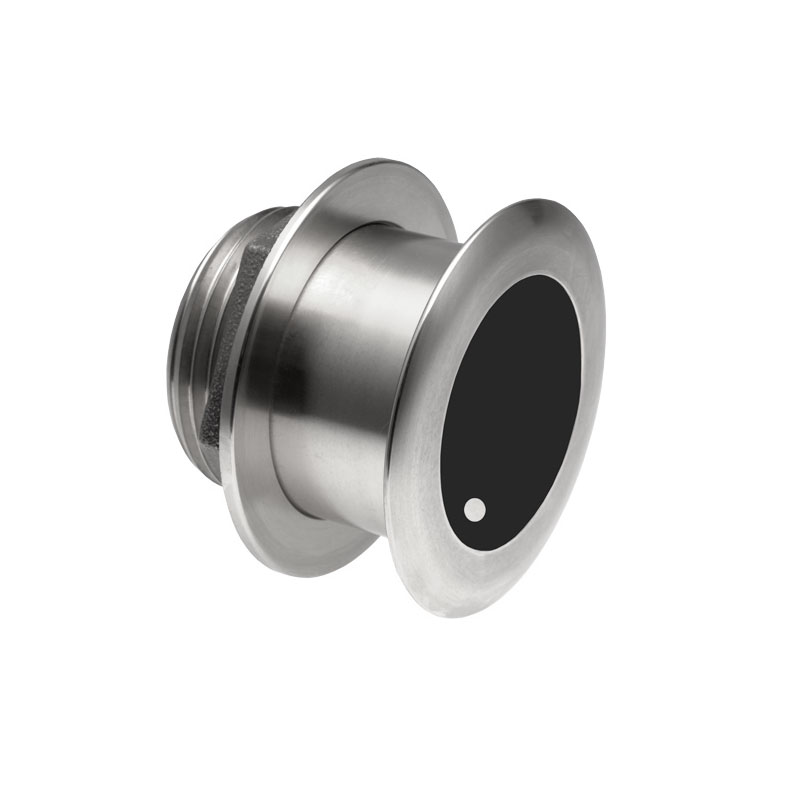

Raymarine SS164 0 Degree 1KW Through Hull 200/50 kHz Stainless Transducer
Stainless steel thru-hull transducer SS164 low profile 1kW 50/200kHz with depth and temperature data, 0° inclination angle, 9mt cable for DSM/CP370. With this transducer you can use the fishfinder function (CHIRP) of the suitable Raymarine chartplotters.
To connect Thru-hull Mount transducer to the Axiom DV need to AXIOM DV A80485 adapter cable (look at code 64520638).
To connect Thru-hull Mount transducer to the Axiom RV need to AXIOM RV A80489 adapter cable (look at code 64520639).
To connect Thru-hull Mount transducer to the Axiom PRO need to AXIOM PRO-RVX A80496 adapter cable (look at code 64520640).
Features:
Installation: Thru-hull Mount;
Material: Stainless steel;
Power (RMS): 1000W;
Frequency: 50/200 KHz;
Beam Width (L/H): 25°;
Records: Depth/Temperature;
Approved Hull Material: Fibreglass / Wood / Metal;
Cable length: 9 mt;
Tilt: 0°.
Raymarine A80451.
