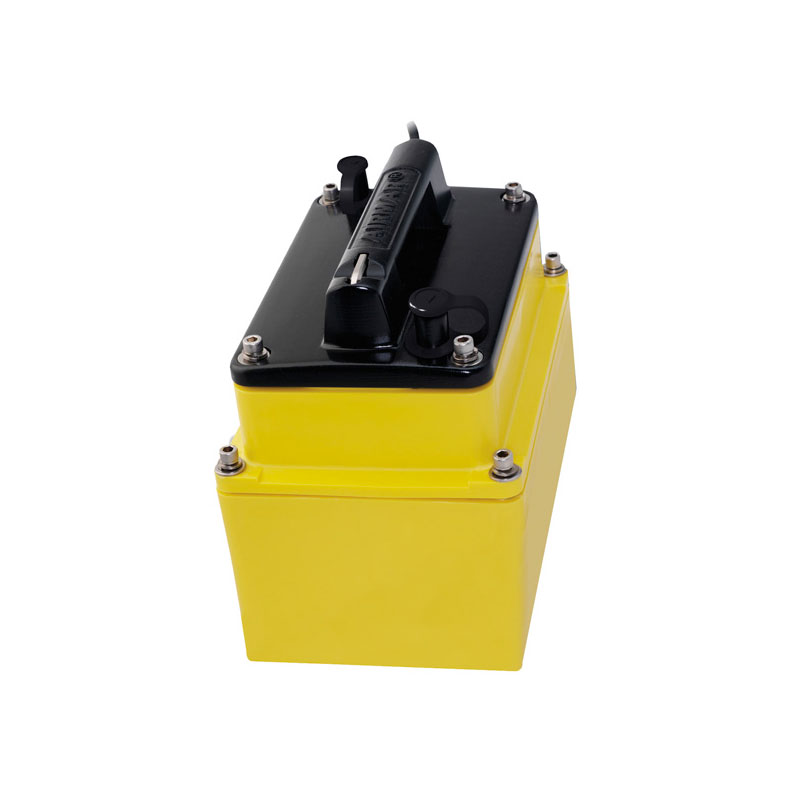

Frequency transducer for indoor installation in oil bath, power 1kw, only depth.
The M260 is able to transmit and receive through solid fiberglass, displaying sharp detailed images. The narrow beam widths provide excellent target separation and the ability to easily identify fish even when they are close to the bottom.
To connect M260 transducer to the Axiom DV need to AXIOM DV A80485 adapter cable (look at code 64520638).
To connect M260 transducer to the Axiom RV need to AXIOM RV A80489 adapter cable (look at code 64520639).
To connect M260 transducer to the Axiom PRO need to AXIOM PRO-RVX A80496 adapter cable (look at code 64520640).
Features:
Installation: In-Hull;
Material: Urethane;
Power (RMS): 1000W;
Max Depth (Ft): L:2,500 / H:1,000;
Frequency (KHz): 50 / 200;
Beam Width (L/H): 19° / 6°;
Records: Depth;
Approved Hull Material: Solid Fibreglass only,
Cable Length (Ft/M): 30ft / 9m;
Supported Deadrise / Transom Angles: 0-30° Deadrise;
Mounting kit included.
Raymarine A66089.
