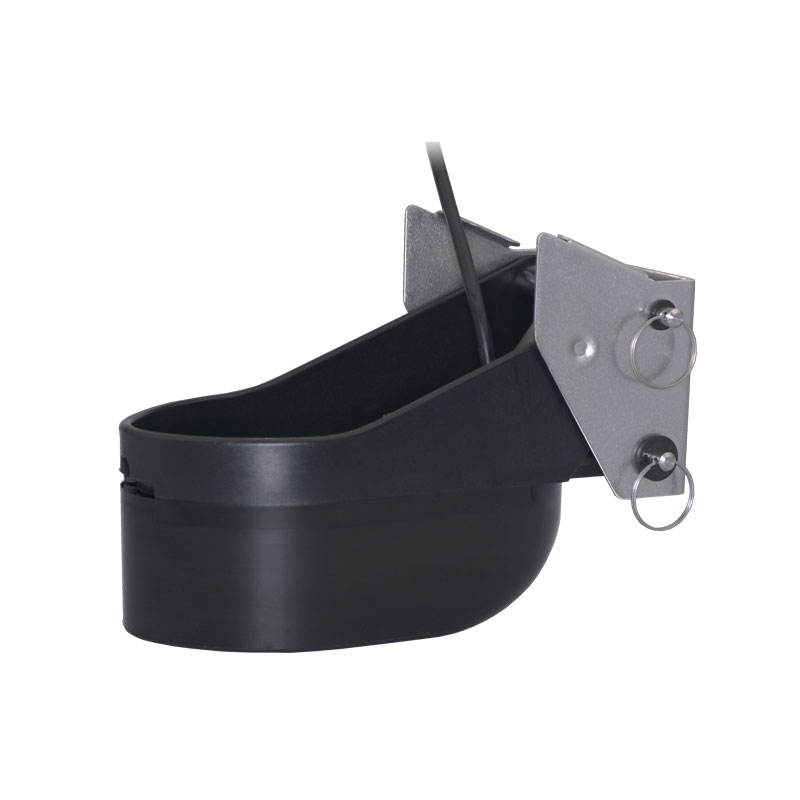

Raymarine TM258 1KW Transom - Sonar Transducer a high performance fro Axiom Pro

Featuring a rugged mounting bracket and 4 element design, the TM258 is an excellent trolling sonar, that can still perform at speeds of up to 30 knots.
To connect TM258 transducer to the Axiom DV need to AXIOM DV A80485 adapter cable (look at code 64520638).
To connect TM258 transducer to the Axiom RV need to AXIOM RV A80489 adapter cable (look at code 64520639).
To connect TM258 transducer to the Axiom PRO need to AXIOM PRO-RVX A80496 adapter cable (look at code 64520640).

Features:
Installation: Transom Mount;
Material: Plastic / Urethane;
Power (RMS): 1000W;
Max Depth (Ft): L:2,200 / H:1,000;
Frequency: 50/200 KHz;
Beam Width (L/H): 21°/5°;
Records: Depth/Temperature;
Approved Hull Material: Fibreglass / Wood / Metal;
Cable Length (Ft/M): 30ft / 9m;
Supported Deadrise/Transom Angles: 0-25° Transom;
Compatible with: DSM300.

Raymarine E66084.
