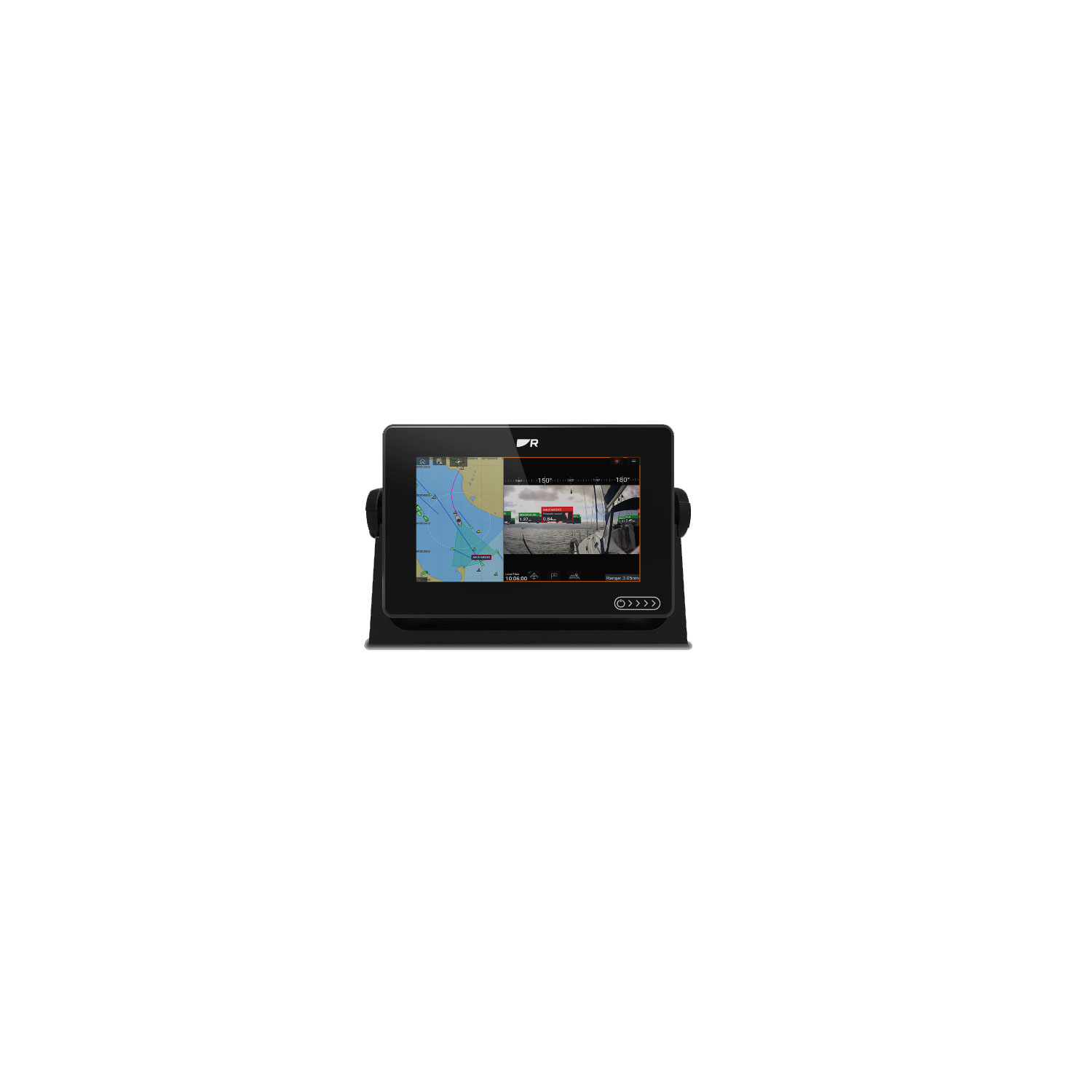

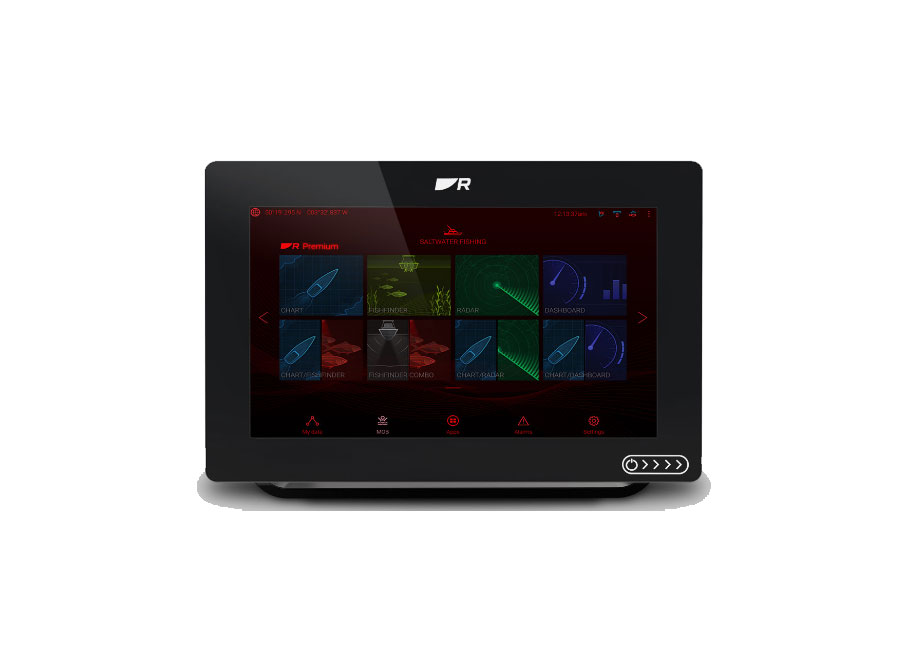

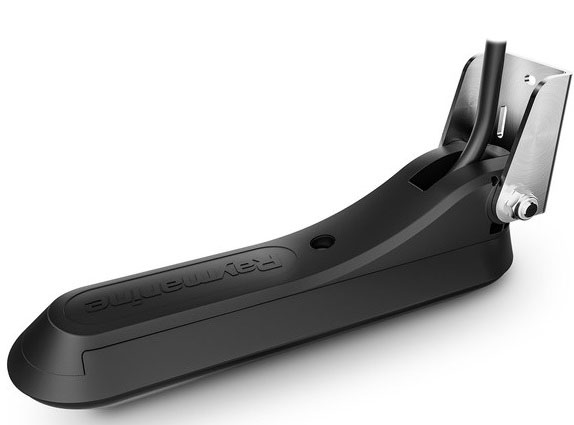

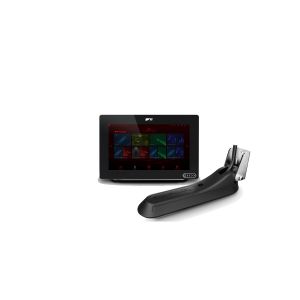

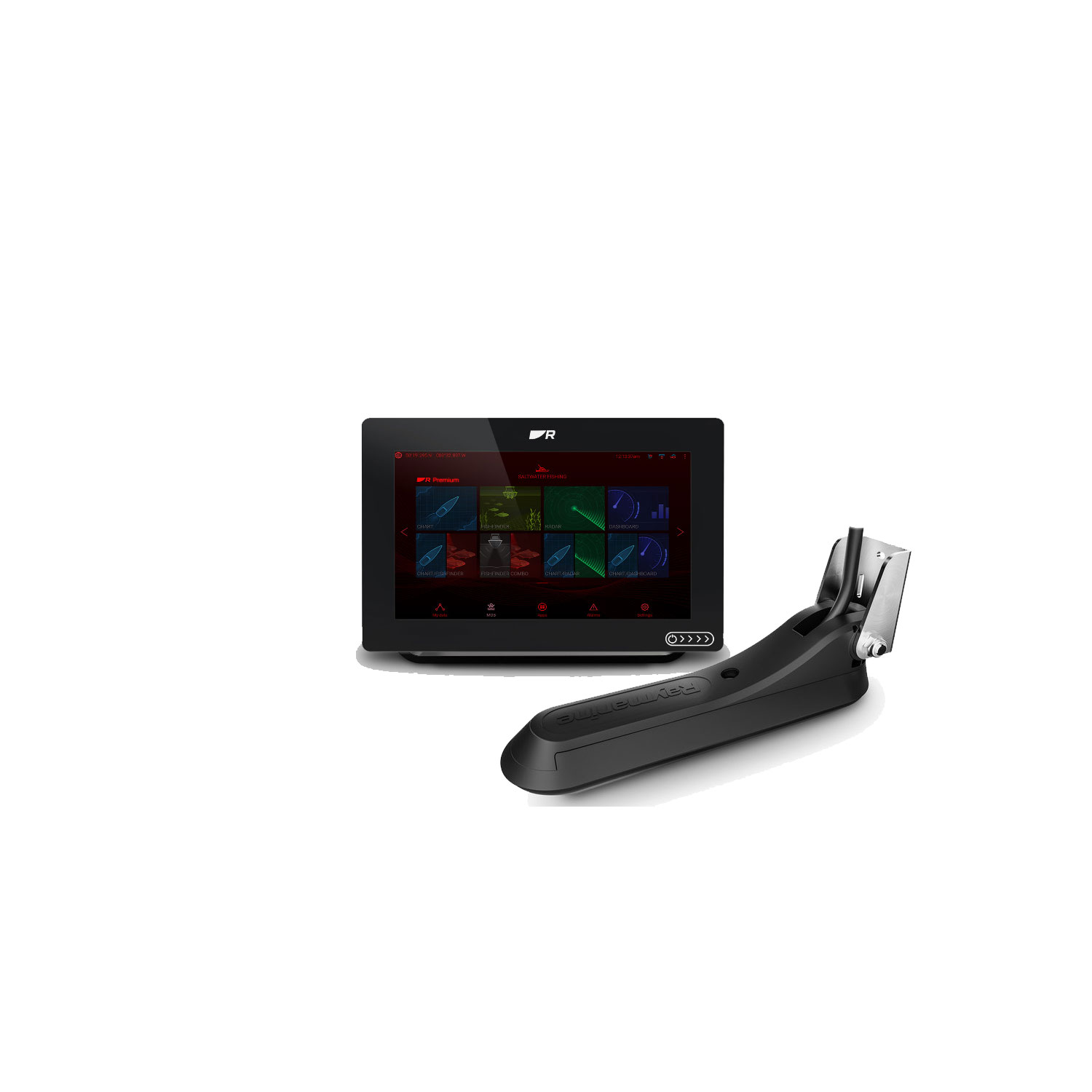

Raymarine Axiom+ 9 RV Multifunction Display 9” WiFi & Touch with 600W fishfinder, Down/Side/3DRealVision (NO cartography) with txd RV-100. Raymarine E70637-03.
Price:
€2,117.49
Listing:
€2,433.90
You Save:
€316.41 (13%)

Description

Raymarine Axiom+ 9 RV Multifunction Display 9” WiFi & Touch with 600W fishfinder, Down/Side/3DRealVision (NO cartography) with txd RV-100. Raymarine E70637-03.

NEW AXIOM+

HIGH-PERFORMANCE MULTIFUNCTION NAVIGATION DISPLAYS

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.

TECHNICAL SPECIFICATIONS
GENERAL
Display Size: 9.0 inch High Density IPS
Display Resolution: 1280 x 720 (WXGA)
Display Type: Multitouch with HydroTough™ rugged hydrophobic coating
Brightness: 1,500 nits
Viewing Angle: 85° Top, Bottom, Left, Right
Dimensions W x H x D: 244 x 158 x 77mm / 9.65 x 6.22 x 3.0in (Excluding trunnion and cables)
Weight: 5 lbs
Mounting Options: Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating: IPX6 / IPX7
Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)

POWER
Voltage: 12V DC (8V to 16V DC)
Power Consumption (Full brightness): 8.95 Watts. RV Sonar version 11.98 Watts

SENSORS
GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required

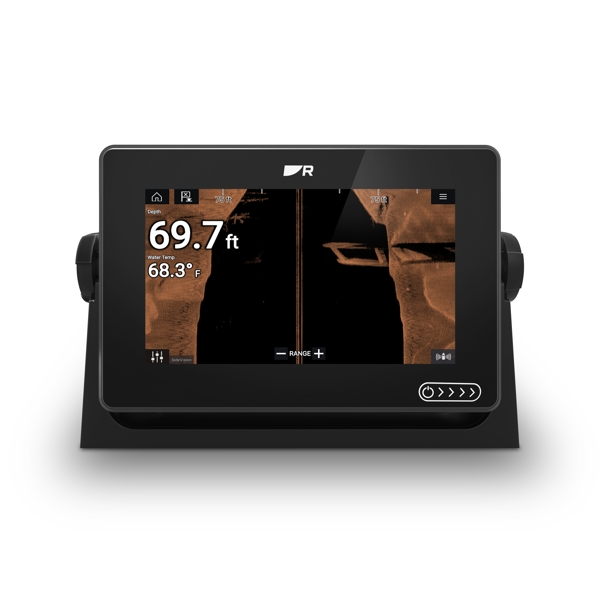

Sonar Type (Built-in): RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
Sonar Connections: 25pin RealVision™ type connector
Sonar Depth: High CHIRP Sonar = 900 feet (274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) | RealVision™ 3D = 300 feet (91m)
External Sonar Option: Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
Radar: Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS: Yes - NMEA2000 compatible
Autopilot Control: Yes - Evolution Autopilot
Thermal Night Vision: Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera: Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
Audio: NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital Switching: Yes - Empirbus & C-Zone compatible
Remote Control: Yes Optional RMK-10 (A80438)

NETWORKING
Ethernet: 1 x 10/100 Mbit/s Network (RayNet)
NMEA0183: No
NMEA2000: NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNG: Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB: 1 x USB microAB
Wi-Fi: WiFi - 802.11 a/b/g/n
BlueTooth: Bluetooth v4.0

NAVIGATION
Cartography: Lighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk): 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY
Internal Memory: 16 GB Solid State
External Memory: 1x MicroSD Card Slot
Languages: 24
Conformances: NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

OTHER
Languages: 24
Conformances: NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

Raymarine E70637-03.
