No Cartography.
Blazing fast performance and power at your finger tips
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

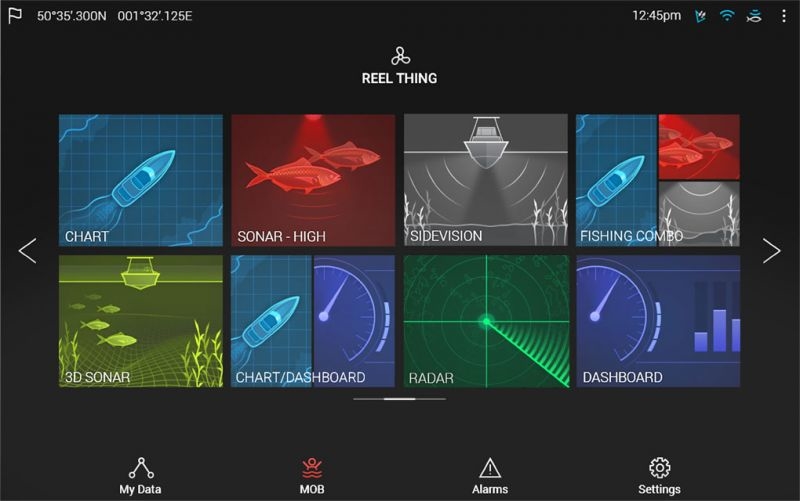

New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface is easily personalized for your style of navigating.

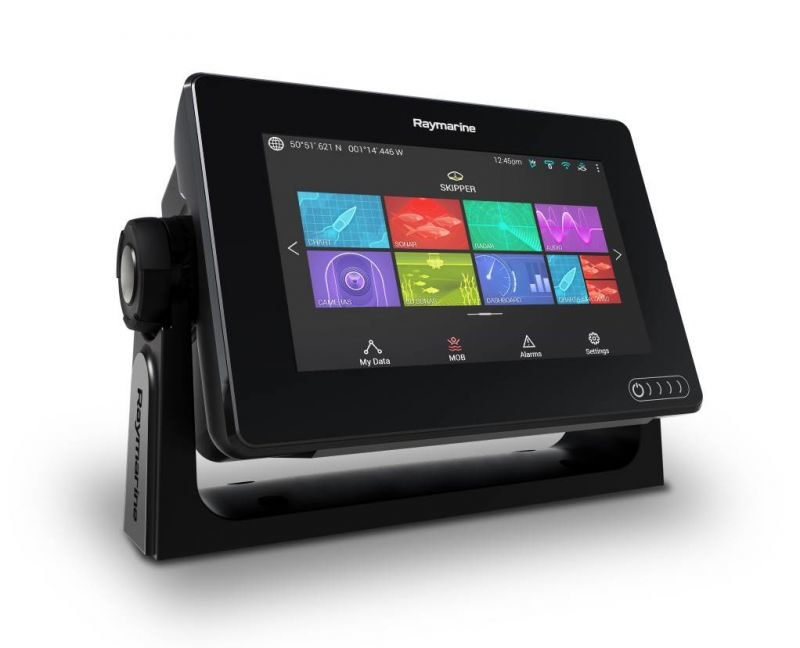

Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
IN THE BOX
1 1. MFD (supplied with Trunnion adaptor fitted)
2 Trunnion bracket
3 Trunnion knobs x 2
4 Suncover — Trunnion mount
5 Panel mount gasket for surface/flush mounting
6 M5x58 Threaded studs x 4
7 M5 Thumb nuts x 4
8 Documentation pack
9 Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
GENERAL SPECIFICATIONS
DISPLAY
Display Size: 7.0" Optically Bonded LCD
Display Resolution: 800 x 480 WVGA
Display Type: Multitouch
Brightness: 1,200 nits
Viewing Angle: Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
PHYSICAL
Dimensions: 210 x 142 x 77mm (7.92" x 5.24" x 3.00")
Weight: 1.52kg (3.35lbs)
Mounting: Top, Flush, Front, Bracket
Waterproof Rating: IPX6 / IPX7
Operating Temperature: -25deg C to +55deg C (-13deg F to 131deg F)
Storage Temp: -30deg C to +70deg C (- 22deg F to 158deg F)
POWER
Voltage: 12V DC (8 V to 16 VDC)
