Raymarine Axiom 7DV 7" Multifunction Display with Fishfinder DownVision & Transducer #RYE7036402

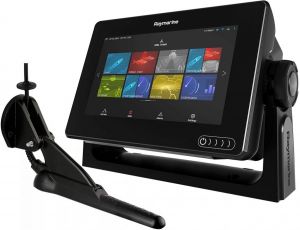

Raymarine Axiom 7DV 7" Multifunction Display with integrated DownVision, 600W Sonar including CPT-100DVS transducer. No Cartography. Raymarine E70364-02.
Price:
€949.95
Listing:
€1,091.90
You Save:
€141.95 (13%)

Description

Raymarine Axiom 7DV 7" Multifunction Display with Fishfinder DownVision & Transducer

Raymarine Axiom 7DV 7" Multifunction Display with integrated DownVision, 600W Sonar including CPT-100DVS transducer. No Cartography. Raymarine E70364-02.

Blazing fast performance and power at your finger tips

Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface is easily personalized for your style of navigating.

Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.

Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.


IN THE BOX
- 1. MFD (supplied with Trunnion adaptor fitted)
- Trunnion bracket
- Trunnion knobs x 2
- Suncover — Trunnion mount
- Panel mount gasket for surface/flush mounting
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
- Documentation pack
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- DownVision™ CPT-100DVS transducer and associated fittings.

GENERAL SPECIFICATIONS
DISPLAY
Display Size: 7.0" Optically Bonded LCD
Display Resolution: 800 x 480 WVGA
Display Type: Multitouch
Brightness: 1,200 nits
Viewing Angle: Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
PHYSICAL
Dimensions: 210 x 142 x 77mm (7.92" x 5.24" x 3.00")
Weight: 1.52kg (3.35lbs)
Mounting: Top, Flush, Front, Bracket
Waterproof Rating: IPX6 / IPX7
Operating Temperature: -25deg C to +55deg C (-13deg F to 131deg F)
Storage Temp: -30deg C to +70deg C (- 22deg F to 158deg F)
POWER
Voltage: 12V DC (8 V to 16 VDC)

SENSORS & PERIPHERALS SPECIFICATIONS
SENSORS

GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel
Sonar Type (Built-in): DV model - Built-in DownVision™ + 600W
Sonar Connection: DV variant = 9 pin DownVision™ type connector
Sonar Depth: DownVision™ = 183m (600 feet)
External Sonar: Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar: Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS: Yes - NMEA2000
Autopilot Control: Yes - Evolution Autopilot
Thermal Night Vision: Yes - IP camera input only
Video / Camera: Up to 10 IP Cameras
Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]
Audio Integration: NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]
Digital Switching: Yes - Empirbus
Remote Control: *RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]

NETWORKING SPECIFICATIONS
NETWORKING
Ethernet: 1 x 10/100 Mbits/ Network (RayNet)
NMEA0183: Requires suitable adaptor to NMEA2000 network
NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
SeaTalkNG: Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB: 1 x USB microAB rear - 1.0A charging, external storage device or RCR-SD/USB Accessory (A80440))
Wi-Fi: WiFi - 802.11 b / g / n
BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]

OTHER SPECIFICATIONS
NAVIGATION
Cartography Compatibility: Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Waypoint / Routes / Tracks: 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal: 4GB Solid State
External: 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
OTHER
Languages: 14
Conformances: NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

Raymarine E70364-02.
