Description

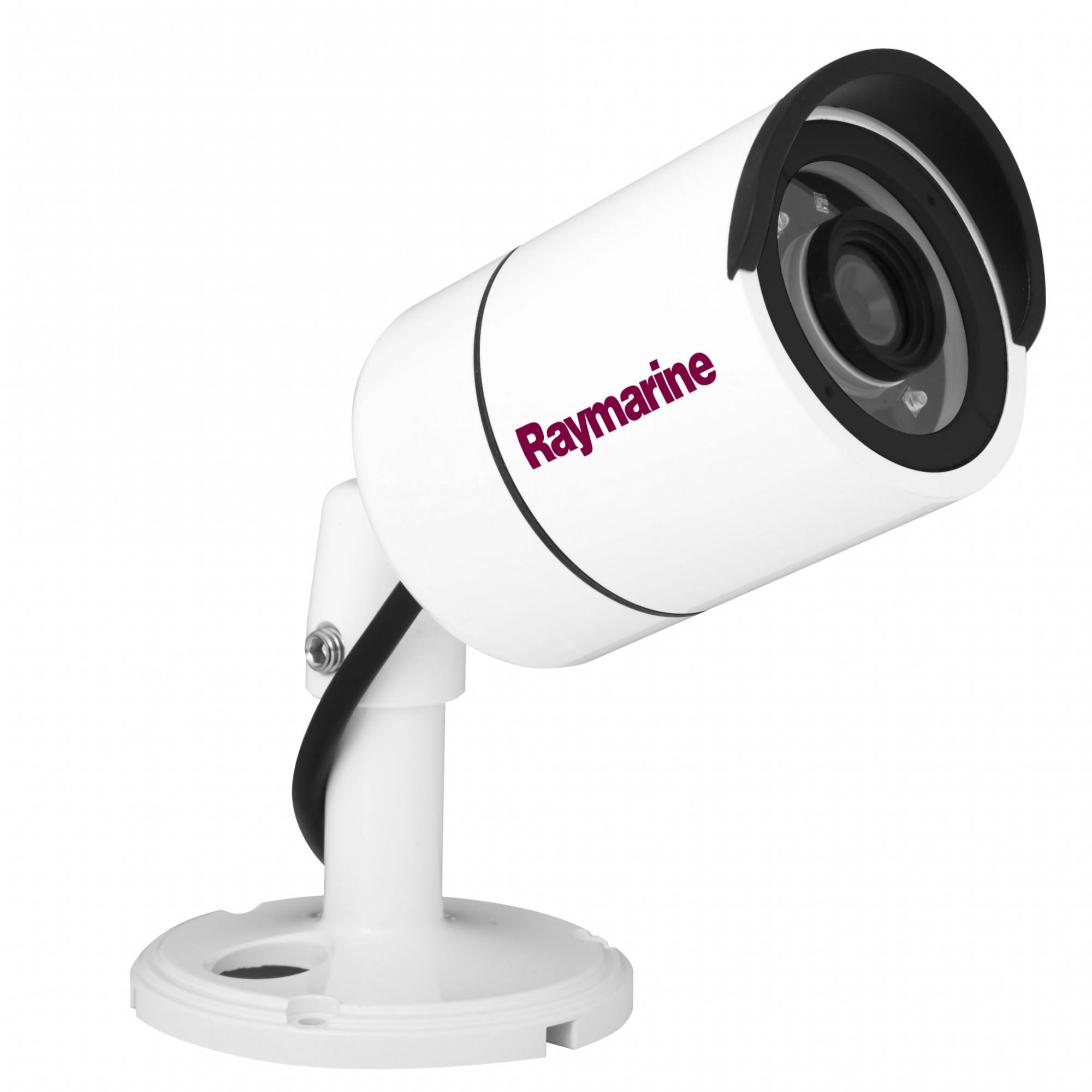

CAM210 IP Day and Night Network Marine Camera E70346 Raymarine
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

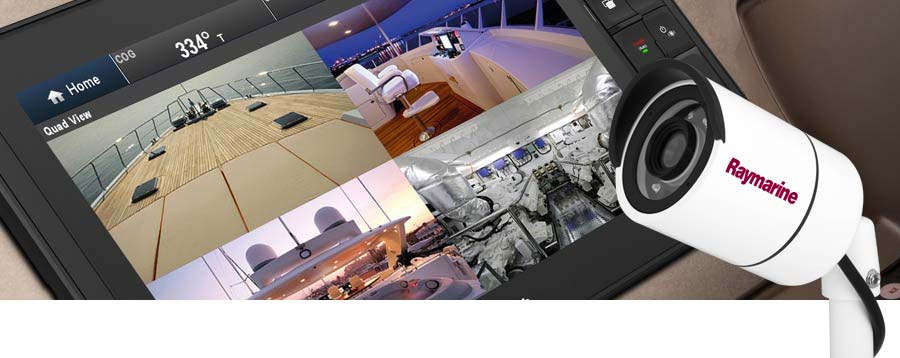

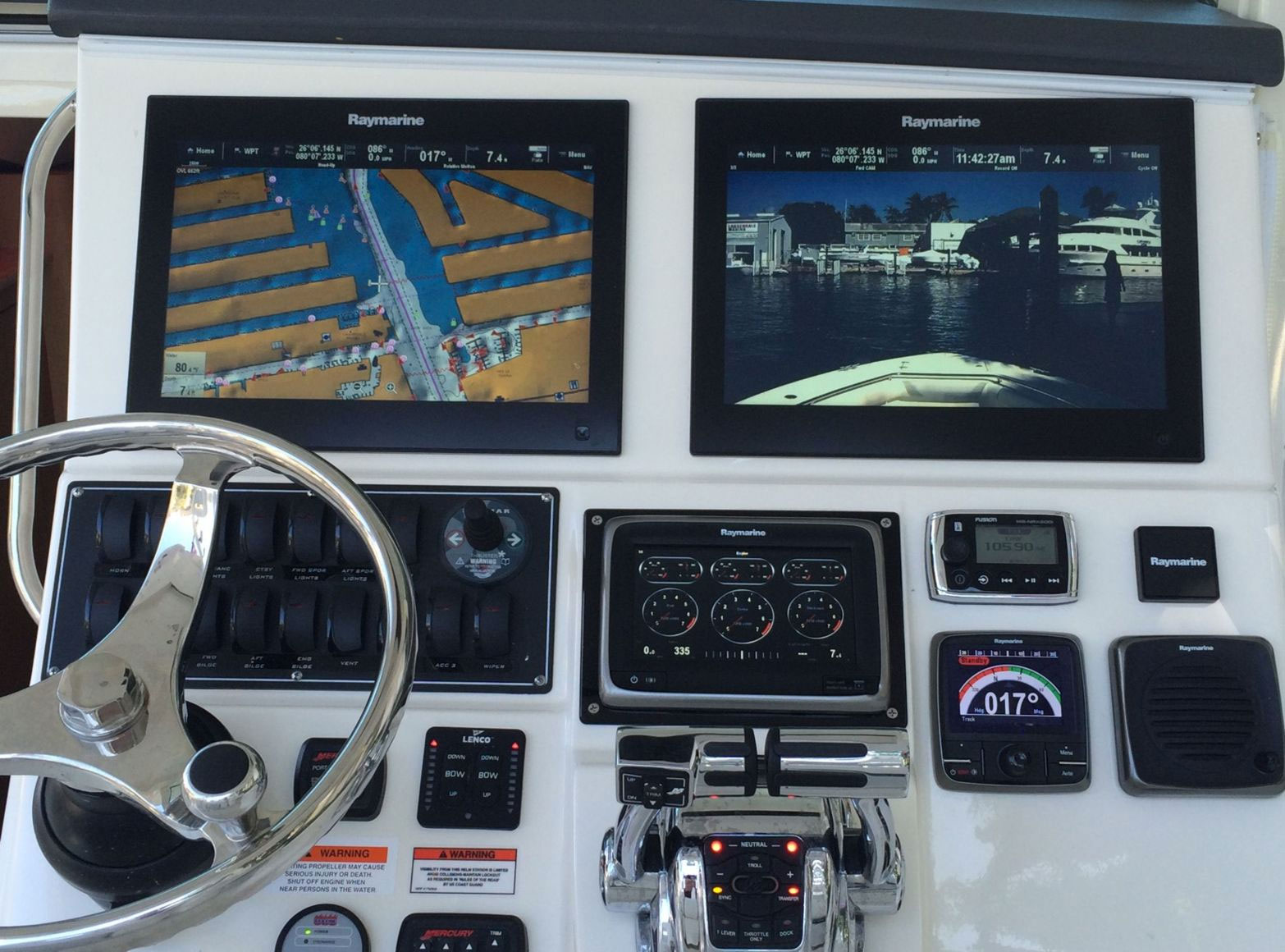

• Plug and play integration with Raymarine MFD’s running Lighthouse II.
• Power over Ethernet (PoE) or direct 12v DC power supply.
• High bright IR LEDs for operation in total darkness.
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke).
• Intelligent IR technology for clear video images at night in all conditions.
GENARAL SPECIFICATIONS
System
CPU: 32-bit ARM9 RISC CPU up to 432MHz;
Flash / SDRAM: 128MB / 128MB.
Camera
Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor);
Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel;
Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel;
S/N Ratio: More than 50dB;
Minimum Illumination: 0Lux (IR On);
IR Distance: 20m;
Day & Night: ICR;
Lens: 6.0mm Megapixel Board Lens;
Field of View: Diagonal = 63.6 deg +/- 3 deg - Horizontal = 33.1 deg +/- 3 deg - Vertical = 53.3 deg +/- 3 deg.
Video
Video Compression: H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps;
Resolution: Up to 1920 x 1080 (Full HD);
Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution;
Video Streaming: Support multi stream with H.264, MJPEG - Adjustable frame rate -
CVBR/CBR in H.264;
Image Setting: Day & Night - Auto White Balance - Auto Exposure - Privacy Mask - Effects - Colour, Sharpness, Mirror / V-Flip.
System Integration
Security: Password protection, User access log, HTTPS encryption;
Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP;
Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks.
Physical
Power Source: DC12V/1.5A, PoE (Power over Ethernet): 802.3af;
Power Consumption: Max. 3.3W, Max. 5.3W with IR;
Net Weight: 900g;
LED's: Power, Network Connection;
Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket;
General Operation Temperature: 0 degree~40 degree Celsius(32F~104F);
Storage Temperature: -10 degree~50 degree Celsius(14F~122F).
IN THE BOX
1 CAM210 IP Camera Stand;
1 Waterproof Coupler;
1 CAM210 Hardware Kit;
1 CD (English);
1 CAM210 Mounting Template;
1 Warranty Booklet;
3 Serial Number Labels - Service.
Raymarine E70346
