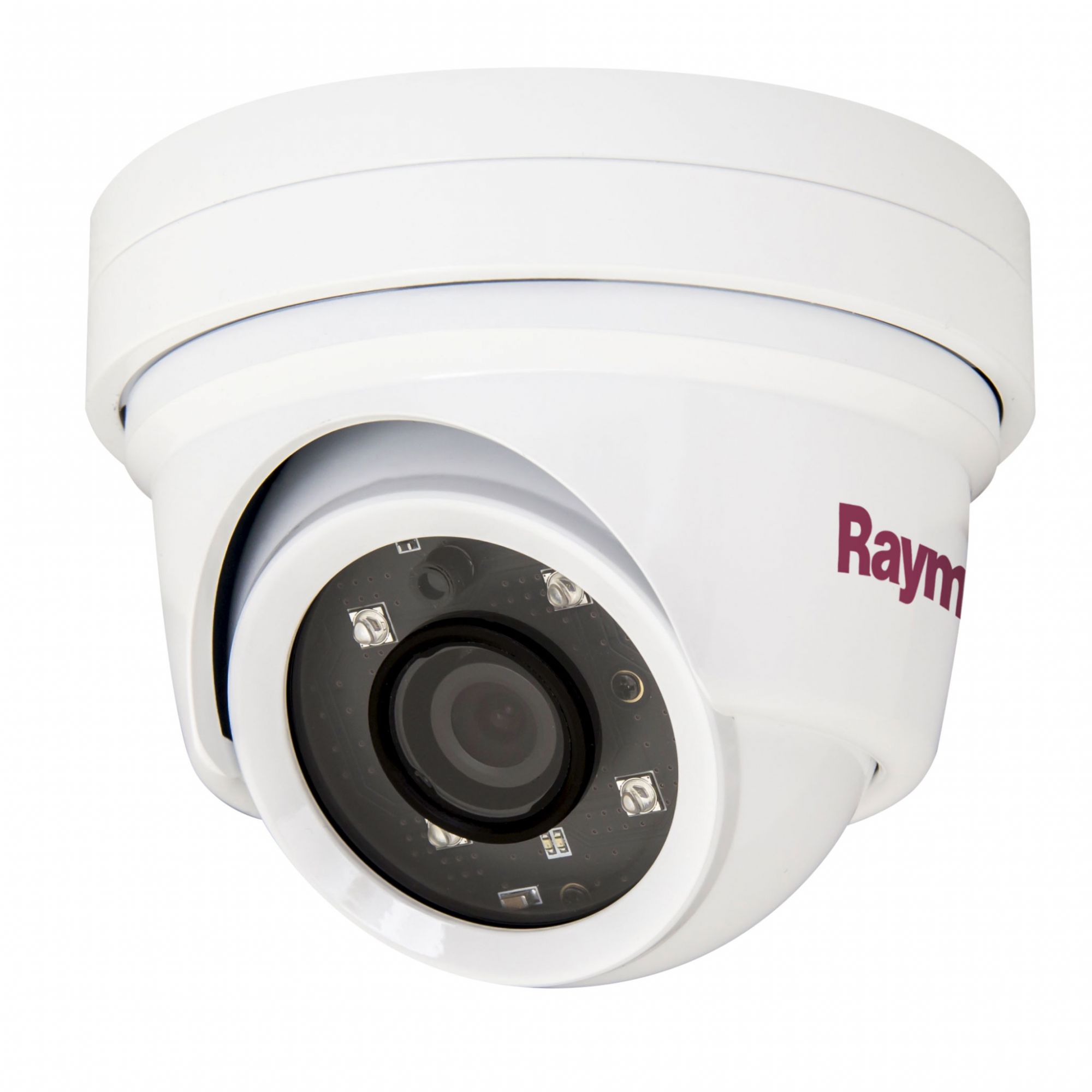

Ruggedised, High Definition, Day and Night network dome video camera suitable for above or below deck applications. Dome design provides all round selected viability whilst the small frame size allows for rapid installation. Stylised to blend in with your boat’s aesthetic design. Ruggedised, High Definition, Day and Night network dome video camera suitable for above or below deck applications.

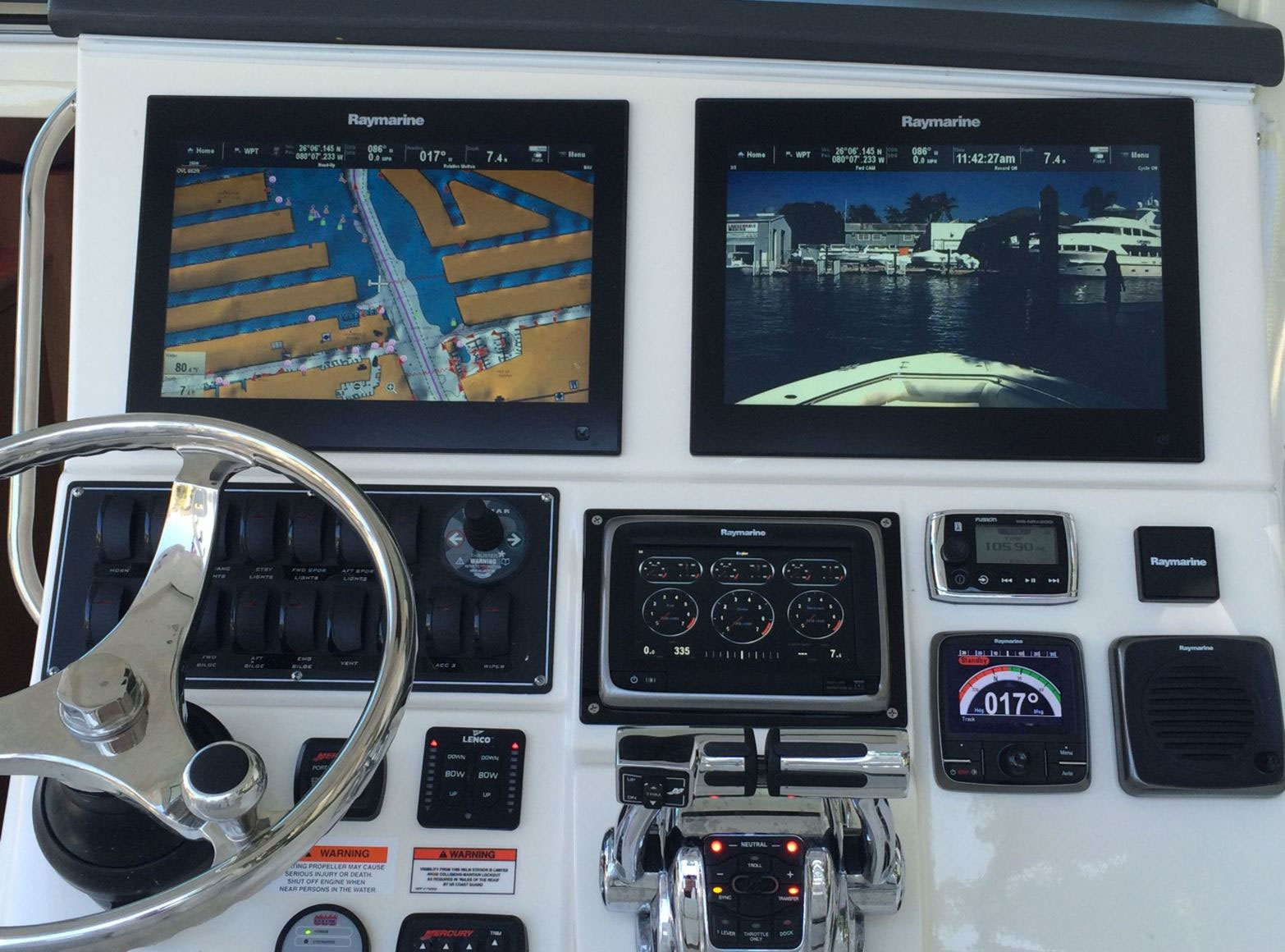

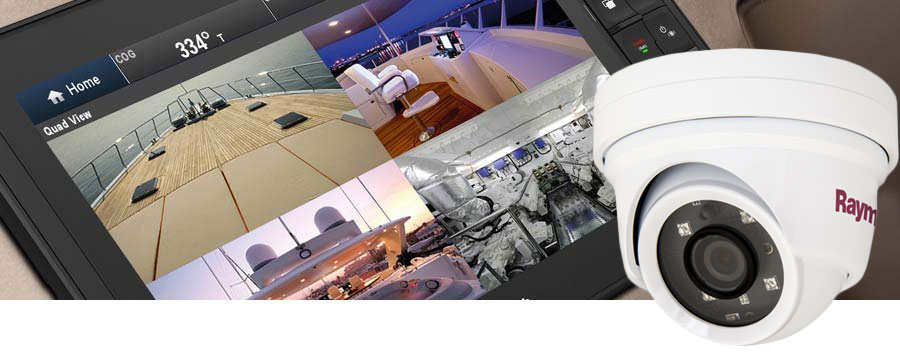

• Plug and play integration with Raymarine MFDs running Lighthouse II.
• Power over Ethernet (PoE) or direct 12v DC power supply.
• Simple mechanical frame allows the camera to be locked, rock steady, into position.
• High bright IR LEDs for operation in total darkness.
GENERAL SPECIFICATIONS
System
CPU: 32-bit ARM9 RISC CPU up to 432MHz;
Flash / SDRAM: 128MB / 128MB.
Camera
Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor);
Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel;
Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel;
S/N Ratio: More than 50dB;
Minimum Illumination: 0Lux (IR On);
IR Distance: 20M (4 Built-in High Power LED’s);
Day & Night: ICR;
Lens: 3.6mm Wide angle Megapixel Board Lens;
Field of View: Horizontal = 93.0 deg +/- 3 deg - Vertical = 51.0 deg +/- 3 deg.
Video
Video Compression: H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps;
Resolution: Up to 1920 x 1080 (Full HD);
Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution;
Video Streaming: Support multi stream with H.264, MJPEG - Adjustable frame rate -
CVBR/CBR in H.264;
Image Setting: Day & Night - Auto White Balance - Shutter Speed (1/4~1/2,000) - DSS - BLC - Brightness, Contrast, Sharpness, Mirror.
System Integration
Security: Password protection, User access log, HTTPS encryption;
Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP;
Intelligent Video: Motion detection up to 1920x1080 with 12x12 blocks.
Physical Features
Power Source: DC12V/1.5A, PoE (Power over Ethernet): 802.3af;
Power Consumption: Max. 5.4W with IR;
Net Weight: 230g (camera only);
LED's: Power, Network Connection;
Dimensions: 100mm(D) x 80mm(H);
General Operation Temperature: -10 degree~50 degree Celsius(14F~122F);
Storage Temperature: -20 degree~60 degree Celsius(-4F~140F).
IN THE BOX
1 CAM220 IP Camera Eyeball dome;
1 Waterproof Coupler
1 CAM220 Hardware Kit
1 CAM220 Mounting Template
1 CD (English)
1 Warranty Booklet
3 Serial Number Labels - Service.
Raymarine E70347
