Description

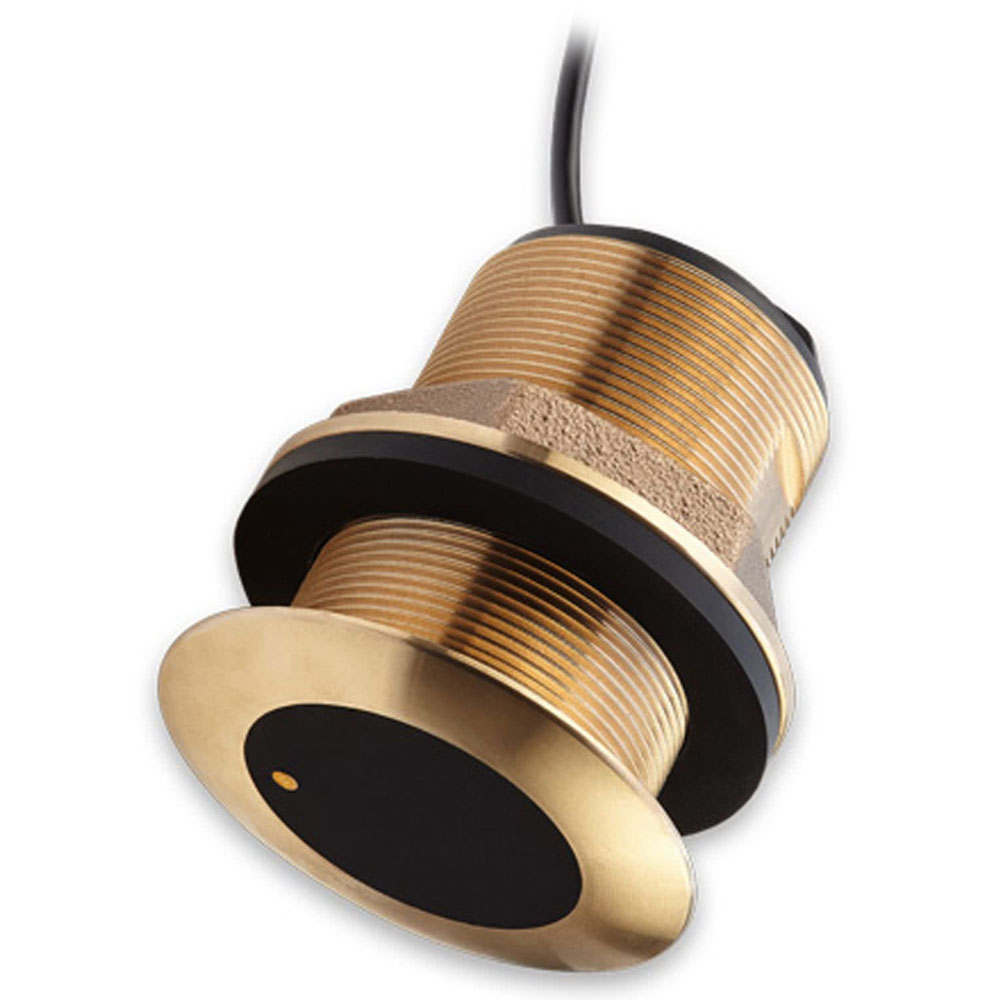

Raymarine CPT-S Through Hull Bronze Transducer with High CHIRP Conical teconology (NO Downvision) - For Element, CP100, AXIOM PRO-S & 7 DV and MFD xx8 (cable 10m - 9-pin). A80446.
High CHIRP Transducers for Raymarine Element S
Compatible with the CPT-S family of transom and through hull transducers
High CHIRP Transducers for Element S | Marine Electronics by Raymarine
Element S is compatible with the CPT-S family of transom and thru-hull transducers. The CPT-S provides high resolution sonar imagery in a small and inexpensive package. With a simple design, the CPT-S is easy to install, while still offering excellent performance at speed.
Specifications:
CPT-S 0°
Through Hull
Material: Bronze
Max Depth (Ft): FF: 900
Frequency (KHz): 200 kHz CHIRP
Beam Width: 25°
Records: Depth / Temperature
Hull Material: Fibreglass / Metal
Cable Length (Ft/M): 33 / 10
Deadrise Angles: 0-5°
