110W Cyclone Pro Open-Array Marine Radar with a 6-foot antenna array and two high-power output options, detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging, complete with 15m cable.
Price:
€10,077.99
Listing:
€11,583.90
You Save:
€1,505.91 (13%)

Description

Note: the article is available within 7 days from date of order.

Cyclone Pro Open-Array radar 110W with a 6-foot antenna array and two high-power output options

CYCLONE SOLID STATE OPEN ARRAY MARINE RADAR
The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open array radar give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radar deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. This model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.

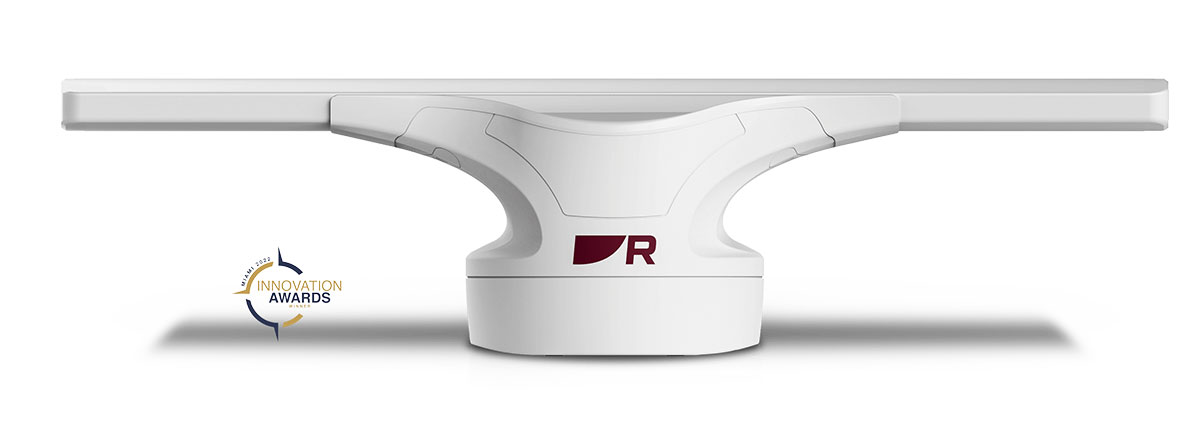

Aircraft wing inspired
Engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar.

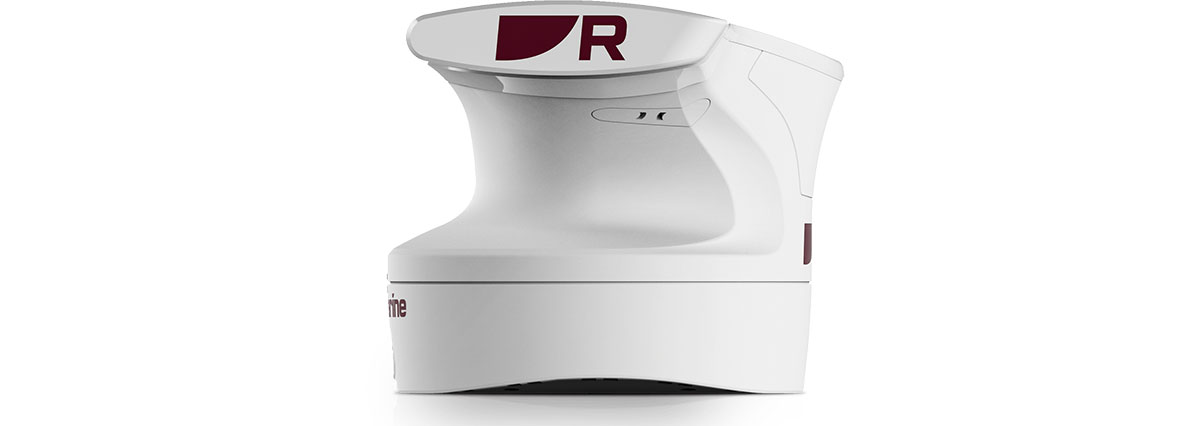

Low Profile
At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.

Clean Installation
Innovative pedestal design conceals cable connections for a cleaner installation. Built in cable gland to allow sleeker design configuration to boat designers.

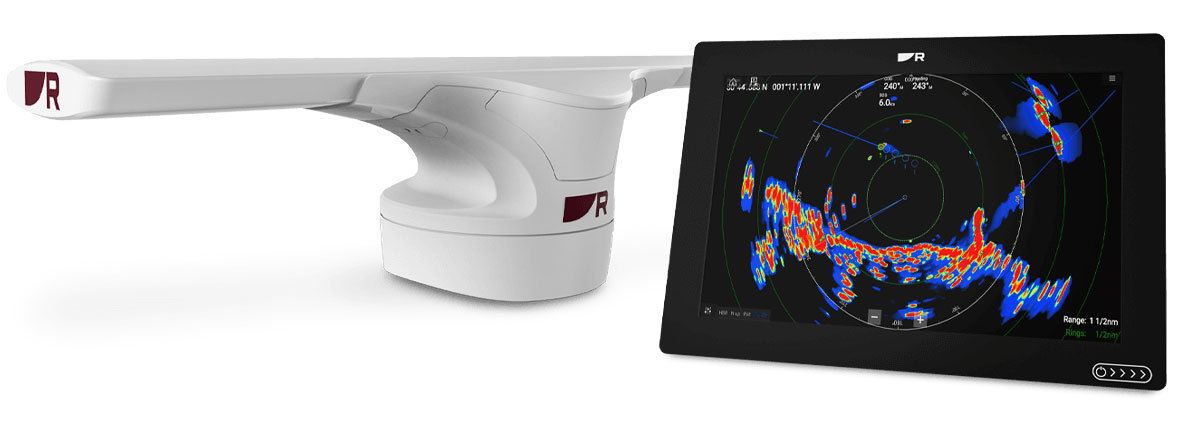

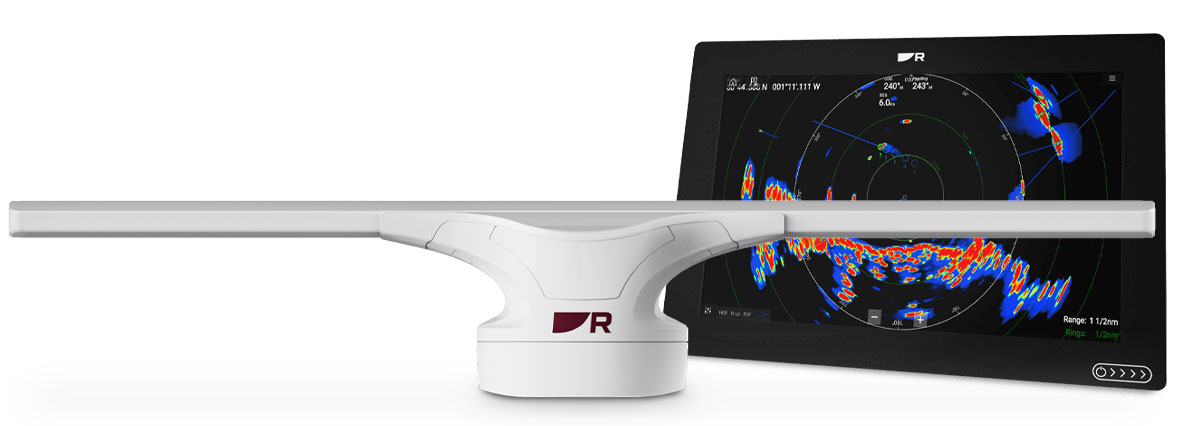

The Ultimate Situational Awareness
Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time.

Doppler Target Tracking
Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.

Professional Grade ARPA
Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.

Fishing Intelligence
Performance tuned for locating sea birds. Enhanced Cyclone Bird Mode uses CHIRP pulse compression technology to allow Cyclone to intelligently optimize gain and tune settings for imaging distant sea birds.

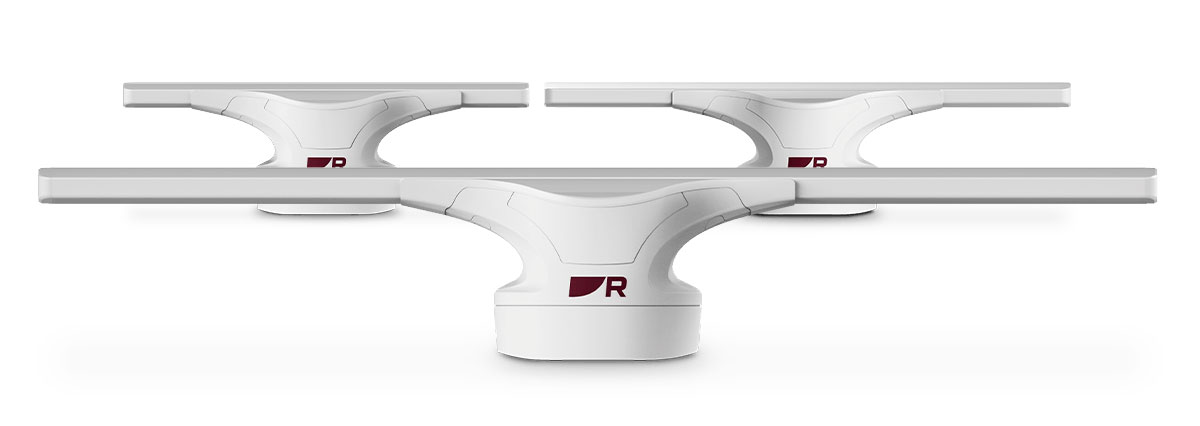

THE CYCLONE RANGE
Two levels of Cyclone performance to choose from: Cyclone & Cyclone Pro. Step up to Cyclone Pro for increased power and improved long range target recognition.

GENERAL SPECIFICATIONS
Model: CYCLONE Pro 110 Watt (12 kW Magnetron equivalent);
Antenna Size: 6 Foot Array;
Max Range Scale: 96 Nm;
Rotation Speed: 12/24/36/48/60 rpm;
Boot Up time: 40 seconds;
Standy to Transmit: Less than 5 seconds;
Power Connection: 1x Power connector;
Data Connection: 1x RayNet connector;
Transmitter Frequency: 9370, 9400, 9430 MHz (User Selectable);
Receiver Characteristic: Linear;
Receiver Noise: Less than 5 dB.
POWER SPECIFICATIONS
Peak Power Output: 110 w;
Supply voltage (Using VCM100):
- Nominal: 12 V dc or 24 V dc;
- Minimum: 10.2 V dc;
- Maximum: 31.2 V dc;
Power Consumption (Typical): 95 W;
Power Consumption (Max): 195 W;
Power Consumption (Standby): 30 W.
ANTENNA/BEAM SPECIFICATIONS
Antenna: 6 Ft;
Beamwidth (vertical): 25°;
Beamwidth (horizontal): 1.32°;
Polarization: Horizontal;
Length: 1945 mm / 76.57 in;
Weight: 12 Kg / 26.45 lb.
SPECIFICHE DELLA BASE RADAR
Sizes: 388x360x335 mm / 15.27 "x14.17" x13.18 "(to the top of the antenna);
Weight: 16 Kg.
ENVIRONMENTAL SPECIFICATIONS
Waterproof Rating: IPX6;
Operating Temperature Range: -25°C to +55°C (-13°F to 131°F);
Humidity: Up to 93% at 40°C (104°F);
Maximum Wind Speed: 100 Kts.

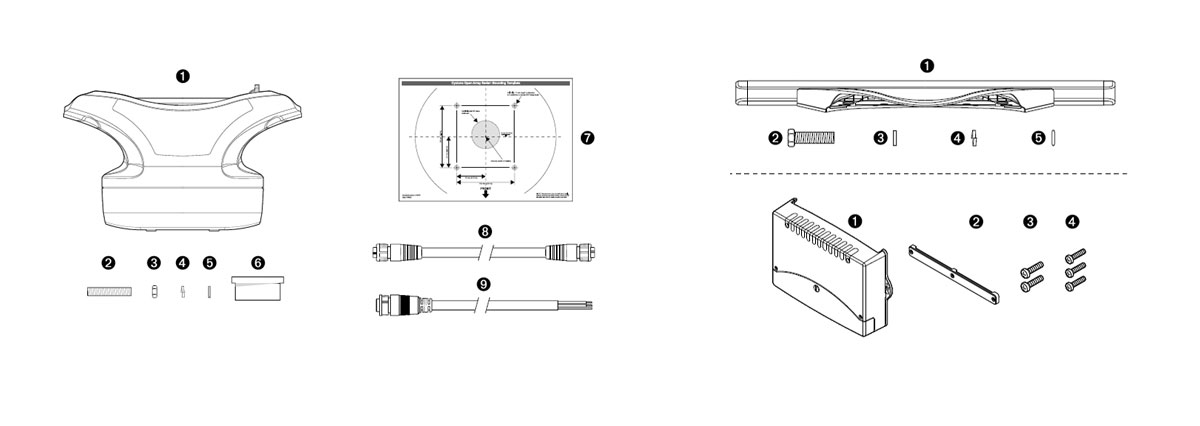

WHAT'S IN THE BOX
PEDESTAL:
1     Pedestal
2     M10 Stud x4
3     M10 Nut x8
4     M10 Spring Washer x4
5     M10 Plain Washer x4
6     Mounting Gasket
7     Mounting Template
8     Radar Data Cable
9     Power Cable
ANTENNA:
1     Antenna
2     Threaded Alignment Guide
3     Washer
4     Spring Washer
5     Nut
VCM
1     VCM100
2     Cable Clamp
3     VCM100 Mounting Screw x2
4     Cable Clamp Mounting Screw x3

Model Raymarine T70495.
