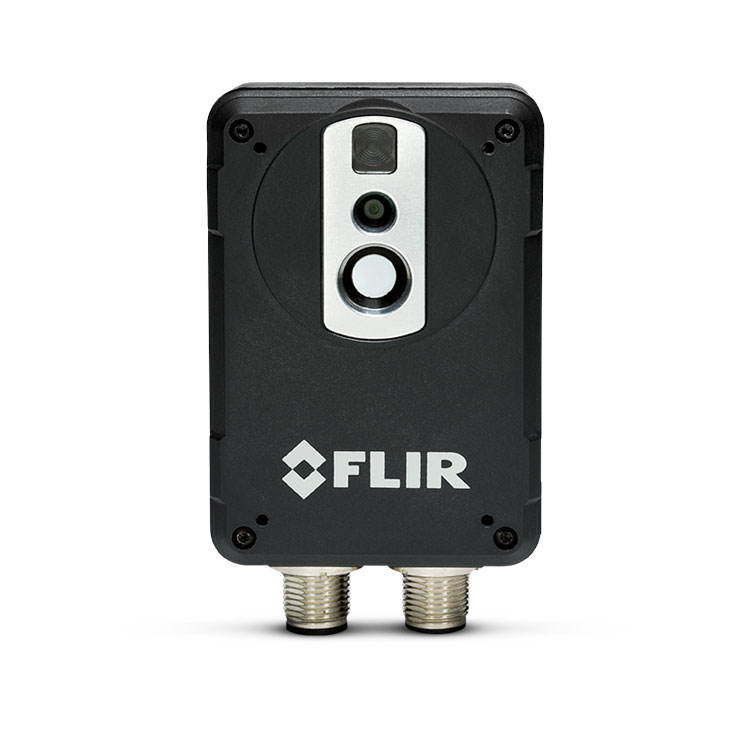

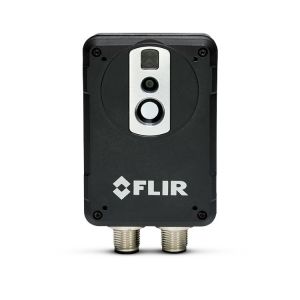

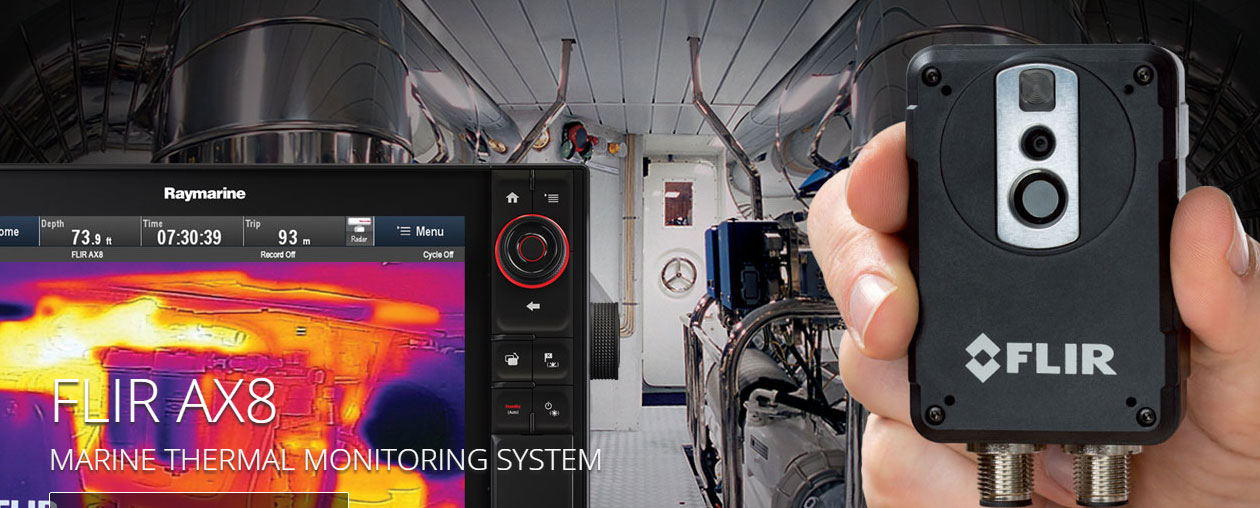

The FLIR AX8 thermal monitoring camera watches critical equipment on your vessel, including engines, exhaust manifolds, and shaft bearings, to spot problems before you're stranded on the water. The AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds. Featuring FLIR’s MSX® imaging, which blends imagery from visible and thermal cameras, the FLIR AX8's detailed imagery is easier to understand.

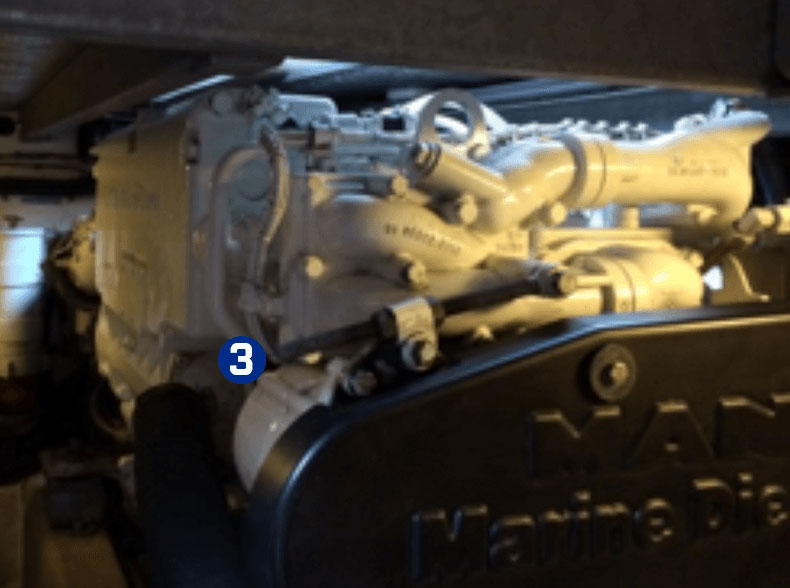

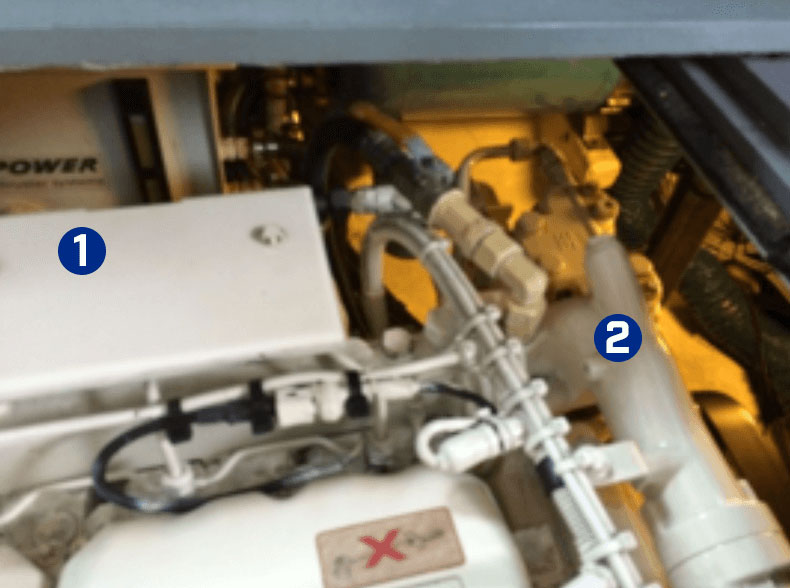

Spot potential problems before they happen

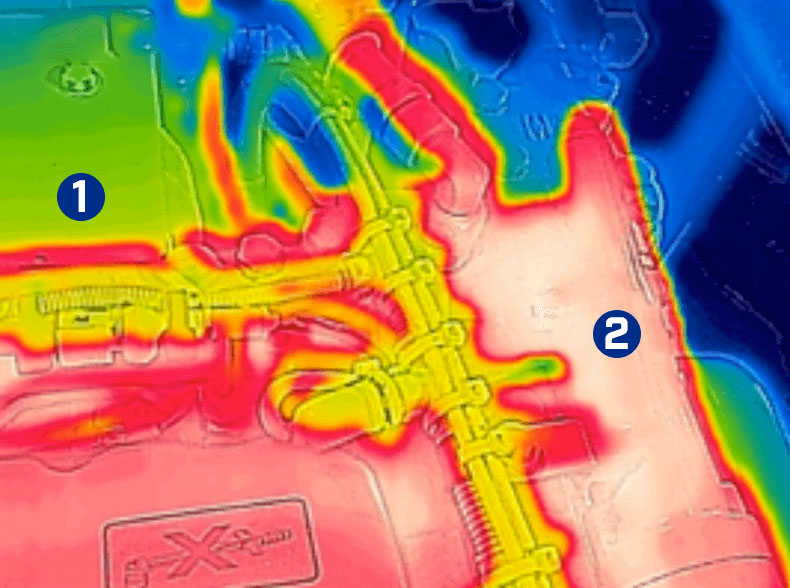

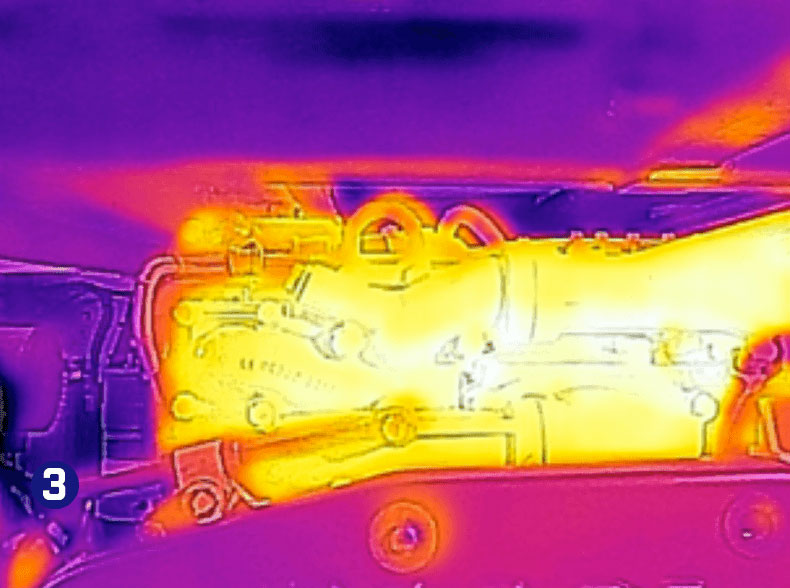

FLIR's Exclusive Multi-Spectral Dynamic Imaging (MSX®) creates thermal imaging that is easier to understand.
Thermal Alarming and Visual Analysis
Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds.
Raymarine Integration
View thermal, visible, and MSX video imagery on Raymarine LightHouse II™ MFDs.
SPECIFICATIONS
GENERAL:
- Alarm Functions: Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set;
- Alarm Output: Digital Out, store image, file sending (ftp), email (smtp), notification;
- Camera size (L x W x H): 54 x 25 x 79 mm (2.1 x 1 x 3.1 in.) w/o connectors; 54 x 25 x 95 mm (2.1 x 1 x 3.7 in.) w/ connectors;
- Color palettes: Color palettes (BW, BW inv, Iron, Rain);
- Detector Type: Focal Plane Array (FPA) Uncooled Microbolometer;
- Field of View: 48° x 37°;
- Packaging: Infrared camera with lens, printed documentation, user documentation CD-ROM, cooling/mounting plate, POE injector, Camera PoE Cable, Raymarine RayNet Ethernet cable;
- Packaging Size: 210 x 142 x 70 mm (8.27 x 5.59 x 2.76 in.);
- Set-up Commands: Data / Time, Temperature °C/°F;
- Spectral Range: 7.3-13µm;
- Web interface: Yes.
Connections & Communications
- Ethernet: Control, result and image;
- Ethernet Connector Type: M12 8-pin X-coded;
- Ethernet Power: Power over Ehternet, PoE IEEE 802.3as class 0
- Ethernet Protocols: Ehternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)
- Ethernet Standard: IEEE 802.3;
- Ethernet Type: 100 Mbps;
- Ethernet Video Streaming: Yes;
- Storage Media: Built-in memory for internal storage.
Environmental
- Atmospheric transmission correction: Automatic, based on inputs for distance, atmospheric temperature and relative humidity;
- Bump: 25 g (IEC 60068-2-29) / 2 g (IEC 60068-2-6);
- EMC: EN 61000-6-2:2001 (Immunity) | EN 61000-6-3:2001 (Emission) | FCC 47 CFR Part 15 Class B (Emission) | EN 60945:2002 | EN60945 (Electromagnetic Compliance);
- Emissivity Correction: Variable from 0.01 to 1.0;
- Encapsulation: IP67 (IEC 60529);
- Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles;
- Operating Temperature Range: 0°C to +50°C (32°F to +122°F);
- Storage Temperature Range: –40°C to +70°C (–40°F to +158°F) IEC 68-2-1 and IEC 68-2-2;
- Vibration: 2 g (IEC 60068-2-6); EN 60945:2002;
- Ignition Protection: EN 28845:1993.
Marine Imaging & Optical
- Automatic Image Adjustment: Continuous;
- Focus: Fixed;
- Image Modes: Thermal, Visual, MSX (IR-image with enhanced detail presentation);
- Image Streaming Formats: Motion JPEG, MPEG, H.264;
- Image Streaming Resolution: 640x480;
- IR Resolution: 80x60 pixels.
Measurement & Analysis
- Accuracy: +/-2°C (+/-3.6°F) or +/-2% of reading (+10 to +100C@+10 to +35amb);
- Area: 6 Boxes with max. / min. / average;
- External Optics & Windows Correction: Automatic, based on input of optics / window transmission and temperature;
- Measurement Corrections: Global Object Parameters;
- Measurement Presets: Yes;
- Object Temperature Range: -10°C to +150°C (14°F to 302°F);
- Optics Transmission Correction: Automatic, based on signals from internal sensors;
- Reflected apparent temperature correction: Automatic, based on input of reflected temperature;
- Spot Meter: 6.0;
- Thermal Sensitivity/NETD: <0.10°C @ +30°C (+86°F) / 100mK.
Power
- External Power Connector Type: Screw Connection (12V/0V/Chassis);
- External Power Operation: 12/24VDC, 2W continuously / 3.1W absolute max;
- Voltage Allowed Range: 9-36VDC.
Storage Media
- File Formats: Jpeg + FFF;
- Image Storage Mode: IR, Visual, MSX.
User Interface
- Multifunction Displays: Network compatible with Raymarine LightHouse II multifunction displays.
Visible Camera
- Built-in Digital Camera: 640x480;
- Digital Camera FOV: Adapts to the IR lens;
- Sensitivity: Minimum 10 Lux without illuminator.
