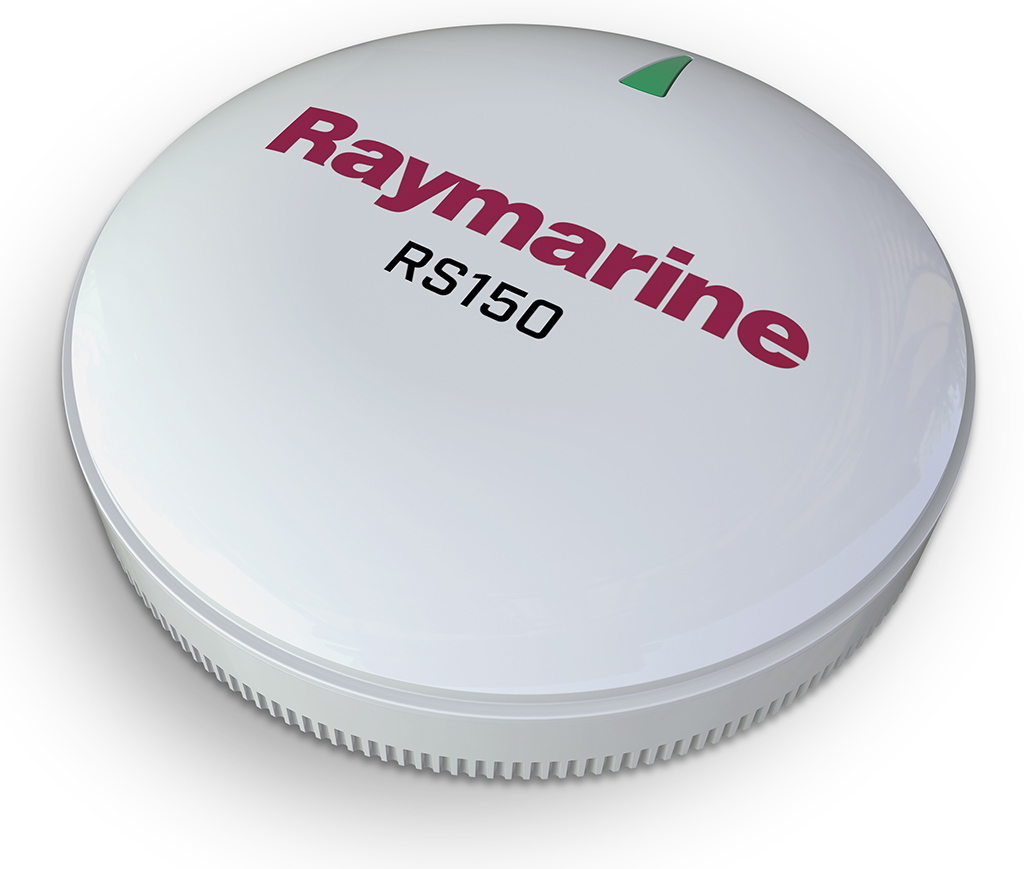

RS150 GPS Sensor
The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

RS150 Key Features
- 72-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
- A GNSS receiver with GLONASS compatibility
- Low power consumption: 30mA (1 LEN)
- SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
- Designed for low profile surface mounting or optional pole mounting

Specifications:
Nominal supply voltage: 12V D.C. Powered by N2K bus
Operating voltage range: 8 - 32V DC
Power consumption: 30 mA max (NMEA LEN = 1)
Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
Relative humidity: max 93%
Waterproof: IPx6/7
Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
Sensitivity: High sensitivity - acquisition down to -163dBm
No. of channels: 72
Positioning System: GPS & GLONASS
Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
Differential acquisition: Automatic
Position accuracy (95%): <15m
Position accuracy with SDGPS (95%): <5m
Speed accuracy (95%): <0.3kt
Time to first fix from cold start: <2 minutes (< 45 seconds typical)
Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
Geodetic Datum: WGS84
Mounting: Surface/rail/pole

Raymarine E70310.
