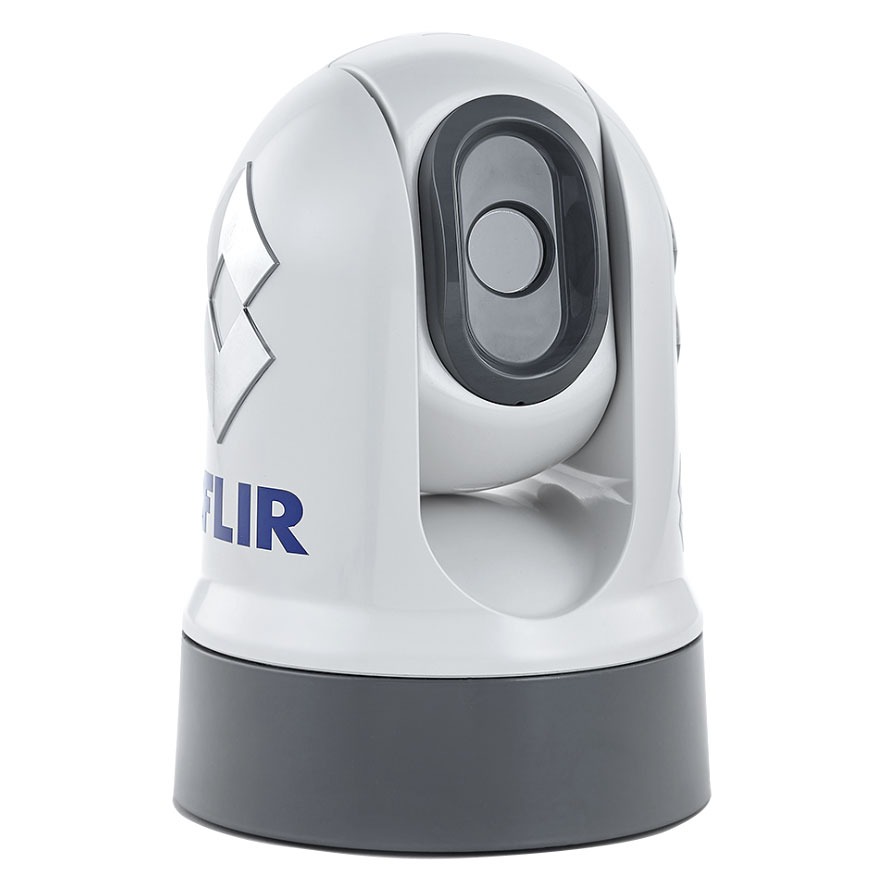

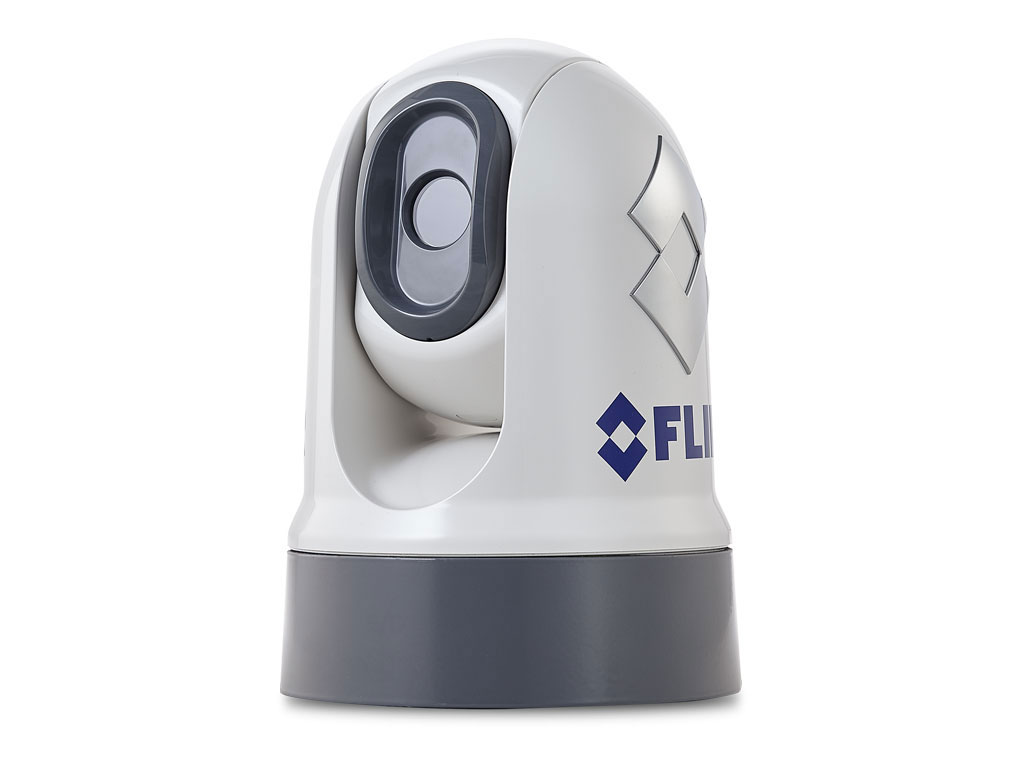

The M232 pan and tilt camera is one of FLIR's smallest and affordable marine thermal cameras. Featuring a resolution of 320 × 240, the M232 improves safety by revealing vessels and obstacles at night. Enjoy 360 degree viewing while underway. Combine the M232 with a Raymarine Axiom MFD and take advantage of FLIR ClearCruise™ thermal analytics. ClearCruise provides audible and visual alerts when "non-water" objects such as boats, obstacles, or navigation markers are identified in the scene
Make Navigation Safer

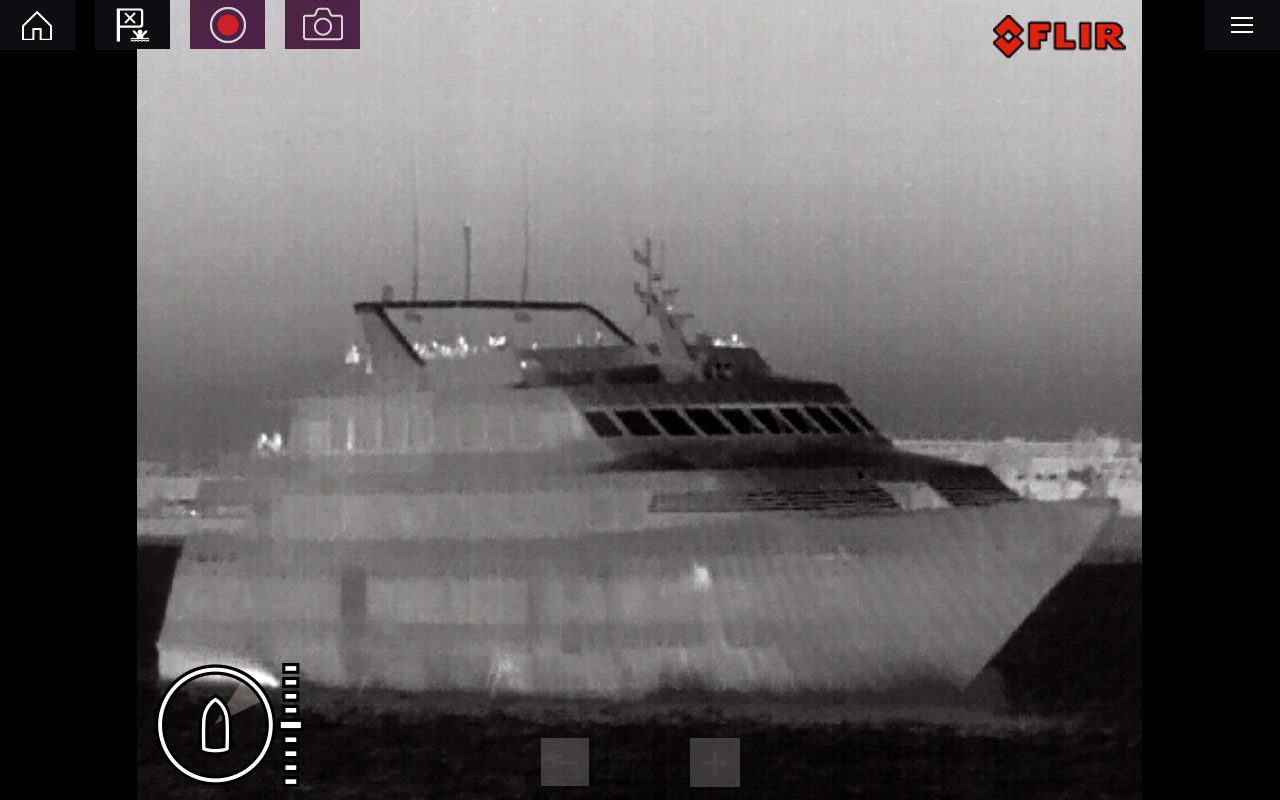

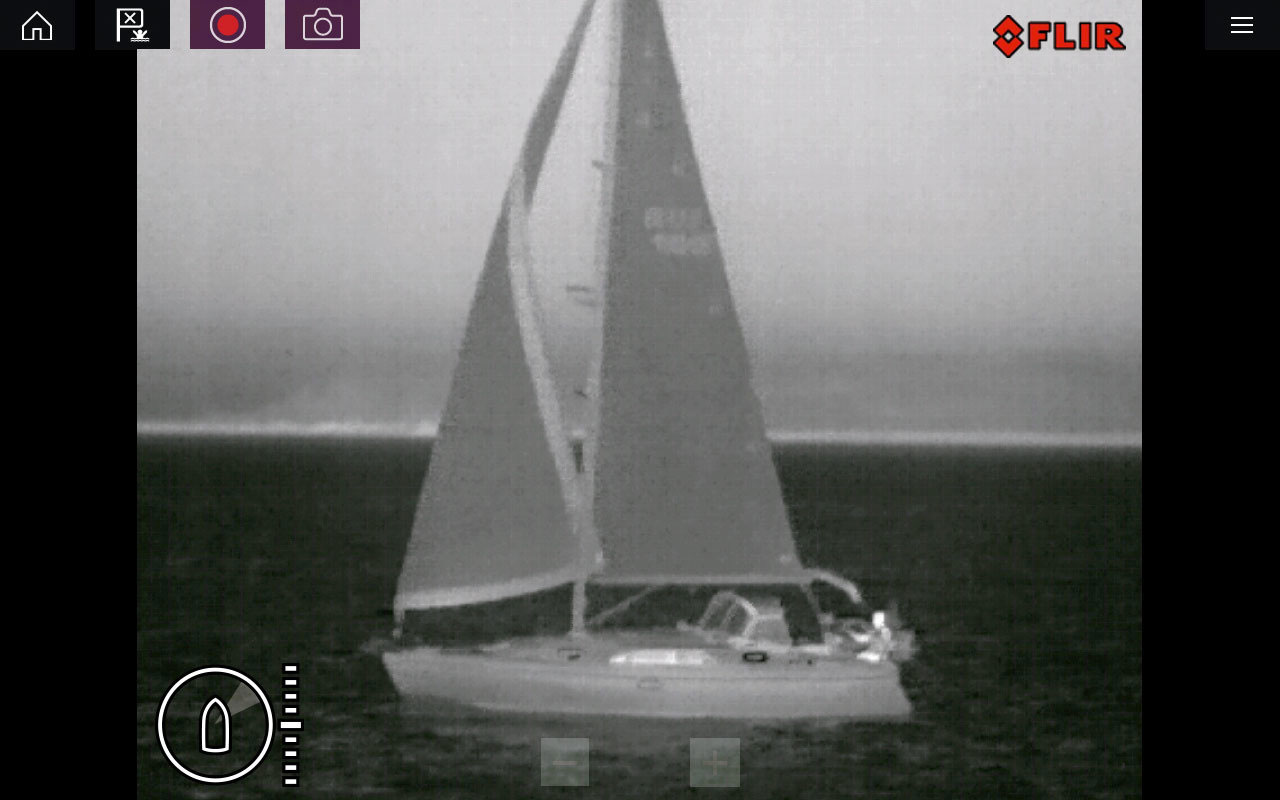

The M232 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day. The M232 also helps boaters find people in the water faster than using spotlights and radar alone.
Optimized Viewing
M232 features a full 320x240 resolution for optimal horizon-to-horizon viewing and 4X continuous e-zoom.

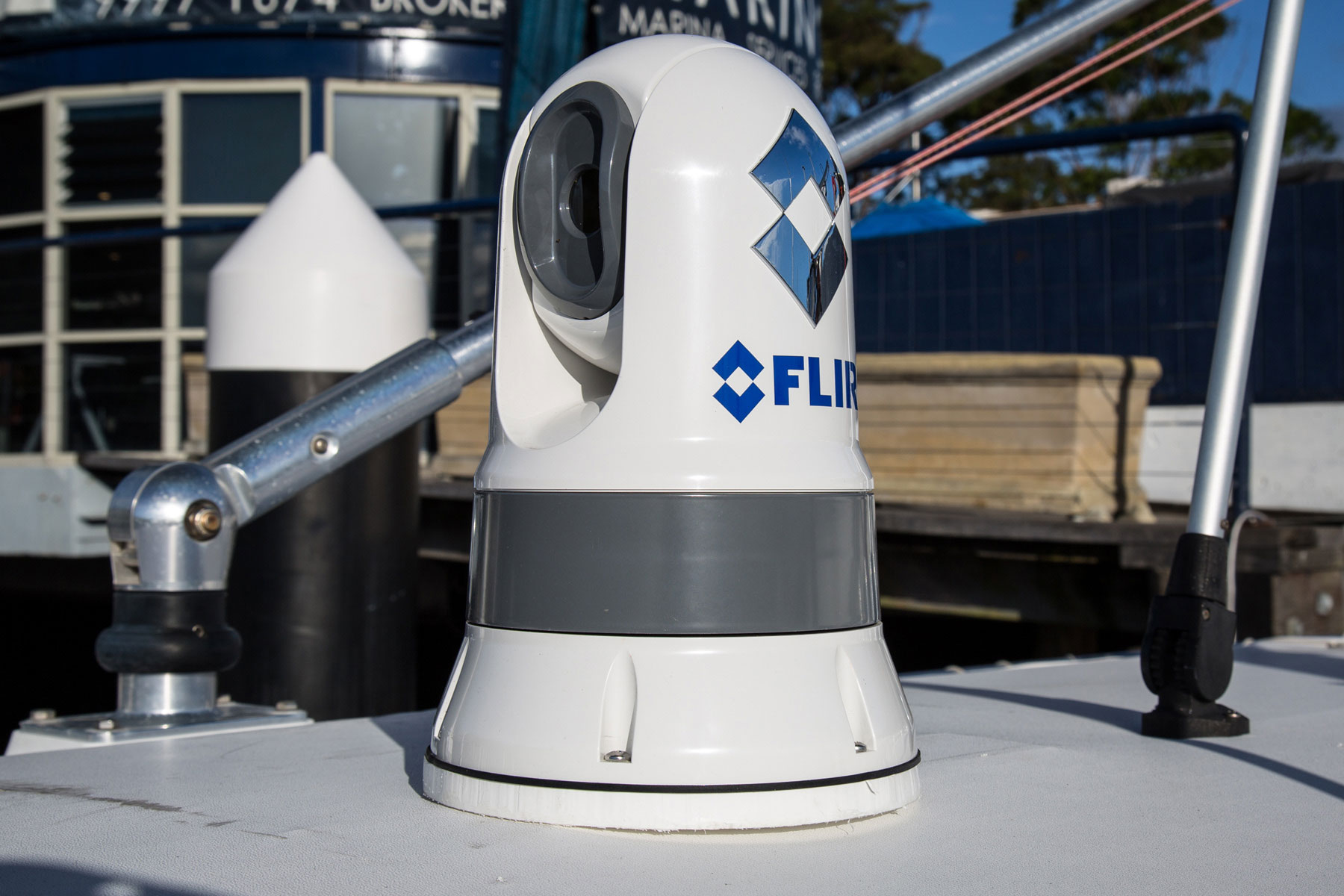

Easy to Install on Any Vessel
The combination of the M232’s small, lightweight design and IP video connectivity make it a snap to install and integrate with multiple MFDs.
Enhanced Awareness With ClearCruise™

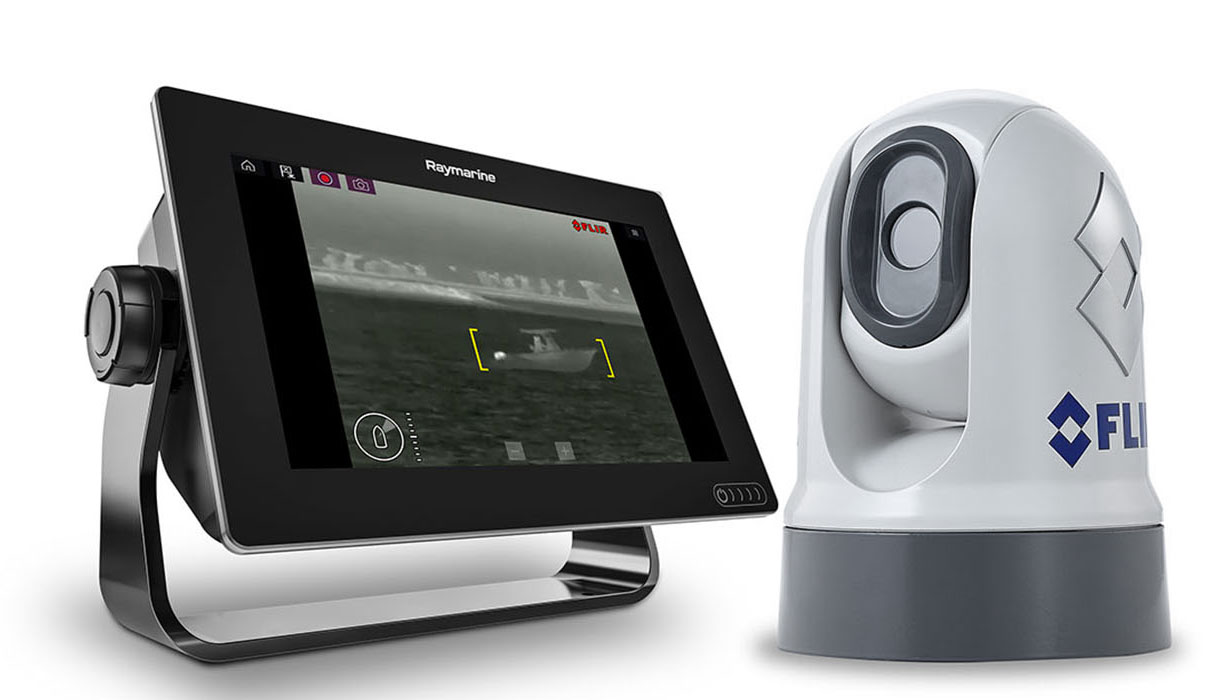

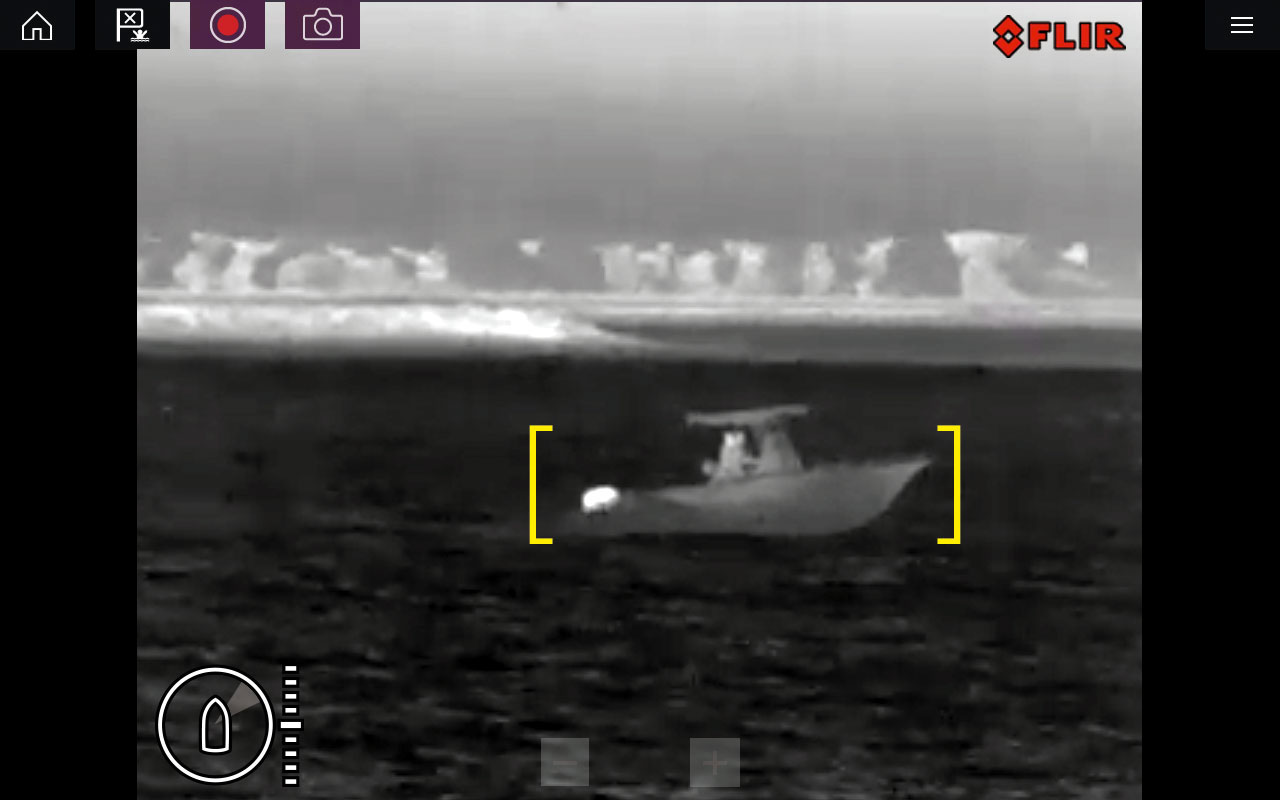

Combine the M232 with a Raymarine Axiom MFD and take advantage of FLIR's ClearCruise™ intelligent thermal analytics. ClearCruise™ provides audible and visual alerts when "non-water" objects—such as boats, obstacles, or navigation markers—appear in the scene. This enhances boaters’ overall situational awareness, both day and night.
SPECIFICATIONS GENERAL
- Detector Type: 320 x 240 VOx Microbolometer;
- E-Zoom: 2x;
- Field of View: 24° x 18°;
- Image Processing: FLIR Propriety Digital Detail Enhancement™;
- Size: 6.34 (dia.) x 9.03 in (ht.) 161.1 (dia.) x 229.3 mm (ht.);
- Pan/Tilt Range: Pan: 360° (continuos), Tilt: +110°, -90°;
- Weight: 6.0 lb (2.7 kg) w/o top-down riser 6.6 lb (3.0 kg) w/ top-down riser.
Color Camera
- Resolution: 320 x 240.
Connections & Communications
- Video Output: H264 IP Video stream.
Environmental
- Drop Test Rating: 1m drop (in packaging);
- EMI: IEC 60945;
- Operating Temperature Range: -13°F to +131°F (-25°C to +55°C);
- Ratinge: IP-67;
- Relative Humidity: 93% max;
- Salt Mist: IEC 60945;
- Storage Temperature Range: -22°F to +158°F (-30°C to +70°C);
- Vibration: IEC 60945; MIL-STD-810E;
- Wind: 100 mph (161 kph).
Marine Imaging & Optical
- Video Refresh Rate: 9 Hz.
Power
- Power Consumption: 15 W (typical) 18 W (max);
- Power Requirements: 12 or 24 VDC.
Range Performance
- Person in the Water: ~1,500 ft (457 m);
- Small Vessel: ~0.67 nm (1.3 km).
Raymarine E70354
