CHIRP pulse compression technology

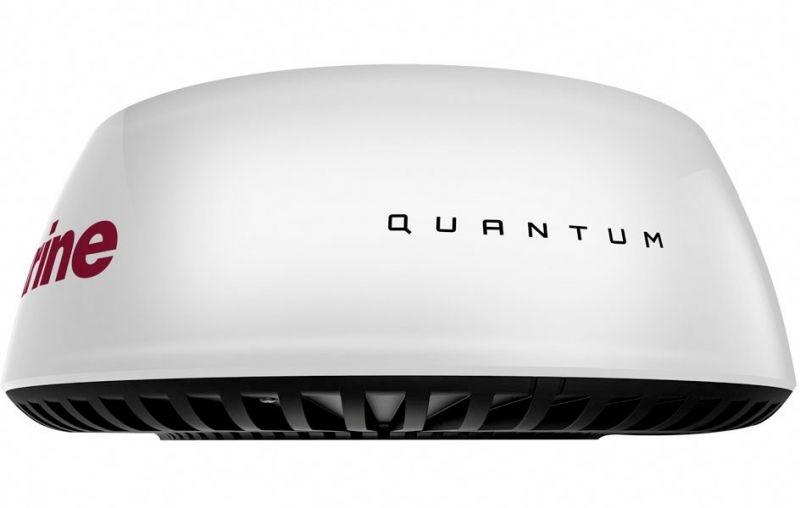

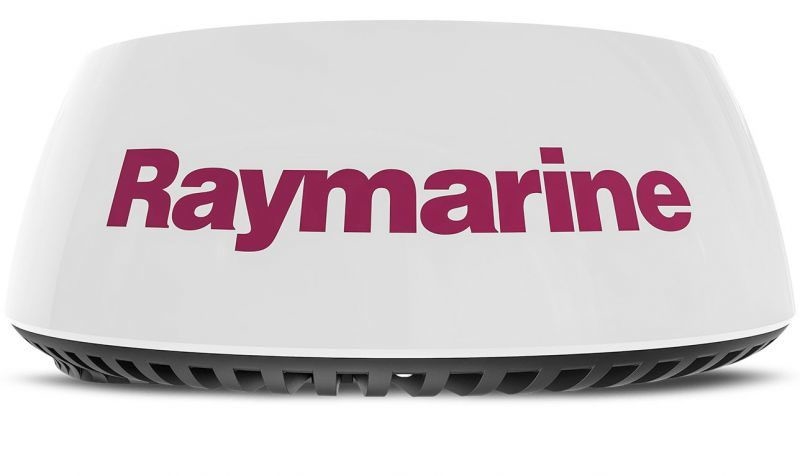

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Key Features
• 10m power cable included.
• Wi-Fi Connection to MFD.
• Superior Radar Imaging.
• CHIRP Pulse Compression.
• Small Target Detection.
• Simplified Installation.
• Energy Efficient.
• Lightweight Design.
Superior Radar Imaging
FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.
1 Quantum Radar.
2 Ordinary magnetron radar.
CHIRP Pulse Compression

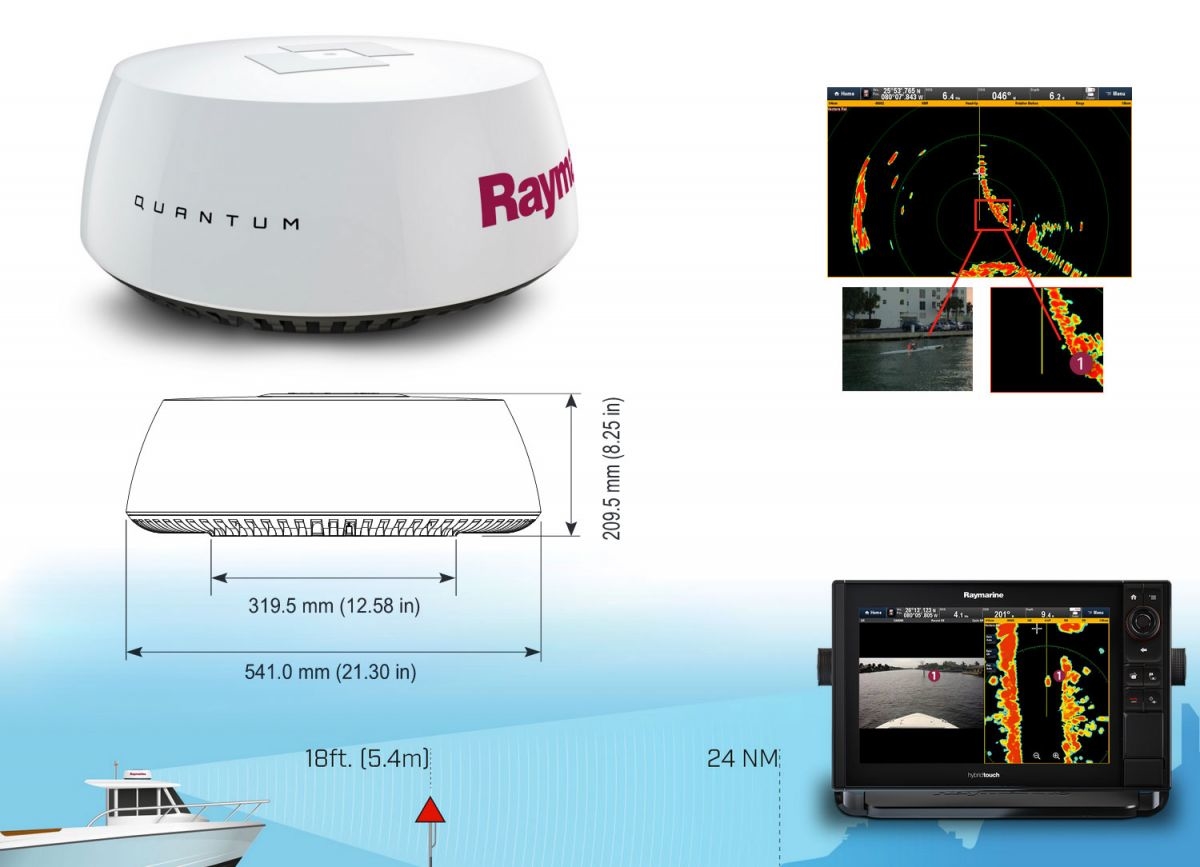

• Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range.
• CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.
• Day marker target at close range.
Small Target Detection
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.
• Quantum detects the small kayak very close to the waterfront bulkhead.
Immediate Awareness
Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.
Simplified Installation
• Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD.
• Quantum’s small diameter power cable is easy to route through tight spaces.
• Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.
Energy Efficient and Lightweight Design
• Weighs 50% less than traditional magnetron radars.
• Safe Emissions thanks to Quantum’s low power solid state radar transmitter.
• Very low power consumption (17 Watts transmit and 7 watts standby).
• Extended vessel battery life when under sail.
Quantum™ CHIRP Radar Specifications:
Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V);
Networking: Wi-Fi or wired Ethernet (RayNet);
Antenna Type: Patch Array;
Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W;
Range: Scales From 1/16 to 24 nautical miles;
Transmit Frequency: 9354 to 9446 MHz;
Peak Power Output: 20W;
Duplexer: Circulator;
Pulse Widths (3 dB): 40 ns to 14.7 μs;
CHIRP Lengths: 400 ns to 20 μs;
CHIRP Bandwidth: Up to 32 MHz;
IF Bandwidth: 26 MHz;
Noise: Less than 4 dB;
Max. Range Scale: from 1/16 to 24 nautical miles;
Beamwidth (nominal): 4.9º horizontal and 20º vertical;
Polarisation: Horizontal;
Waterproofing: IPX6;
Weight: 5.6 kg (12.3 lb).
Raymarine E70210 model
