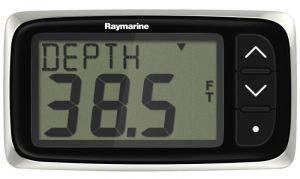

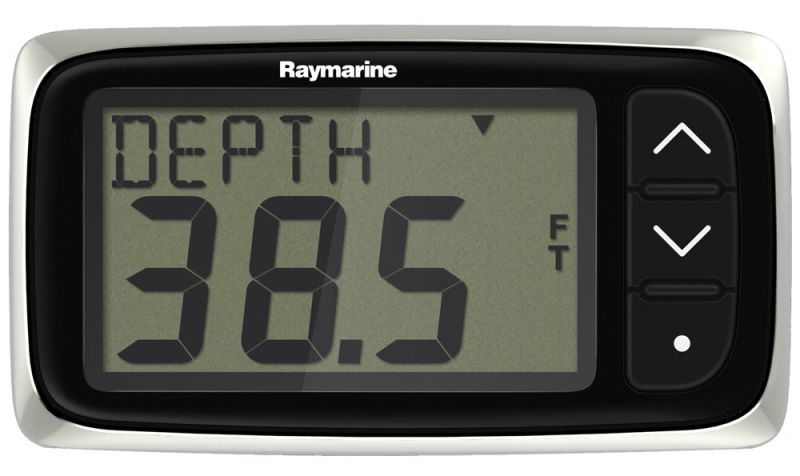

Compact digital display Depth Raymarine i40
Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted.
Easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions.

Key features:
• Red backlighting for improved visibility
• Large controls for ease of use at sea
• Low power consumption for increased battery life
• SeaTalk interface (SeaTalkng when used with SeaTalk converter)
• Built-in transducer interface
• Same footprint as the older Raymarine ST40 instrumentation
• Crystal clear depth readout
• Shallow and deep anchor alarms
• Minimum depth display

Technical features:
Nominal voltage: 12V DC;
Operating voltage range: 10 - 16V DC;
Current consumptions (12V supply) typical: 30 mA;
Current consumptions (12V supply) maximum: 100 mA;
Operating temperature: 0ºC to +55ºC;
Storage temperature: -30ºC to +70ºC;
Relative humidity: up to 93%;
Water proofing: IPX6;
Connections: SeaTalk, Transducer connections. Compatible with marine industry CAN systems;
Conformance: Europe 2004/108/EC.

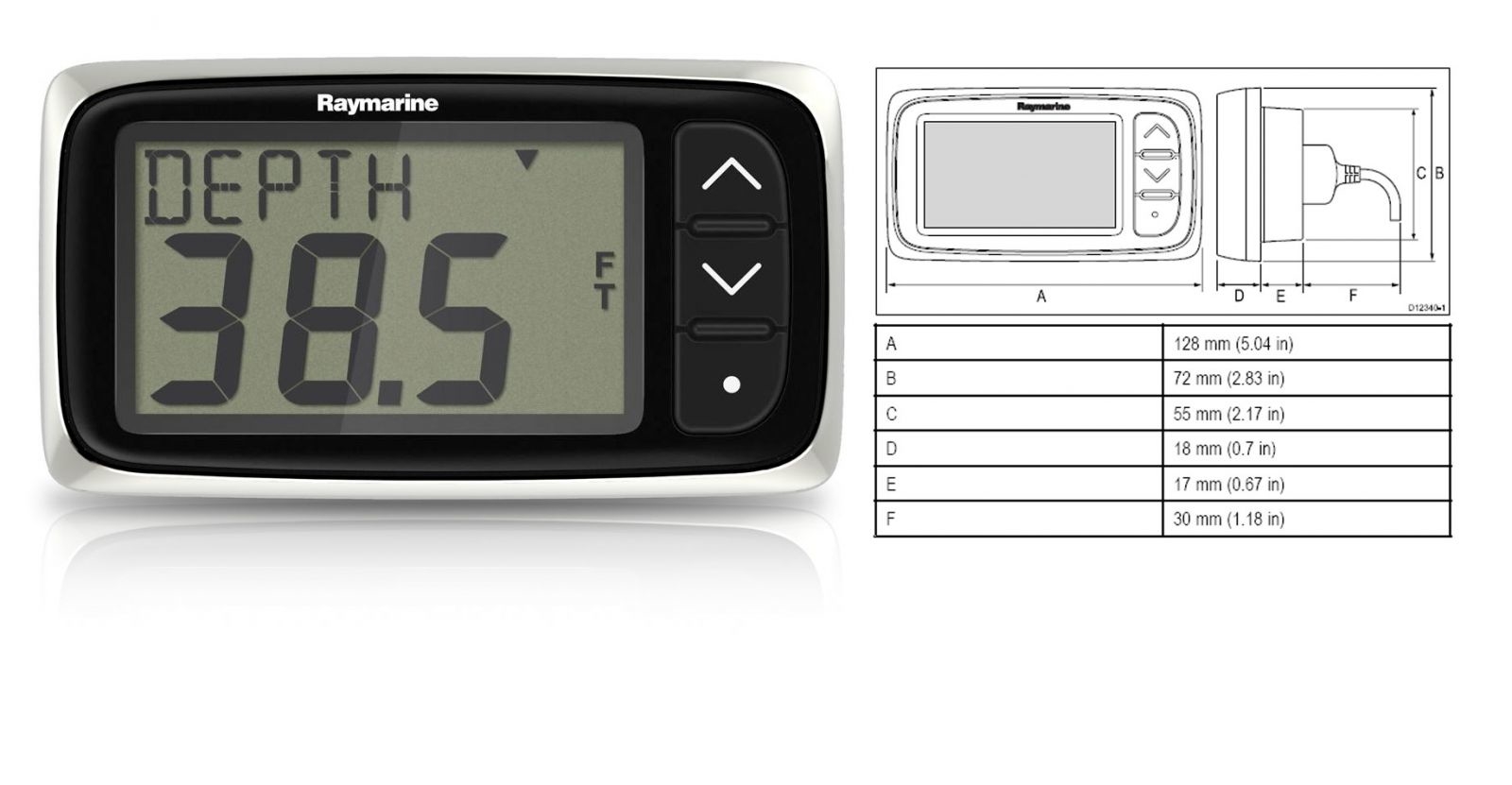

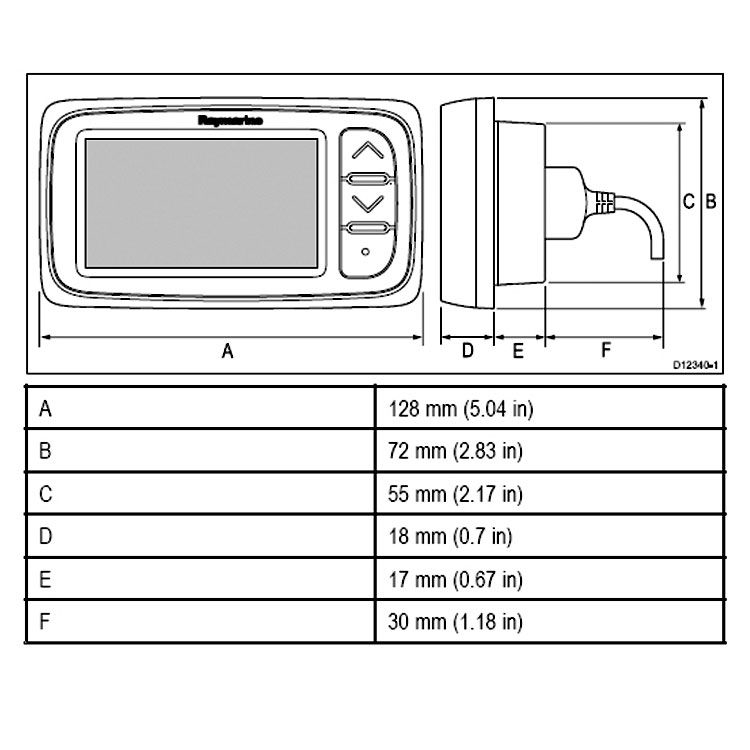

Dimensions (see photos):
A= 128 mm (5.04 in);
B= 72 mm (2.83 in);
C= 55 mm (2.17 in);
D= 18 mm (0.70 in);
E= 17 mm (0.67 in)
F= 30 mm (1.18 in).
Raymarine E70064 code.
