The perfect solution for smaller power boats, yachts and rigid inflatables!!
The i50 instruments are designed to complement Raymarine's latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit.
Excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.
Key Features
- Large numerals and digits
- Red back lighting for enhanced night time visibility
- SeaTalk and SeaTalkng interfaces
- NMEA 2000 (compatible) interface
- Built-in transducer interface

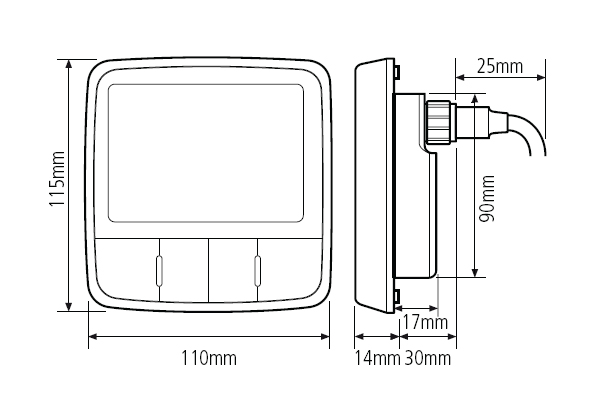

- 110mm x 115mm footprint
- Low power consumption
- Multiple data source support eliminates potential data conflicts
- Front mounted design for simple installation

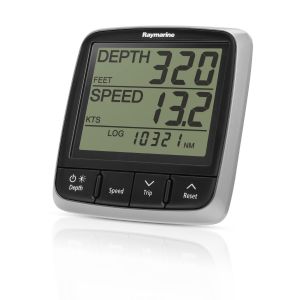

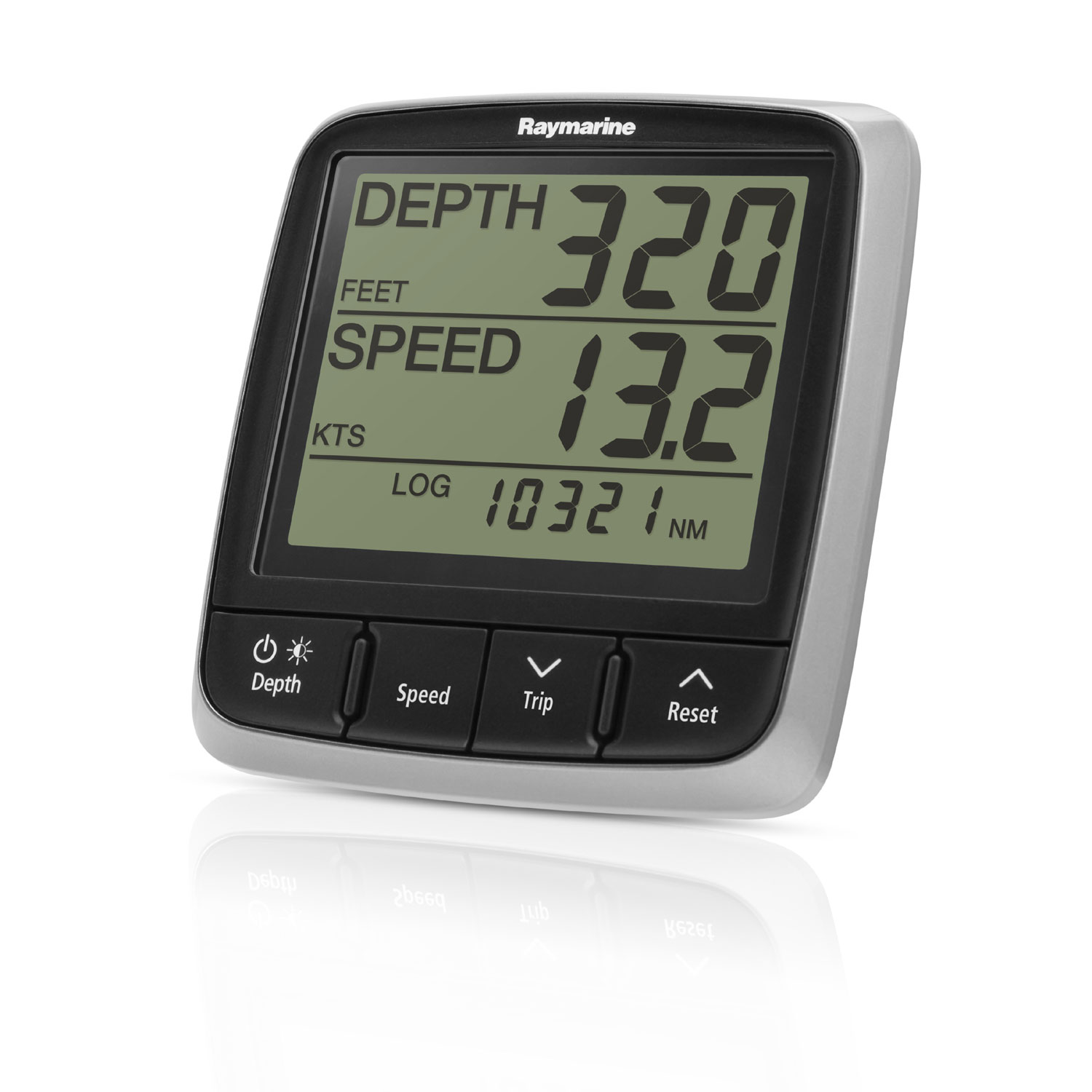

Raymarine i50 Tridata Digital Instrument Display. Raymarine code E70060.
i50 Tridata:
- Combines depth and speed data
- Easy to read 3-line display, dedicated depth and speed displays
- Trip/log, sea temperature and SOG
Technical features:
Nominal Voltage: 12V DC
Operating Voltage Range: 10 - 16V DC
Power Consumption: typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature range: -20ºC to +55ºC
Storage Temperature: -30ºC to +70ºC
Relative Humidity: up to 93%
Waterproofing standard: IPX6
Connections: 2 x SeaTalkng and transducers
Compatible with marine industry CAN systems
Conformance: Europe 2004/108/EC

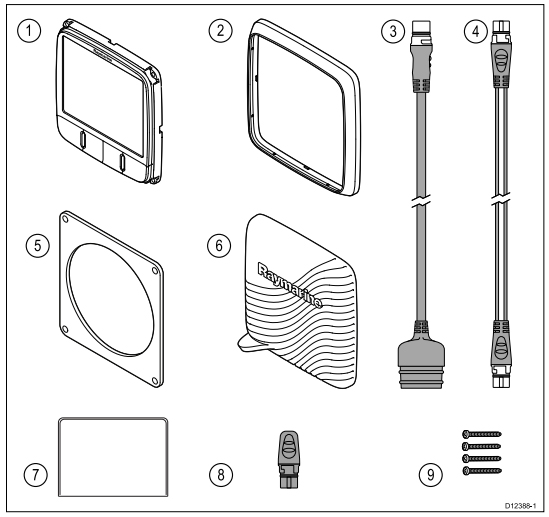

In the box:
- i50 instrument
- Front bezel
- SeaTalk to SeaTalkng adaptor cable
- SeaTalkng spur cable
- Gasket
- Sun cover
- Documentation pack
- SeaTalkng blanking plug
- 4 x fixing screws
