Note: the article is available within 7 days from date of order.
Includes i50 Depth, i50 Speed & i60 Wind Instrument Displays with Transducers Functions: Speed, Trip, Log, Wind Speed / Angle, Depth, Wind and Depth Alarms Display: i50 Monochrome LCDs with 1.1" Digits, i60 with Analog Wind Dial.
Features:
• Complete depth, speed and wind systems package with instrument displays, transducers, cables and components required for operation;
• Functions include:
- Depth trend indicator;
- Minimum / maximum depth;
- Audible shallow / deep water and anchor alarms;
- Speed through the water;
- Speed over ground (SOG);
- Velocity made good (VMG);
- Trip / log;
- Sea temperature;
- Apparent wind direction;
- True wind speed and direction;
- Tack;
- Alarms for high / low wind angle, max. / low true wind speed;
• Designed to complement Raymarine's new generation multifunction displays;
• Large numerals and digits, red backlighting for outstanding visibility in all lighting conditions;
• Excellent viewing angles and large push-button controls for ease of use at sea;

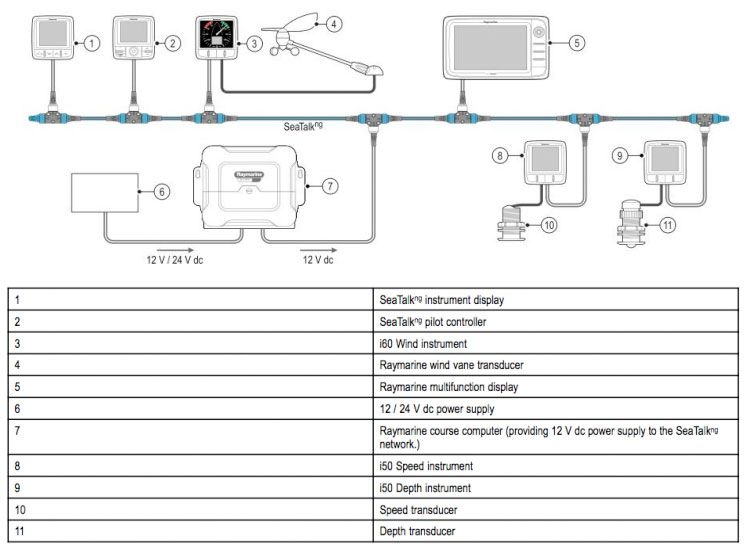

• SeaTalk, SeaTalkng and NMEA 2000-compatible interfaces;

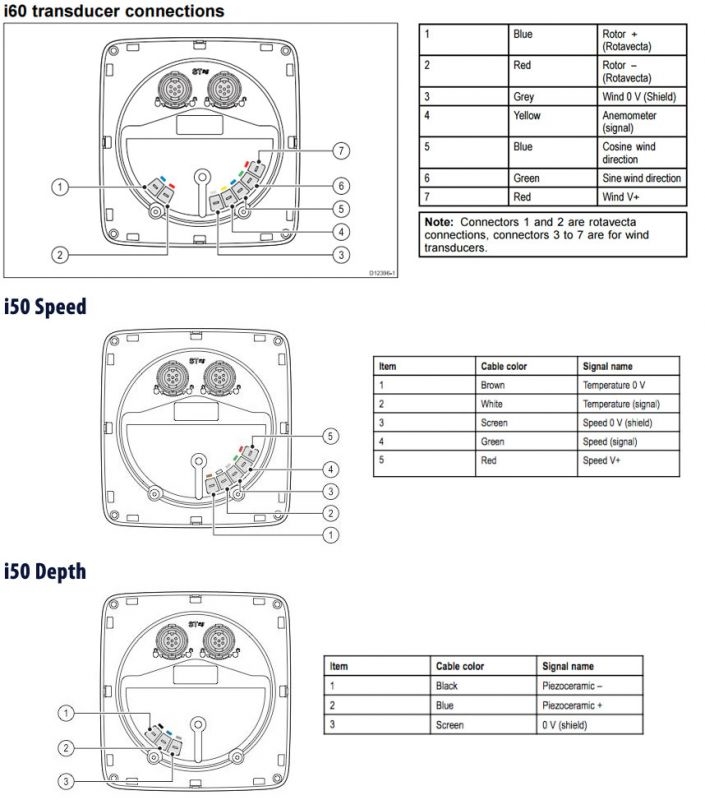

• Built-in transducer interface;
• Low power consumption for longer battery life;
• Multiple data source support eliminates potential data conflicts;
• Front-mounted design for simple installation;
• Same footprint as the older Raymarine ST50 (i50 Depth, i50 Speed) and ST60+ (i60 Wind) instrumentation;
• Supplied with waterproof gaskets for flush mounting, clip-on front bezels, SeaTalkng blanking plugs, SeaTalkng spur cables, SeaTalk to SeaTalkng converter cables, protective sun covers;
• 2-Year limited warranty (upgradable to 3 years upon product registration within 90 days of purchase);

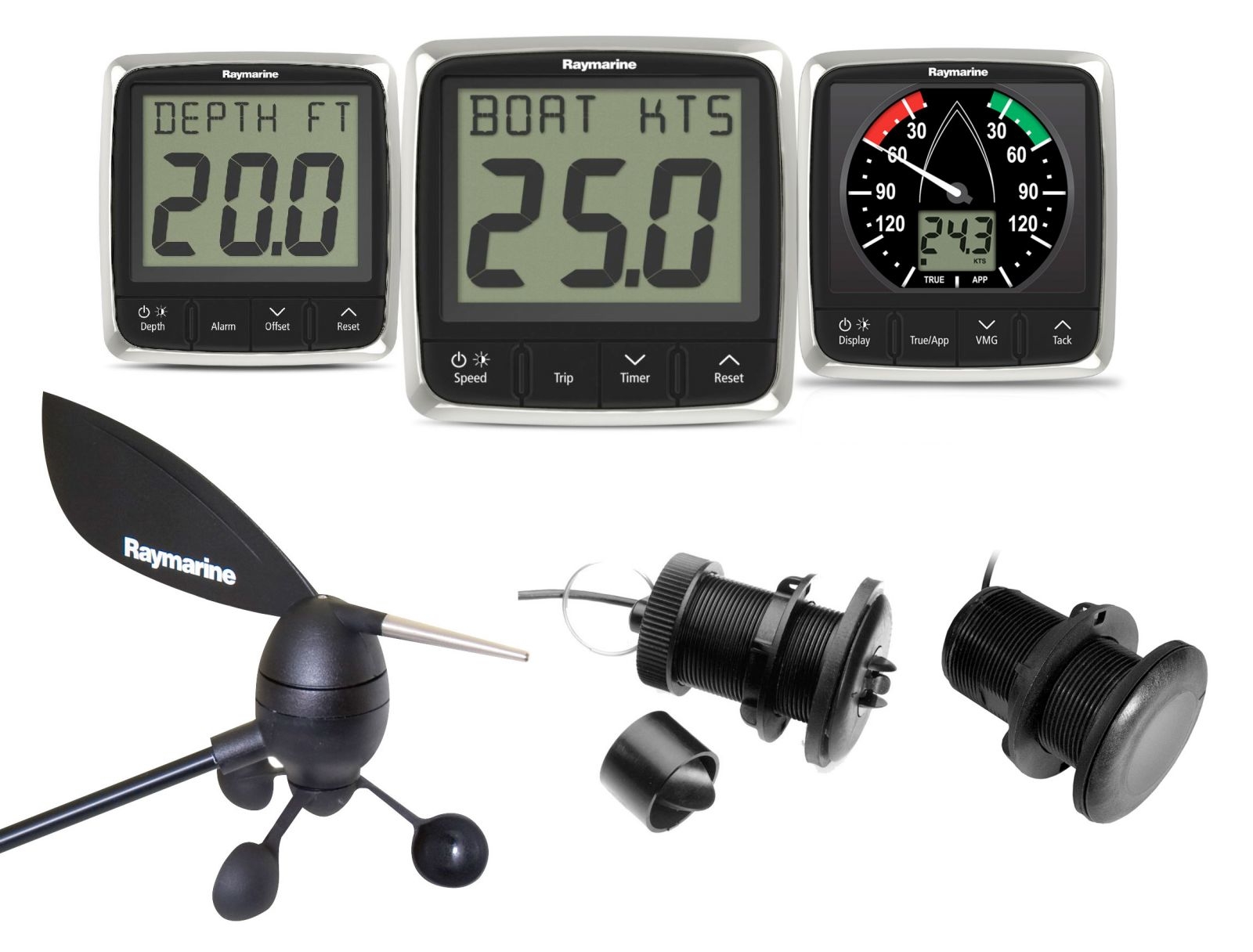

• In the box:
- i50 Depth Display (E70059);
- P319 Standard plastic low profile thru-hull transducer (M78713-PZ) with 45 ft. cable;
- i50 Speed Display (E70058);
- ST800 / P120 Speed / temperature thru-hull transducer (E26031) with 45 ft. cable;
- i60 Wind Display (E70061);
- Short-arm (14.5") forward wind transducer (E22078) with 100 ft. cable.
Specifications:
• Raymarine System Model No. E70153;
• Display: High-contrast monochrome LCDs (i50 Depth & i50 Speed), analog wind direction dial with digital wind speed display (i60 Wind);
• Nominal Voltage: 12 Volt DC;
• Operating Voltage: 10 - 16 Volt DC;
• Power Consumption (typical): Less than 1 W (display only) / 2.4 W max. with transducer connected;
• Current Consumption: 45 to 65 mA (display only) / 200 mA max. with transducer connected;
• Water Protection: IPX6 (protected against high-pressure water stream from any angle);
• Connections: 2 x SeaTalkng and transducers / compatible with marine industry CAN systems;

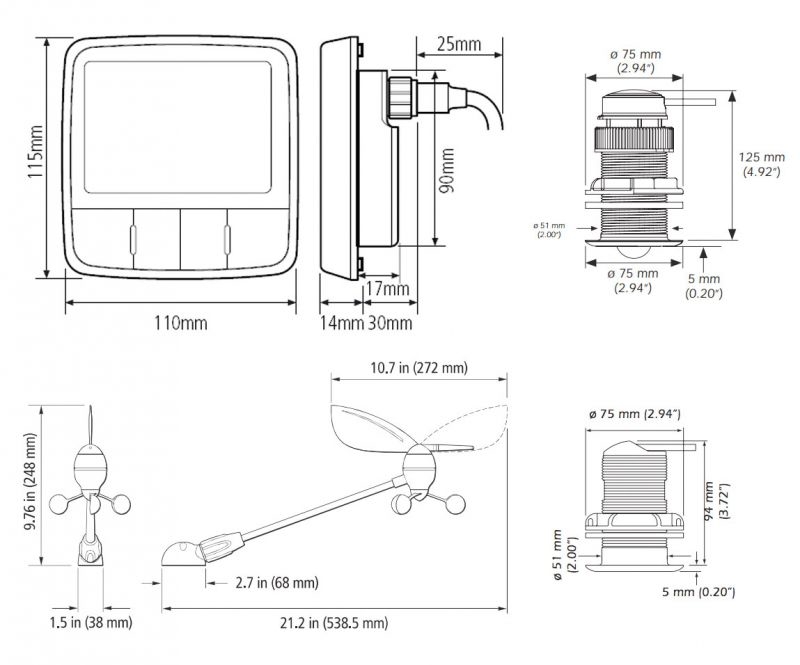

• Instrument Dimensions: 4.3" W x 4.52" H;
• Instrument Cut-Outs: 3.63" dia;
• Thru-Hull Transducer Cut-Outs: 2" dia.
Raymarine E70153 model.
