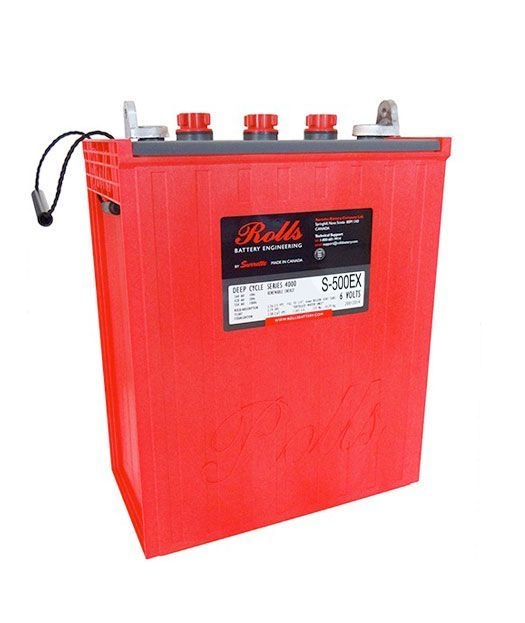

Rolls Flooded Lead-Acid 6V - 504Ah C100 Batteries.

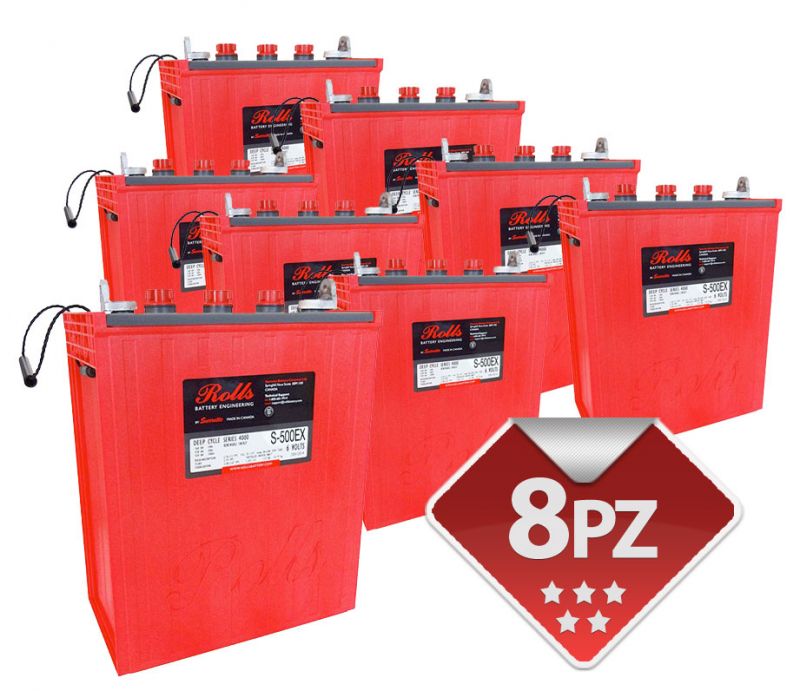

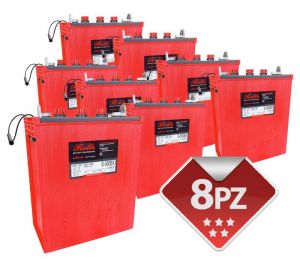

Battery bank 48 Volt 504 Ah C100 has 8 units of 6 Volt 504 Ah each, for an energy storage of 24.19 kWh.
ADVANTAGES:
- Dual container modular construction.
- Coupling of our thick plate design with highest density active material.
- Enveloped separators.
- Increased liquid reserve.
- Elimination of “Stray” current.
- No acid leakage.
- Easy “on-site” assembly/disassembly (no special tools or skills required).
- Significantly less connections, eliminating many points of failure, thus increasing charging efficiency.
- Sediment chamber removed allowing higher plates to be used in the same sized cell, thus yielding greater capacity.
- Unsurpassed cycling service, 7 year warranty - 15 years average life expectancy!
- Less maintenance.
- Link leads, terminal covers.
TECHNICAL FEATURES:
- Nominal voltage: 6;
- Actual Capacity (Ah/C100): 504;
- Dimensions (mm) LxWxH: 318x181x425;
- Weight wet kg: 60;
- Weight dry kg: 45;
- Number cycles with discharges at 100 %: 275 cycles;
- Number cycles with discharges at 50%: 2720 cycles;
- Number cycles with discharges at 25 %: 4500 cycles.
