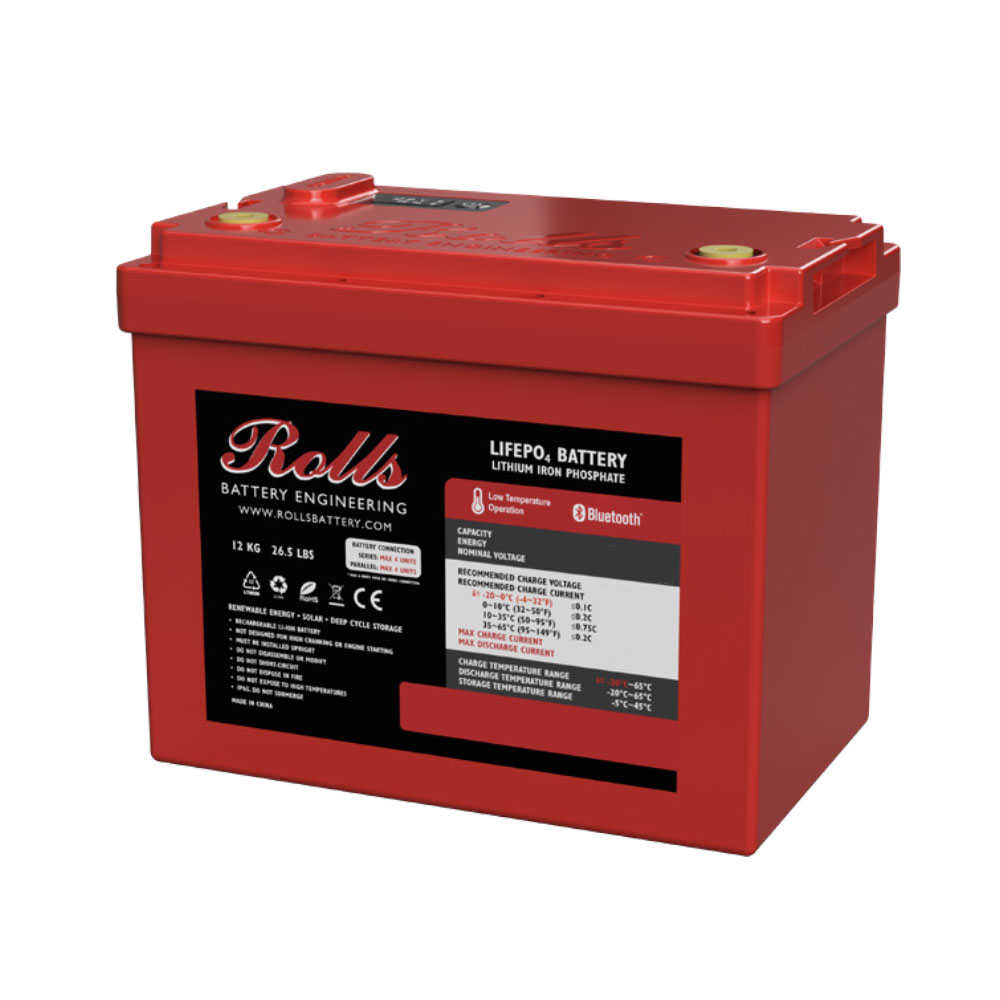

Rolls new long-life, high performance Lithium Iron Phosphate LiFePO4 battery have exceptional cycle life and is up to 50% lighter than equivalent lead-acid battery models.
The new S-Series 12V & 24V LFP drop-in replacements incorporate a number of additional features and capabilities including an integrated screen with controls, visual state-of-charge indication, external fuse access and heating for cold temperature operation.
Prismatic LiFePO4 cells offer longer cycle life & added safety.
Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
• Built-in Battery Management System (BMS)

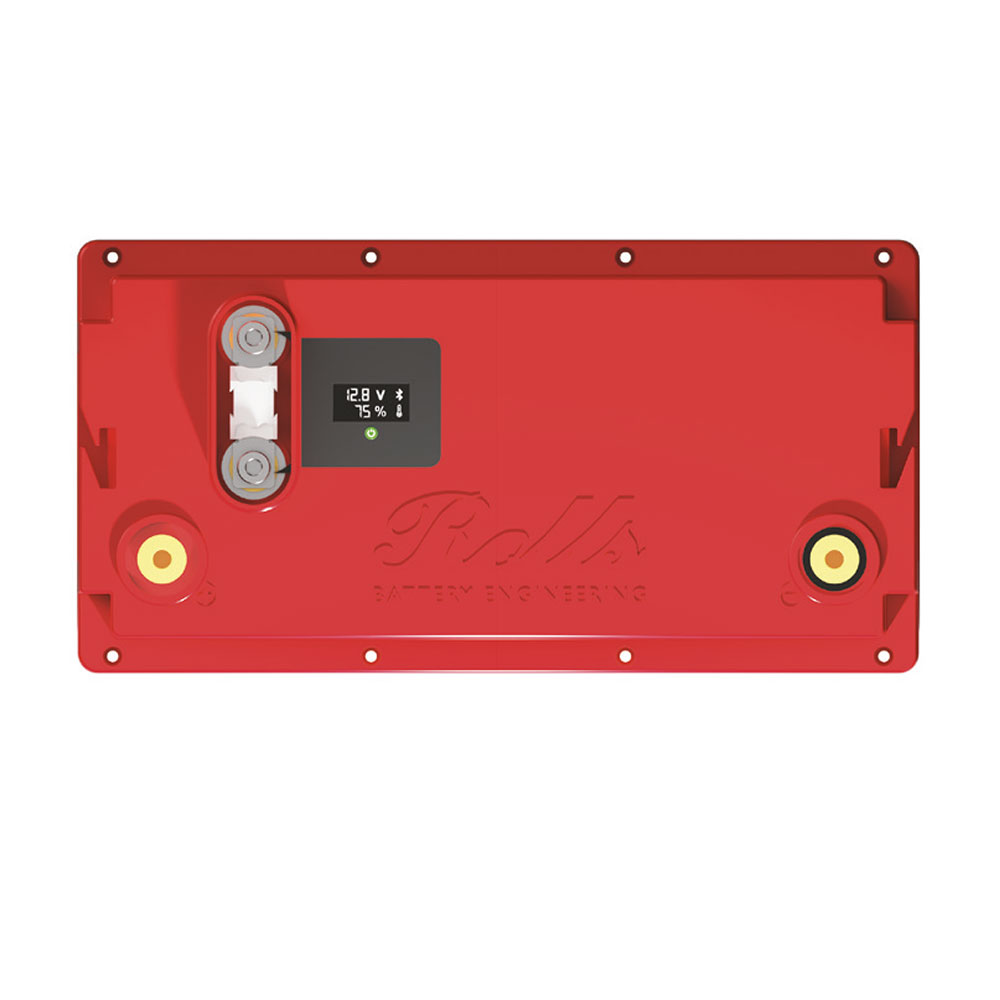

• Display with visual state-of-charge (SOC) indicator & integrated controls
• Internal heating for -20°C (-4°F) ~ 0°C (32°F) charging
• Bluetooth connectivity & dedicated Rolls LFP Connect App
• External fuse access
Features:
Electrical performance
Nominal voltage: 12.8V;
Nominal capacity: 200Ah;
Nominal energy: 2560Wh (2.56kWh);

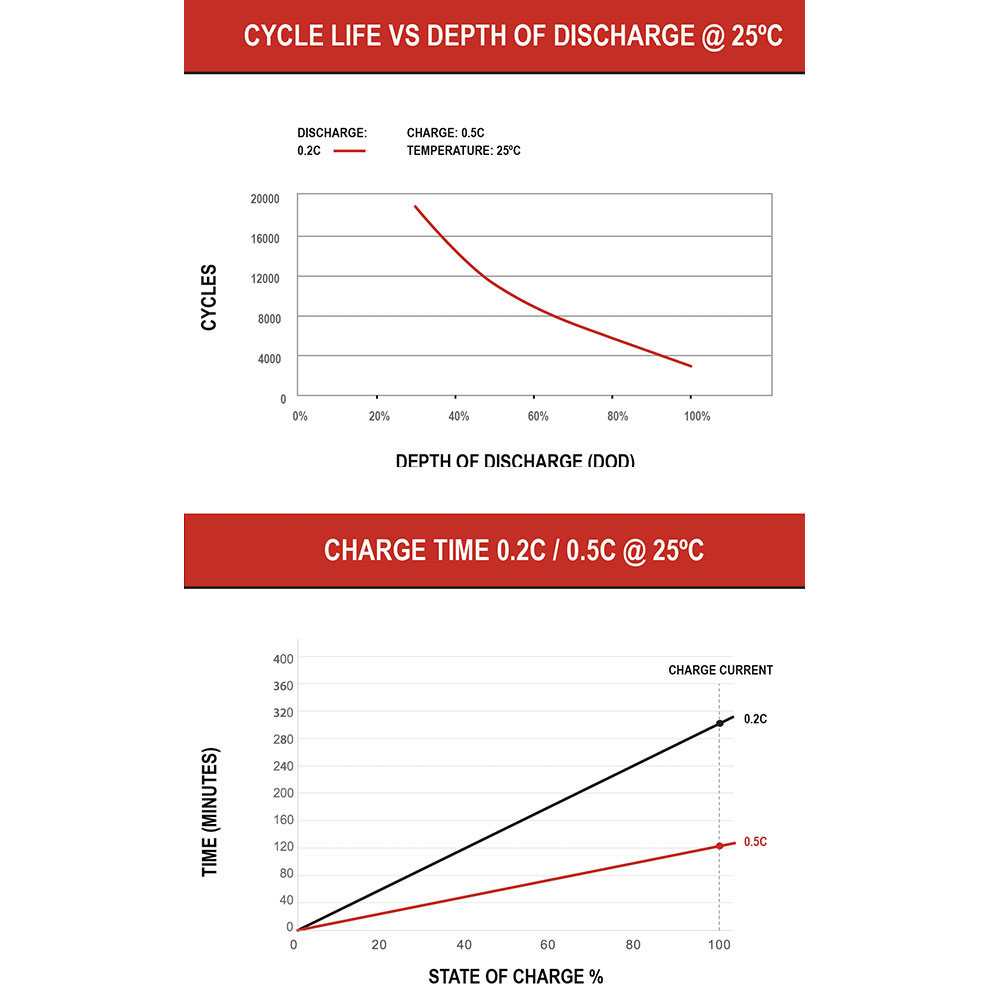

Cycle life: >6000 @ 80% DOD, >3000 @ 100% DOD;
Series connection: 4 Units max;
Parallel connection: 4 Units max;
Enclosure protection: IP65;
Size: 505x185x243 mm.
Weight: 23 kg.
Compliance
Certifications: CE, UN38.3, UL1642 & IEC62133, IEC62619, ROHS.
Warranty: 5 years.
