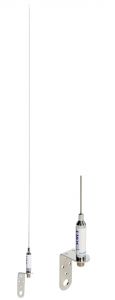

The KM-3A antenna is developed for sailing boats. It combines lightness and flexibility due to the quality stainless steel whip. Its elegant style fits perfectly with the boat design. The antenna is supplied together with a stainless steel mounting bracket, that makes the installation quick and stable.
VHF Antenna manufactured in stainless steel for installation in shaft head complete with mounting bracket in stainless steel. Supplied without cable.
Features:
- Frequency: 156-162 MHz;
- Impedance: 50 Ohm;
- Configuration: 1/2 λ;
- V.S.W.R.: < 1.5: 1;
- Polarisation: Vertical;
- Gain: 3 dB;
- Connector: SO 239;
- Protection: DC ground;
- Fittings: stainless steel bracket;
- Material: stainless steel bracket;
- Length: 100 cm;
- Weight: 230 gr.
