Description

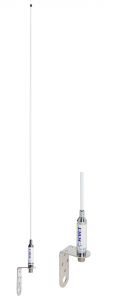

The KM-3F antenna is developed especially for sailing boats. It combines lightness and flexibility with an extreme resistance to atmospheric agents. Its elegant style fits perfectly with the boat design. The antenna is supplied together with a stainless steel mounting bracket, that makes the installation quick and stable.
VHF Antenna manufactured in fibreglass for installations in the shaft head complete with mounting bracket stainless stainless steel supplied with the antenna. Supplied without cable.
Features:
- Frequency: 156-162 MHz;
- Impedance: 50 Ohm;
- Configuration: 1/2 λ;
- V.S.W.R.: < 1.5: 1;
- Power: 50 Watt;
- Polarisation: Vertical;
- Gain: 3 dB;
- Connector: SO 239;
- Protection: DC ground;
- Whip material: Fiberglass;
- Mounting: Stainless steel bracket supplied
- Length: 90 cm;
- Weight: 230 gr.
