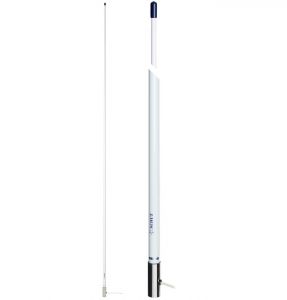

The classical 2,4 m (8’) VHF marine antenna has been totally redesigned by Scout to set a new benchmark in terms of reliability and performance.
The KS-42 is built with a heavy duty 1,5 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with high gloss anti-UV filter to prevent color deterioration. Standard thread 1” x 14, chrome brass ferrule.
The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.
Suggested for medium and big size boats.
Features:
- Frequency: 156-162 MHz;
- Impedance: 50 Ohm;
- Configuration: 1/2 λ;
- V.S.W.R.: < 1.5: 1;
- Power: 50 W;
- Polarisation: Vertical;
- Gain: 6dB;
- Cable: 5 mt RG 58;
- Whip material: Fibreglass, anti-UV high gloss finish;
- Foam injected – 100% waterproof: IP69;
- Ferrule: Stainless steel;
- Mounting: 1 x 14" thread;
- Height: 240 cm;
- Colour: white;
- Weight: 860 gr.
