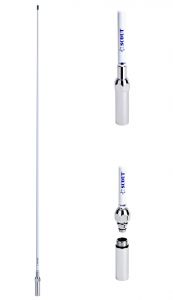

The KS-50 is the ultimate SCOUT VHF marine antenna, specifically designed to solve all the problems connected with installation. The KS-50 equips the new SCOUT Fast Fit system, that allows an easy removal of the antenna whenever needed and guarantees at the same time a safe protection of the connector.
Solid brass elements for high performance, waterproof SO 239 connector, and the special paint with anti-UV filter to avoid the deterioration of the coloring make this antenna the top of the SCOUT range.
• 100% WATERPROOF Antenna.
• SCOUT Fast Fit System.
• 1″ x 14 thread.
• Anti – UV high gloss finish.
• The antenna can be replaced without rerunning cable.
• SO 239 waterproof connector.
Technical specifications:
- Frequency: 156-162 MHz;
- Impedance: 50 ohm;
- Electrical length: 1/2 λ;
- V.S.W.R.: < 1,5:1;
- Polarization: Vertical;
- Gain: 3 dB;
- Max power input: 50 W;
- DC ground: Yes;
- Whip material: Fiberglass;
- Ferrule: Chrome brass;
- Mounting: 1″ x 14 thread;
- Length: 1,5 m;
- Weight: 0,37 kg.
