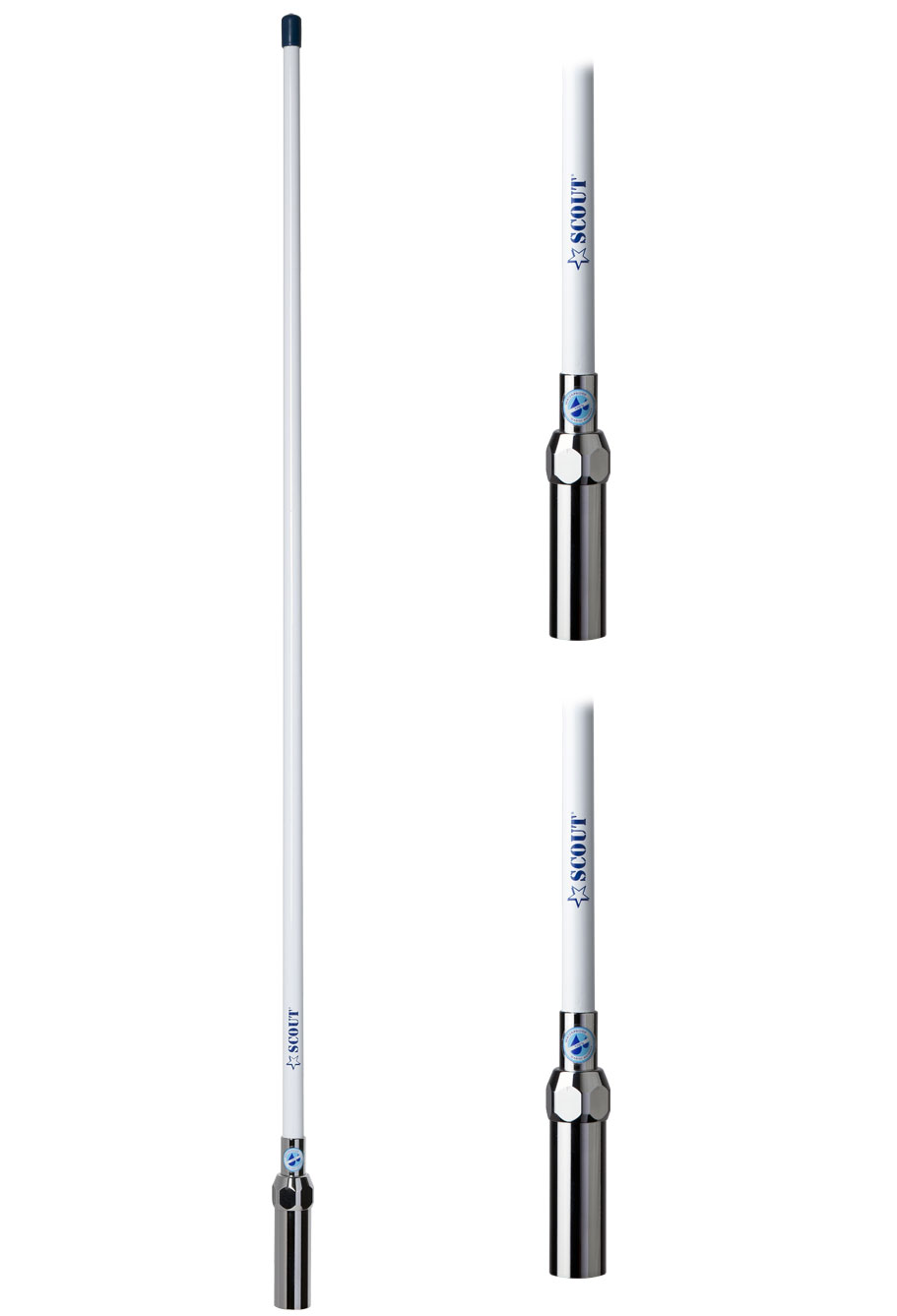

The KS-62 is a high gain 2.4 GHz 10dBi omnidirectional antenna specifically designed to act as the central point to your WiFi applications. By coupling it to the Scout Rocket you get the best solution for your WiFi connectivity, extending the range of your laptop or router with the incredible output power of 37 dBm.
The Fast-Fit system allows to easily remove the antenna from the boat whenever needed and guarantees at the same time a safe protection of the connector.

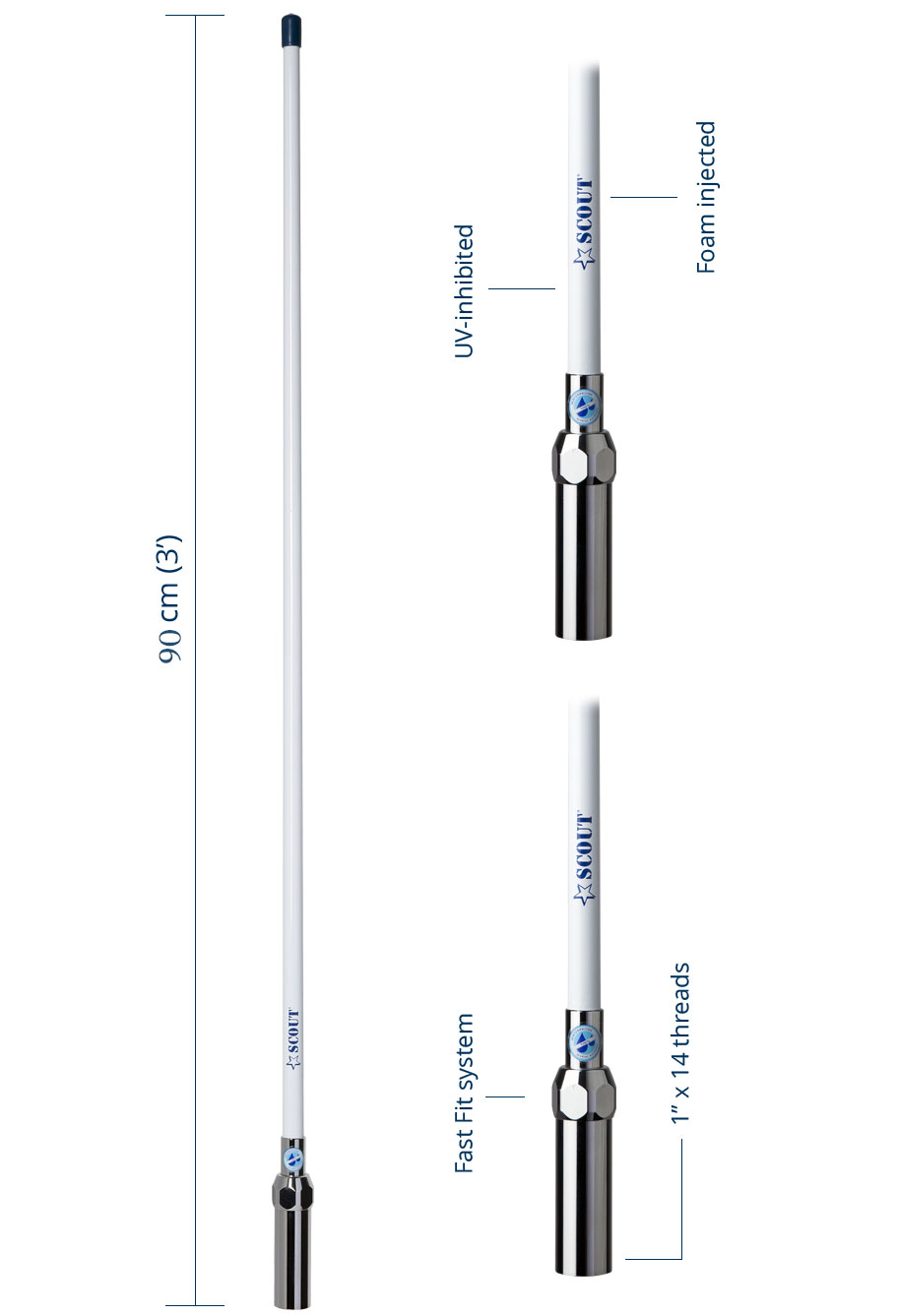

Designed for harsh marine environment and totally foam injected with Scout 100% waterproof technique, the KS-62 is built with solid brass elements, high quality fiberglass with anti-UV finishing and N female connector. Standard mounting 1″ x 14 threads.
• High performance 10 dBi antenna.
• Fast-Fit system.
• Foam injected – 100% waterproof.
Technical specifications:
- Frequency: 2400-2500 MHz;
- Impedance: 50 ohm;
- V.S.W.R.: <1,5:1;
- Polarization: Vertical;
- Gain: 10 dBi;
- Radiation: Omnidirectional;
- Max power input: 50 W;
- Whip material: Fiberglass;
- Connector: N Female;
- Mounting: 1″ x 14 thread;
- Length: 95 cm (3′);
- Weight: 0,45 kg.
