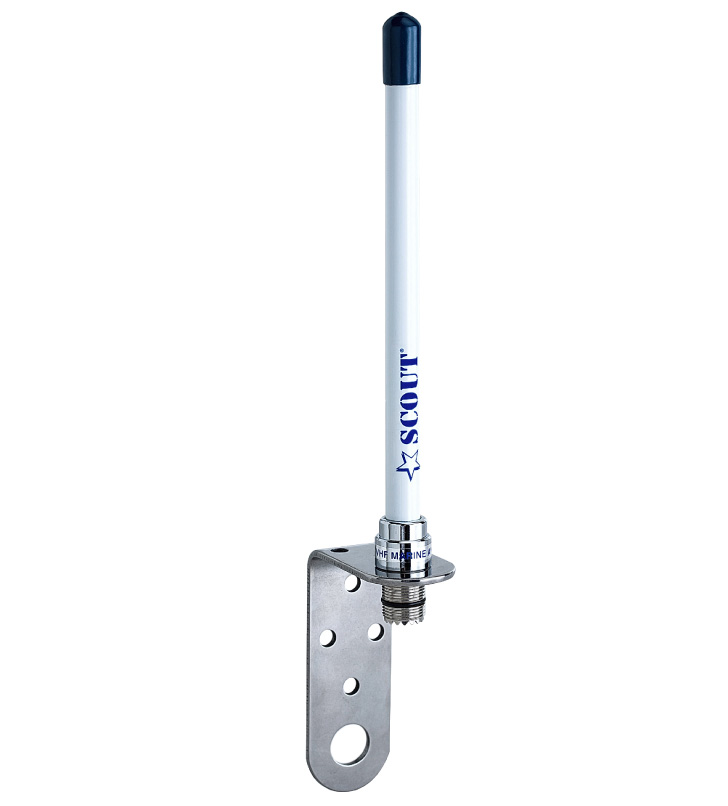

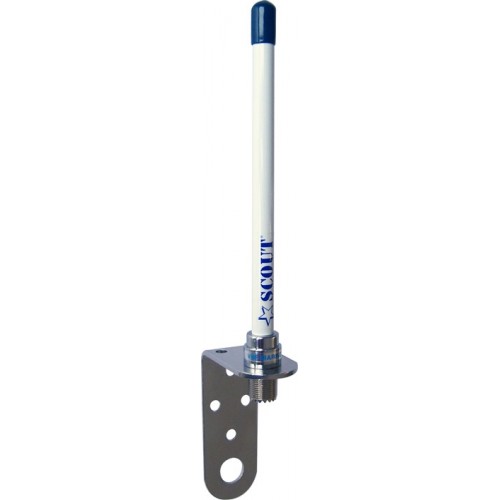

KM-10 VHF Fiberglass Antenna 18 cm.
With only 18 cm length the KM-10 is the shortest VHF antenna of the range, and it is distinguished by its elegant look and glossy chrome finishes. Designed for fast and small boats, thanks to its versatility it is equally adaptable also to sailboats and medium sized boats. It is equipped with a stainless steel bracket that makes the installation easy and stable, and gives the antenna a perfect stability even during fast navigation and rough sea. It is equipped with 18 m RG 58 coaxial cable and a PL 259 male connector.

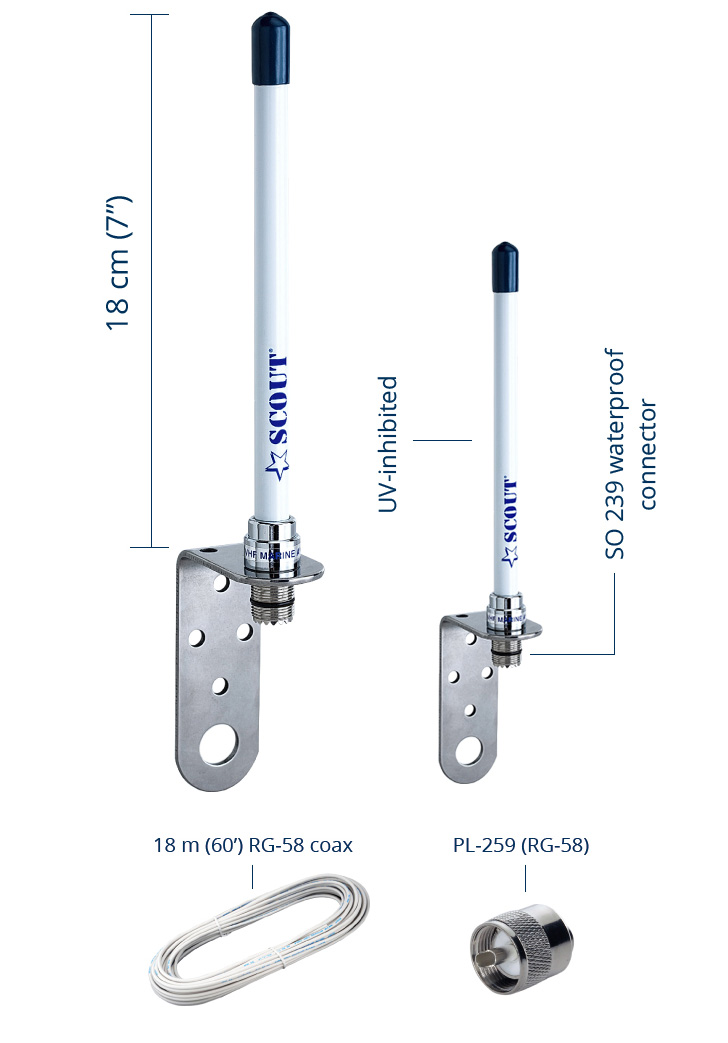

► 18 cm length
► Anti - UV high gloss finish
► 18 m coaxial cable RG 58 CU MIL
► PL 259 connector
► 100% waterproof Antenna

Technical specifications
Frequency: 156-162 MHz
Impedance: 50 ohm
Electrical length: 1/4 λ
V.S.W.R.: < 1,5:1
Polarization: Vertical
Gain: 1 dB
Max power input: 50 W
DC ground: Yes
Whip material: Fiberglass
Coaxial cable: 18 m RG 58 CU MIL
Mounting: Stainless steel bracket
Length: 18 cm
Weight: 0,16 kg
