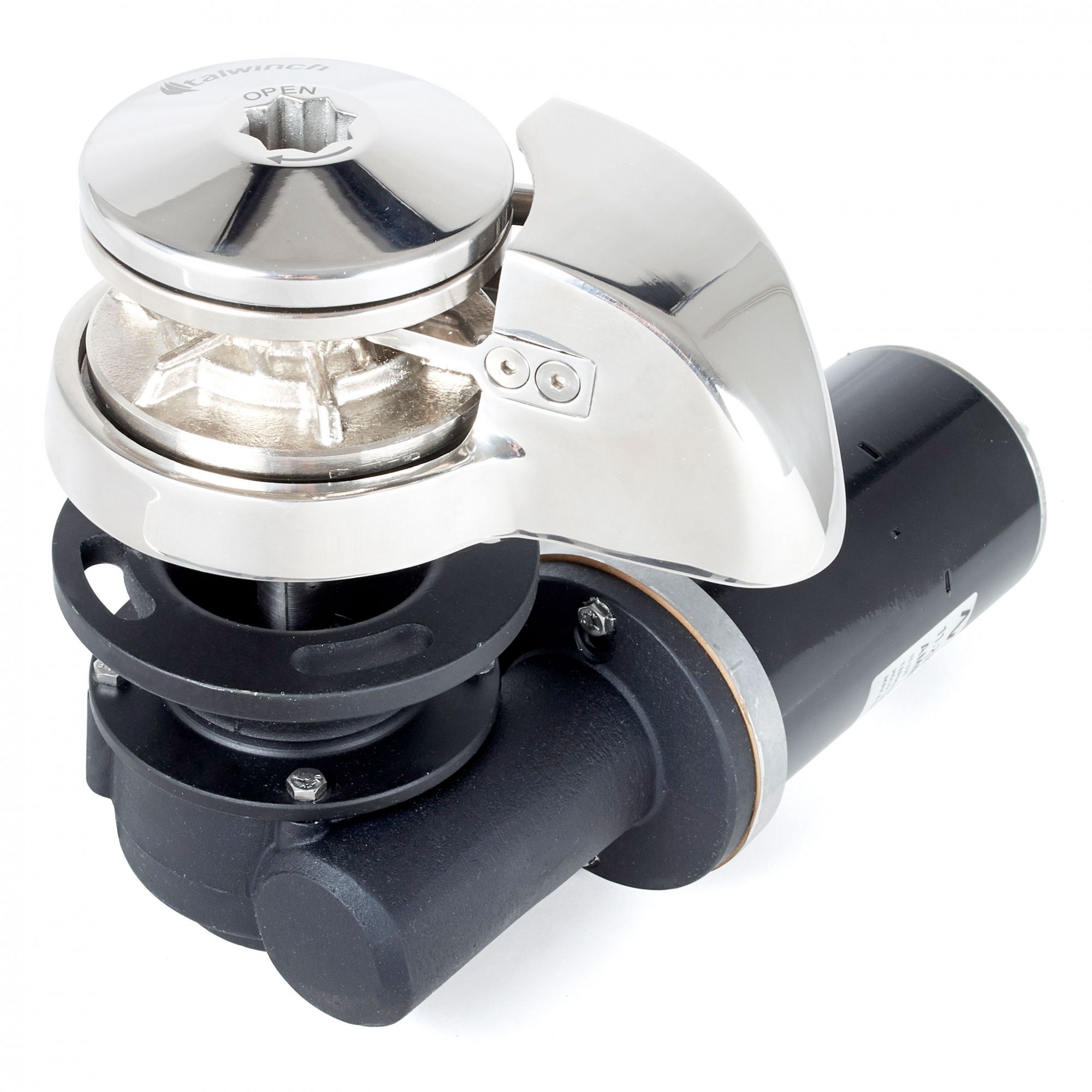

Smart Vertical S.S. 700W 12V Windlass C.6mm Without Drum #MZSM071206L

Smart Vertical S.S. 700W 12V Windlass C.6mm Without Drum #MZSM071206L
  • Smart Vertical S.S. 700W 12V Windlass C.6mm Without Drum #MZSM071206L
  • Smart Vertical S.S. 700W 12V Windlass C.6mm Without Drum #MZSM071206L

Smart Vertical S.S. 700W 12V Windlass C.6mm Without Drum #MZSM071206L

Smart Vertical S.S. 700W 12V Windlass. SMART use the 6mm chain and is equipped with rope tensioner. Comes with built-in chain counter sensor. Without Drum.
Price:
€631.96
Listing:
€902.80
You Save:
€270.84 (30%)

Description

Stainless steel vertical windlass. Available in low profile, with different drives and recommended for boats up to 13 mt. SMART use the 6mm chain and is equipped with rope tensioner. Comes with built-in chain counter sensor. Without Drum.
Specifications:
Electric motor: 700W
Motor supply voltage: 12V
Maximum lift load: 300 Kg
Lift working load: 100 Kg
line speed: 25 mt/min
Current absorption: 90 A
Weight (without drum): 9,5 Kg
Chain: 6mm

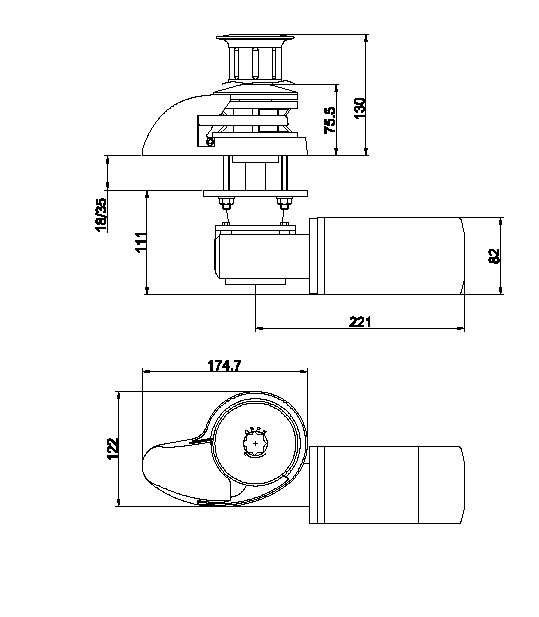

Dimensions (like in immage): A=90mm, B= 56mm, C=130 mm, D=18/35 mm, E=111 mm, F= 221 mm, G= 75.5 mm, H=43 mm, I= 82 mm, L=175 mm, M=122 mm.

Chain:
Gipsy: 6mm
Supported chain: 6 mm DIN766
Supported rope: 12 mm-1/2"
