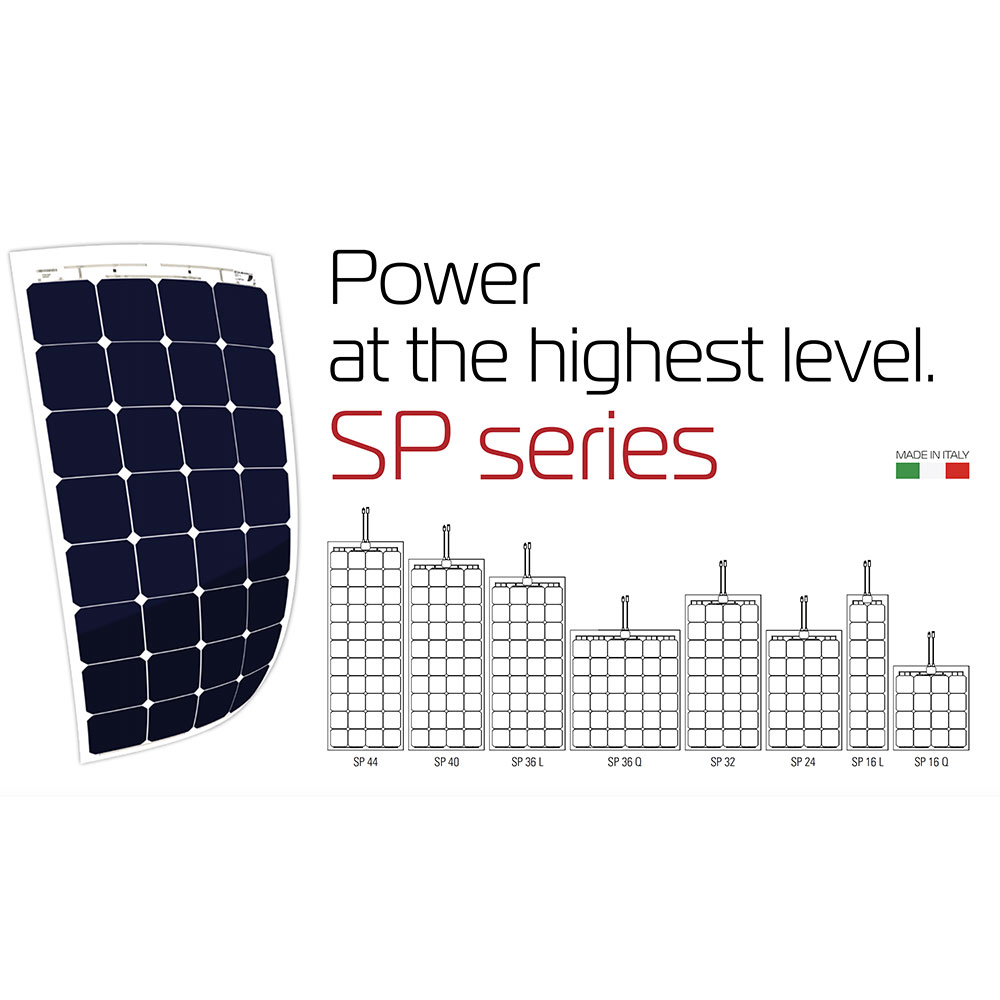

The SP series is at the top of the range, thanks to the use of Maxeon back-contact solar cells, able to convert up to 25.5% of sunlight into electricity and with a pleasant appearance thanks to the electrical contacts hidden on the back. Back-contact cells represent the most advanced technology on the market, and make the SP Solbian panels the highest-efficiency flexible panels.
Flexible, powerful and robust, the panels of the SP series are recommended for all installations where maximum reliability and power are required, and they remain the most iconic symbol of high quality photovoltaic modules.They can be used in all situations and are a best seller in marine applications.
• The most efficient flexible modules on the market
• Flexible and lightweight (2.4 kg/m2)
• Completely waterproof and resistant to salt water
• Thin (less than 2 mm)
• IEC 61215, IEC 61730 and IEC 61701 certified
• 5 year warranty against manufacturing defects
• Positive power tolerance (0%, +5%)
• Integrated bypass diodes to minimise output losses associated with partial shading
• Available with different front sheets, many fixing and electrical wiring options
• White, black or transparent back sheet
• Adaptable to any battery: from 5 to 48 volt, lead-acid or lithium
• Designed and manufactured in Italy
MAXEON is a registered trademark of Maxeon Solar Technologies, Ltd., in the United States of America and other countries.

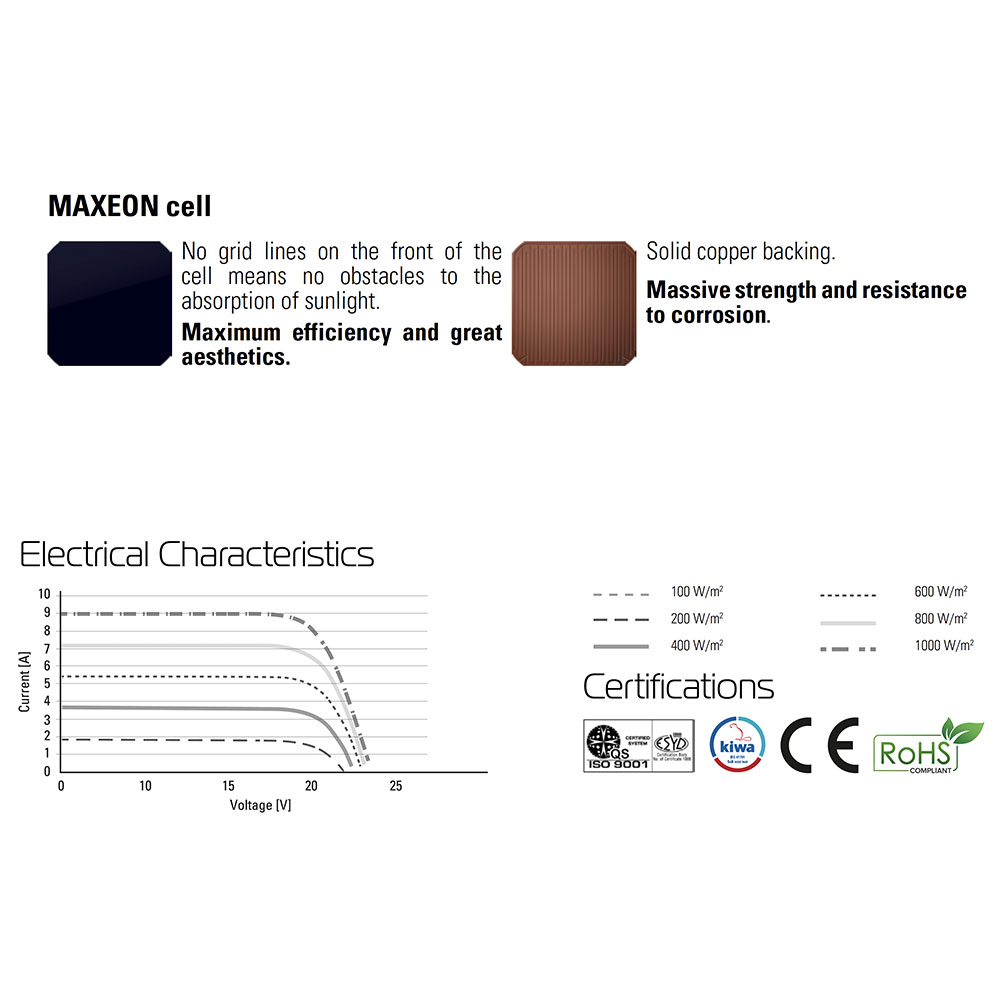

Maxeon cells used in SP series panels are high efficiency monocrystalline cells (the highest available on the market). The electric contacts create a thick pattern resembling two interpenetrating combs on the rear of the cell, this guarantees an optimal management of micro fractures, without power loss.
Back-contact cells are also the best choice when it comes to efficiency in low light and sensitivity at higher temperatures. In fact the temperature coefficient is 25% lower than the other cristalline cells.
Features:

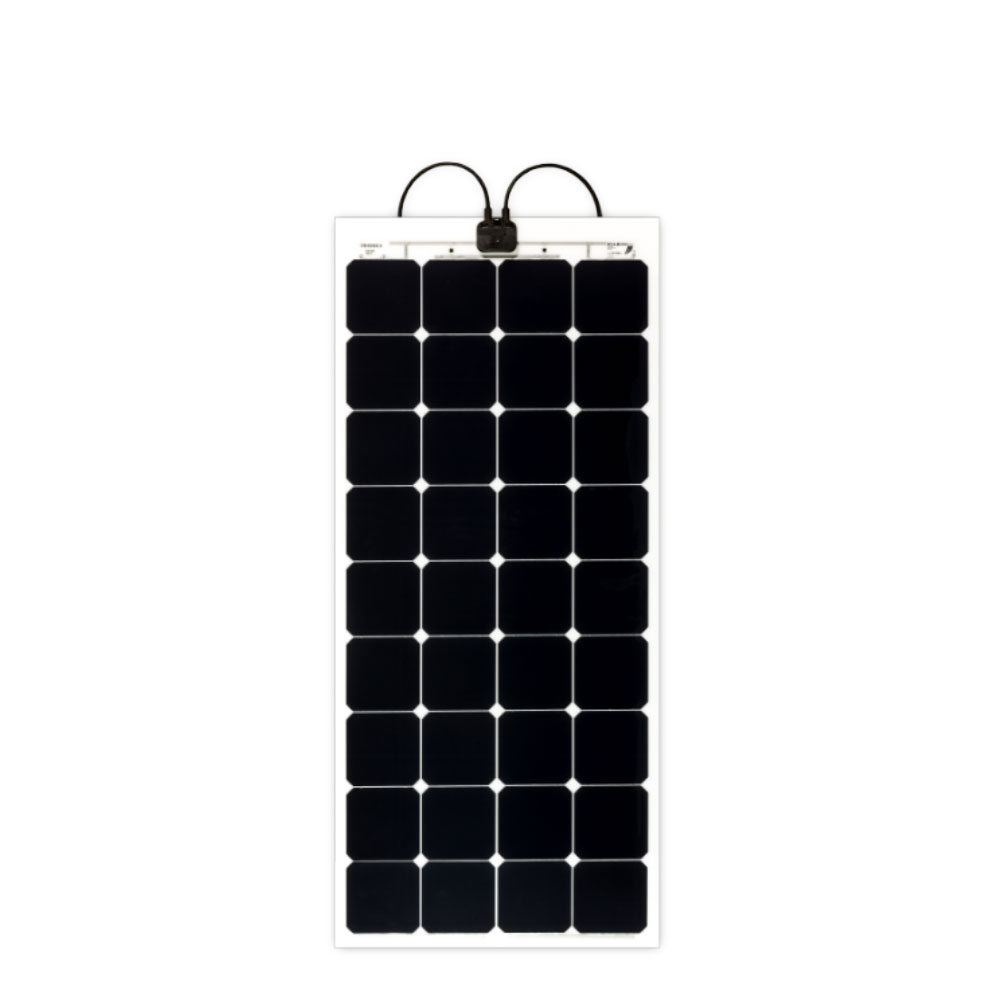

- Model: SP 36 L;
- Peak Power: 124 W;
- No. of cells: 36;
- Rated Voltage: 22.1 V;
- Rated Current: 5.6 A;

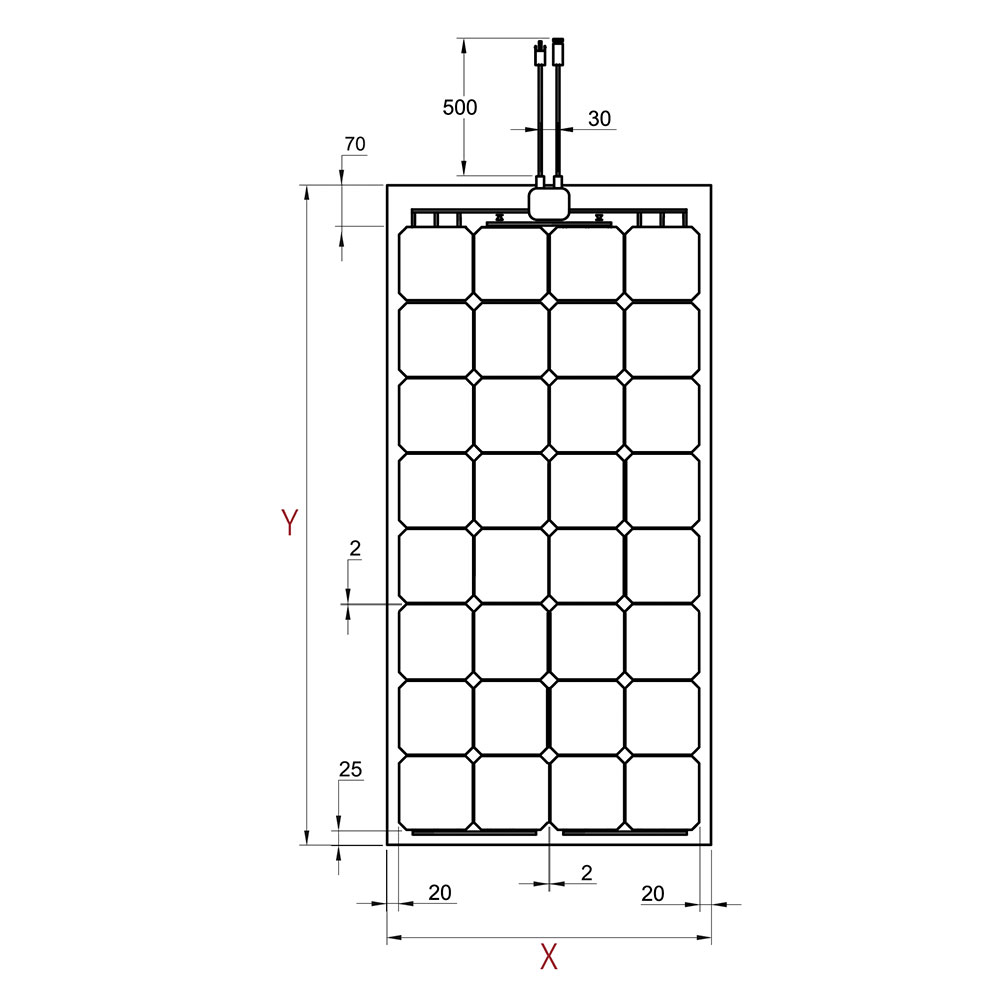

- Length (Y): 1236 mm;
- Width (X): 546 mm;
- Thickness: 2 mm;
- Weight: 1,6 kg.
Note: For how to install choose among the accessories below when ordering among the various modes: Self Adhesive, eyelets, buttons Tenax or Zip. It is not possible to order them at a later time because the panels are arranged at the time of ordering.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
