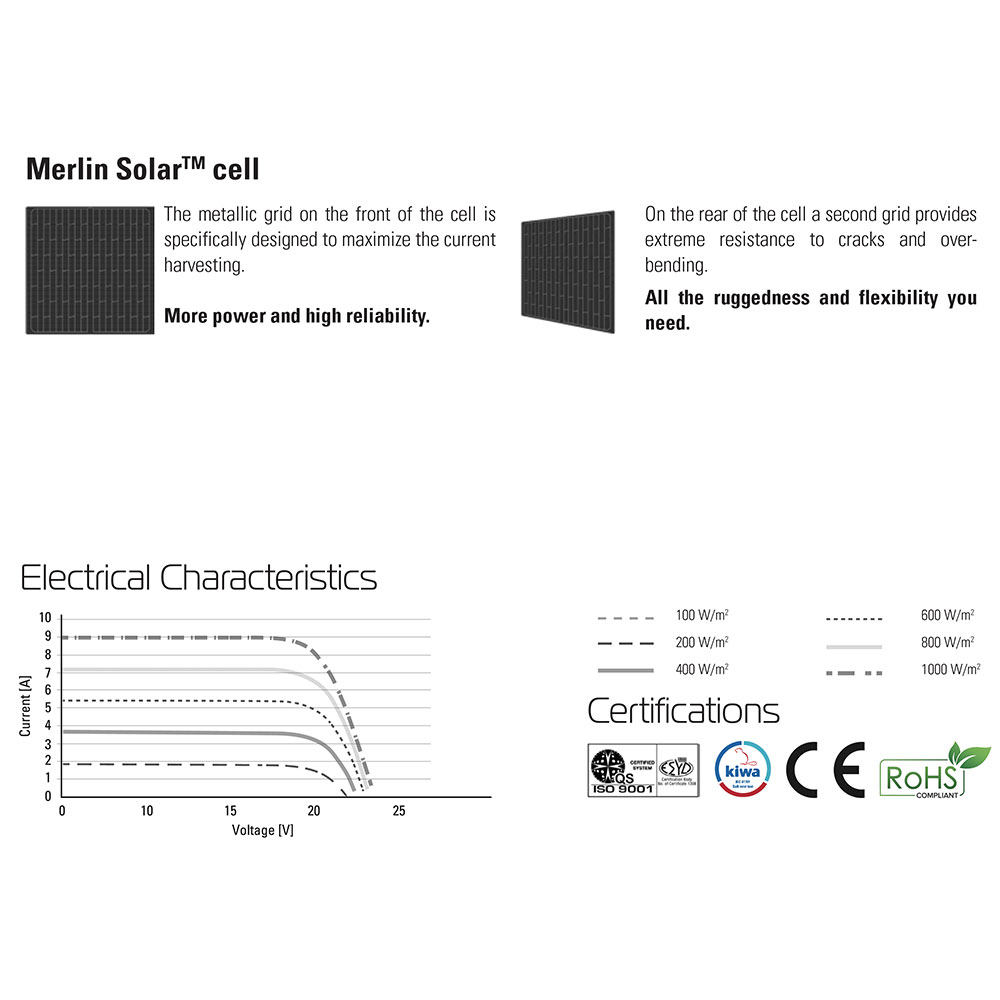

The grids essentially form a double shield that acts as a conducting reinforcement to the solar cell.
Extreme crack and bend tolerance are built in, providing a guarantee of high efficiency and unmatched durability.
At the core of Merlin Solar’s patented technology is an innovative pair of metal grids serve as intra-cell and inter-cell connections.
The same copper and solder as any other bus bar cell are used, but 20 redundant lines and more than 180 interconnections enable the extraction of more power and significantly improve the reliability, performance and ruggedness of the solar panel.
• High resistance to mechanical stresses thanks to the thin wires thick mesh on the cell surface
• Flexible and lightweight (2.4 kg/m2)
• Completely waterproof and resistant to salt water
• Thin (less than 2 mm)
• 5 year warranty against manufacturing defects
• Positive power tolerance (0%, +5%)
• Integrated bypass diodes to minimise output losses associated with partial shading
• Available with different front sheets, many fixing and electrical wiring options
• White, black or transparent back sheet
• Adaptable to any battery: from 5 to 48 volt, lead-acid or lithium
• Designed and manufactured in Italy
Features:

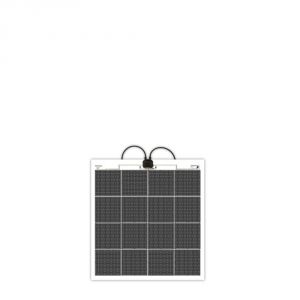

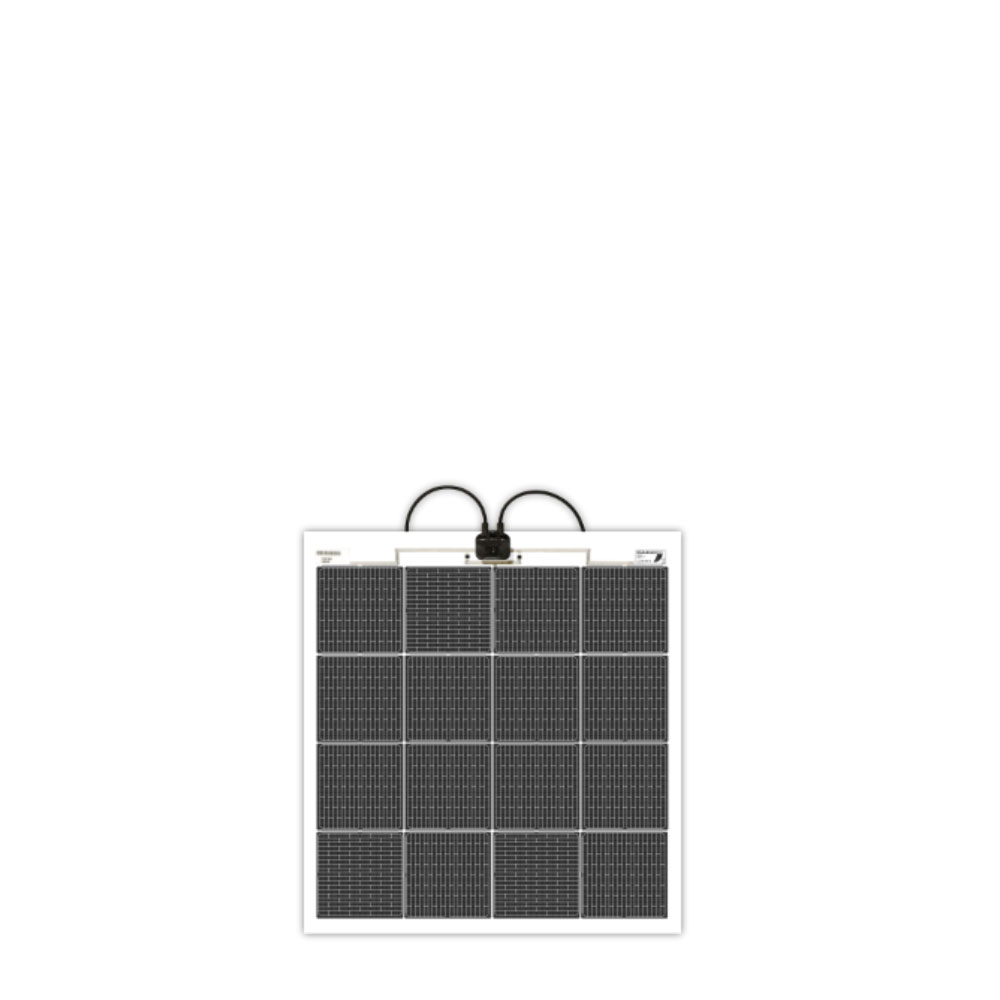

- Model: SR 16 Q;
- Peak Power: 80 W;
- No. of cells: 16;
- Rated Voltage: 8.4 V;
- Rated Current: 9.5 A;
- Length (Y): 739 mm;
- Width (X): 694 mm;
- Thickness: 2 mm;
- Weight: 1.2 kg.
Note: For how to install choose among the accessories below when ordering among the various modes: Self Adhesive, eyelets, buttons Tenax or Zip. It is not possible to order them at a later time because the panels are arranged at the time of ordering.
