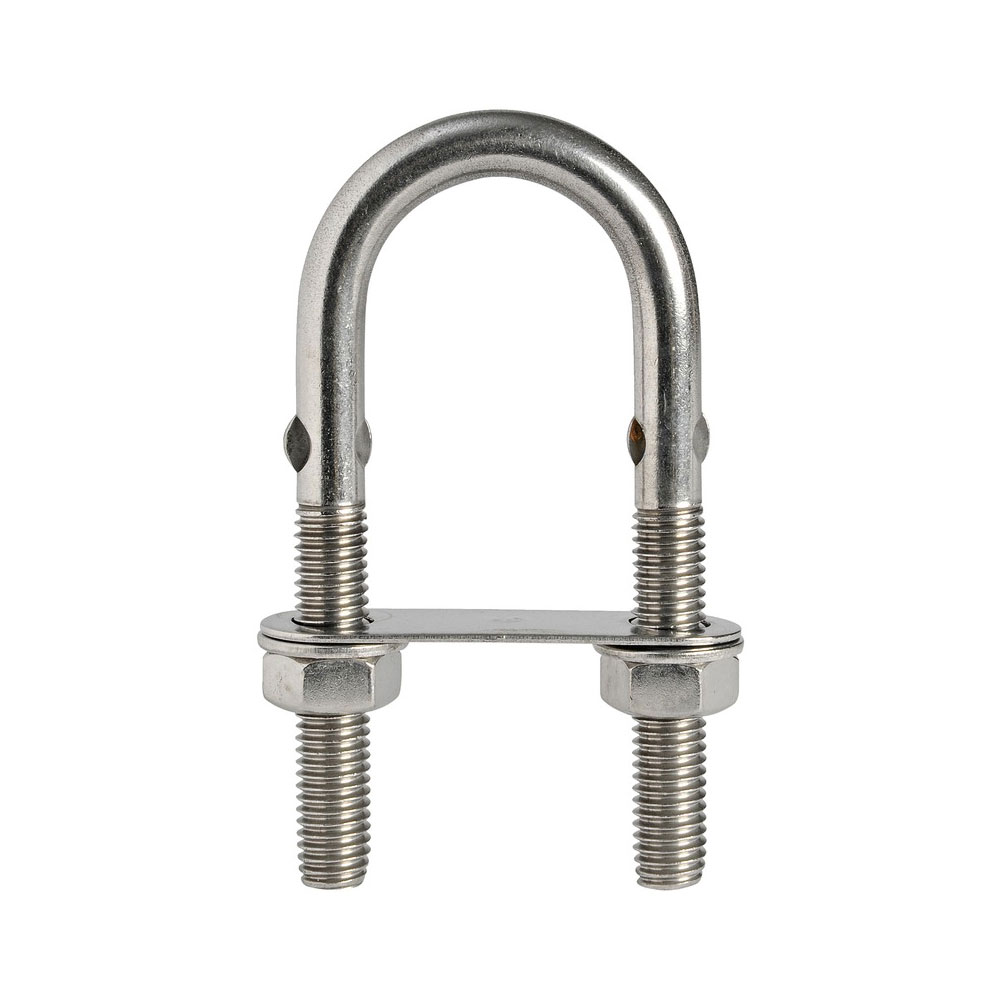

AISI304 stainless steel U-bolt with plate 50x15mm, 80x36mm thread, 36mm wheelbase, 4000kg breaking load.
Price:
€3.17
Listing:
You Save:
(%)

Description

AISI 304 stainless steel U-bolt stamped with pinched rod for deck applications. Equipped with gasket plate with screws.

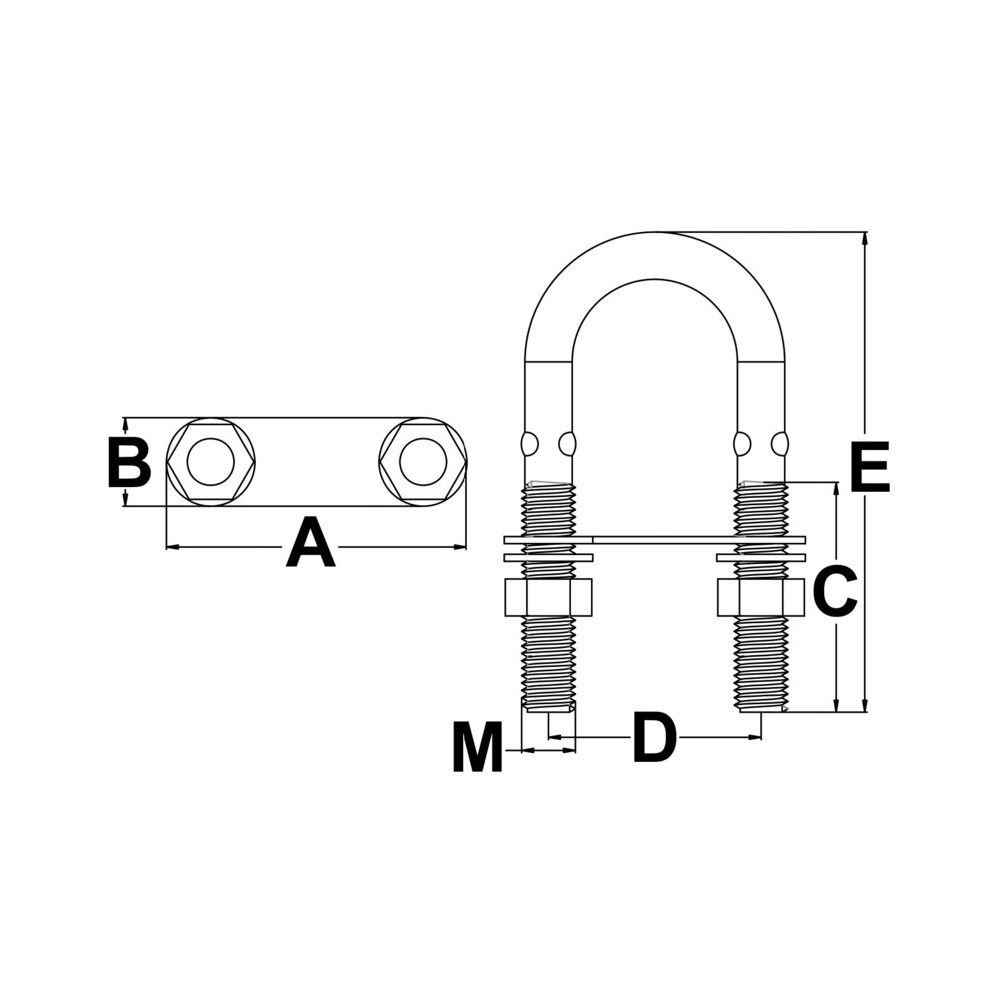

Dimensions:
- Total length (E): 80 mm;
- Thread length (C): 40 mm;
- Thread diameter (M): 8 mm;
- Distance between centers (D): 36 mm;
- Plate (AxB): 50x15 mm;
- Breaking load: 4000 kg.
