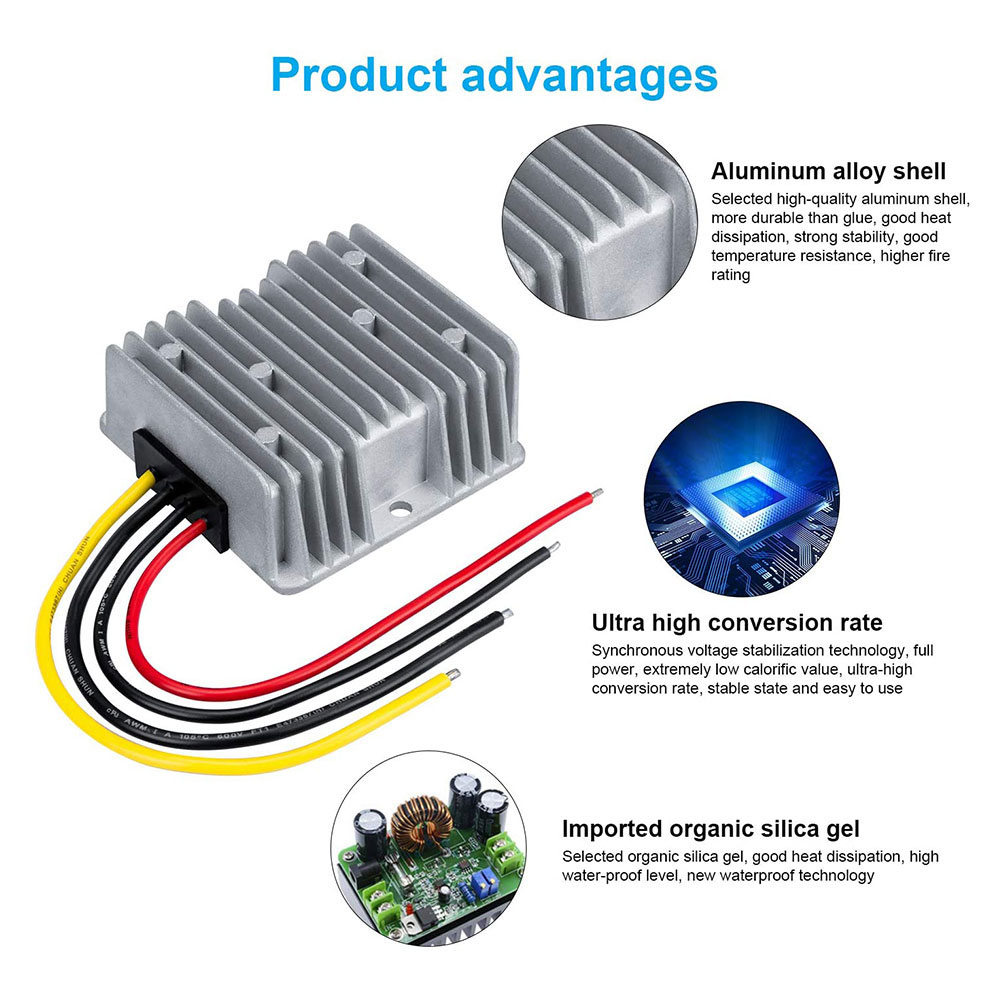

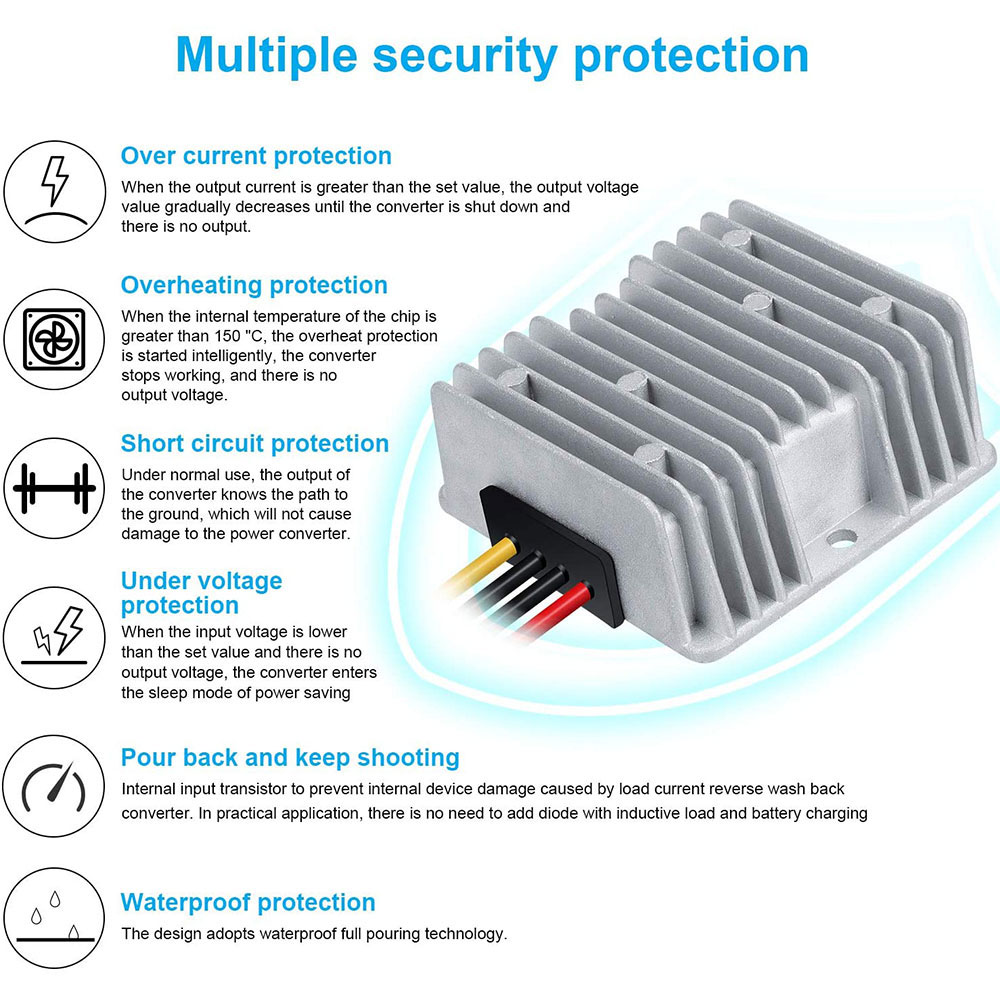

24V to 12V 10A 120W DC/DC step-down converter with high precision stable voltage output. This voltage converter uses industrial-grade high-quality chips with high conversion rate and stability. The adapter supports 3 smart safety functions including over current protection, over temperature protection and output short circuit protection, much safer to use.
The waterproof IP68 alloy case makes the converter ideal for use in a wide variety of applications, including vehicles, security systems, hospital equipment, telecommunications, monitoring systems, led strips, led displays, motors, automation equipment, trucks, golf carts, driving recorders, network communications engineering, intelligent robots and solar panels etc.
Characteristics:
- Input voltage: 24V DC (input voltage range: 18V-36V DC).
- Output voltage: 12V DC.
- Output current: 10A.
- Output power: 120W.
- Efficiency: 94%.
- Working temperature: -40 ~ +80°C.
- Ambient humidity: 0~95%.
- Protection: IP68.
- Size: 6.6x6x2.2cm.
- Weight: 100g.

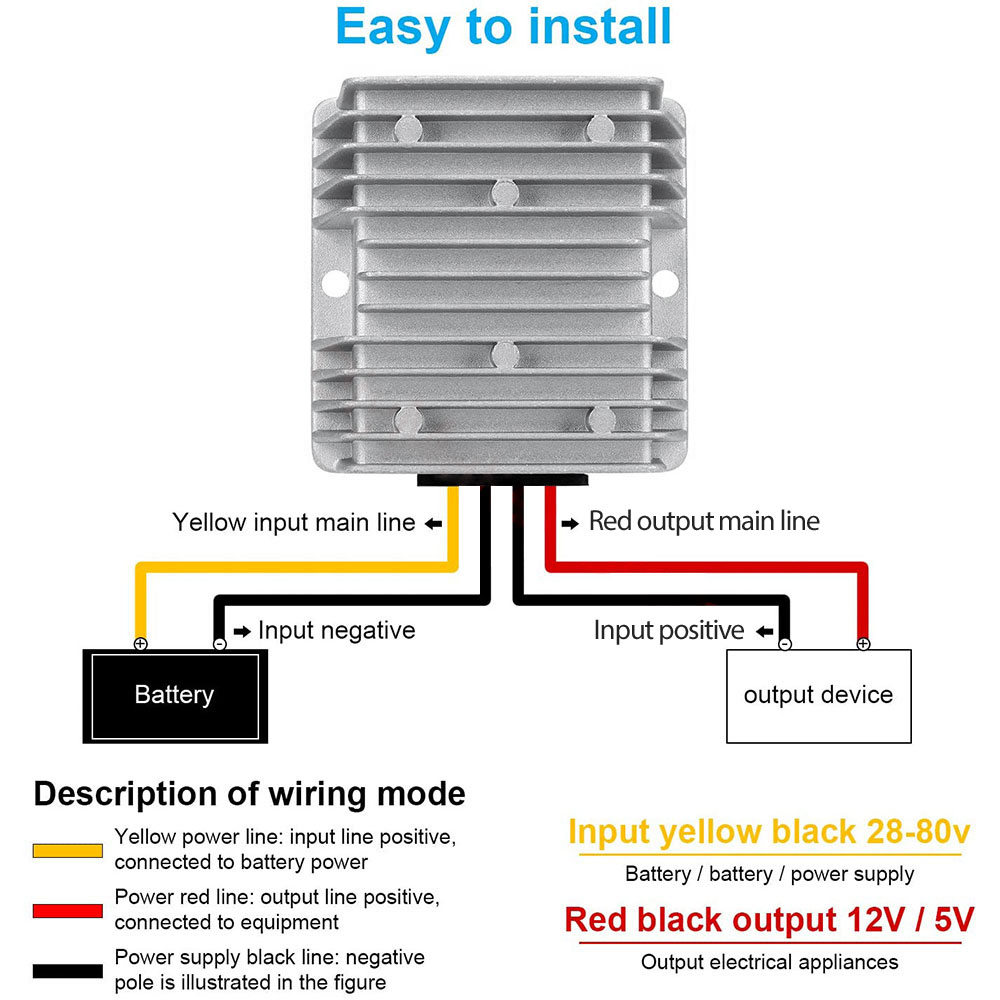

Description of wiring mode:
- Yellow power line: input line positive, connected to battery power.
- Power red line: output line positive, connected to equipment.
- Power supply black line: negative pole is illustrated in the figure.
