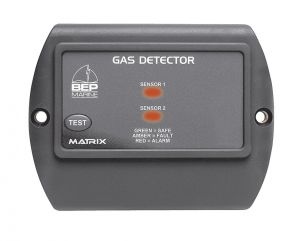

Uflex 600-GD BEP Gas Detectors with LPG, Petrol and CNG Fume Sensor

The BEP Detectors use microprocessor control to ensure correct sensor sensitivity. The Detectors have the ability to control two sensors which detect both LPG and Petrol, with visual and audible alarms.
• Dual sensor for LPG and petrol
• Visual and audible alarms; provision for external alarm
• Automatic shut-off solenoid control with pulse and hold circuit for low power draw (600-GDL only)
• Self-testing
• Provision of bilge blower

600-GD
600-GD detecst LPG, Petrol and CNG fumes. Supplied with one sensor, with an option for a second sensor (BL-SL-L) output for remote alarm and blower unit. 600-GD can be used on 12 or 24V systems.

Voltage (VDC): 10-32
Current (mA): 350 max
Alarm sensitivity: 20% of the lower explosion limit
Output current (mA): 800 max
Solenoid (mA): 700 impulse, 250 seal
Dimensions: 67x88x17 mm (2.4x3.5x0.7 inches)
