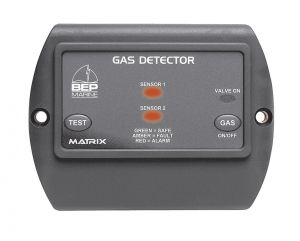

The BEP Detectors use microprocessor control to ensure correct sensor sensitivity. The Detectors can control two sensors which detect both LPG and Petrol, with visual and audible alarms.
• Dual sensor for LPG and petrol
• Visual and audible alarms; provision for external alarm
• Automatic shut-off solenoid control with pulse and hold circuit for low power draw (600-GDL only)
• Self-testing
• Provision of bilge blower
600-GD
600-GD detects LPG, Petrol and CNG fumes. Supplied with one sensor, with an option for a second sensor (BL-SL-L) output for remote alarm and blower unit. 600-GD can be used on 12 or 24V systems.
600-GDL
Same features as the 600-GD, with the ability to switch a on valve. It contains a unique “Pulse & Hold” circuit within the detector. This reduces power consumption and heat while the gas is turned on.
Voltage (VDC): 10-32
Current (mA): 350 max
Alarm sensitivity: 20% of the lower explosion limit
Output current (mA): 800 max
Solenoid (mA): 700 impulse, 250 seal
Dimensionis 67x88x17 mm (2.4x3.5x0.7 inches)
