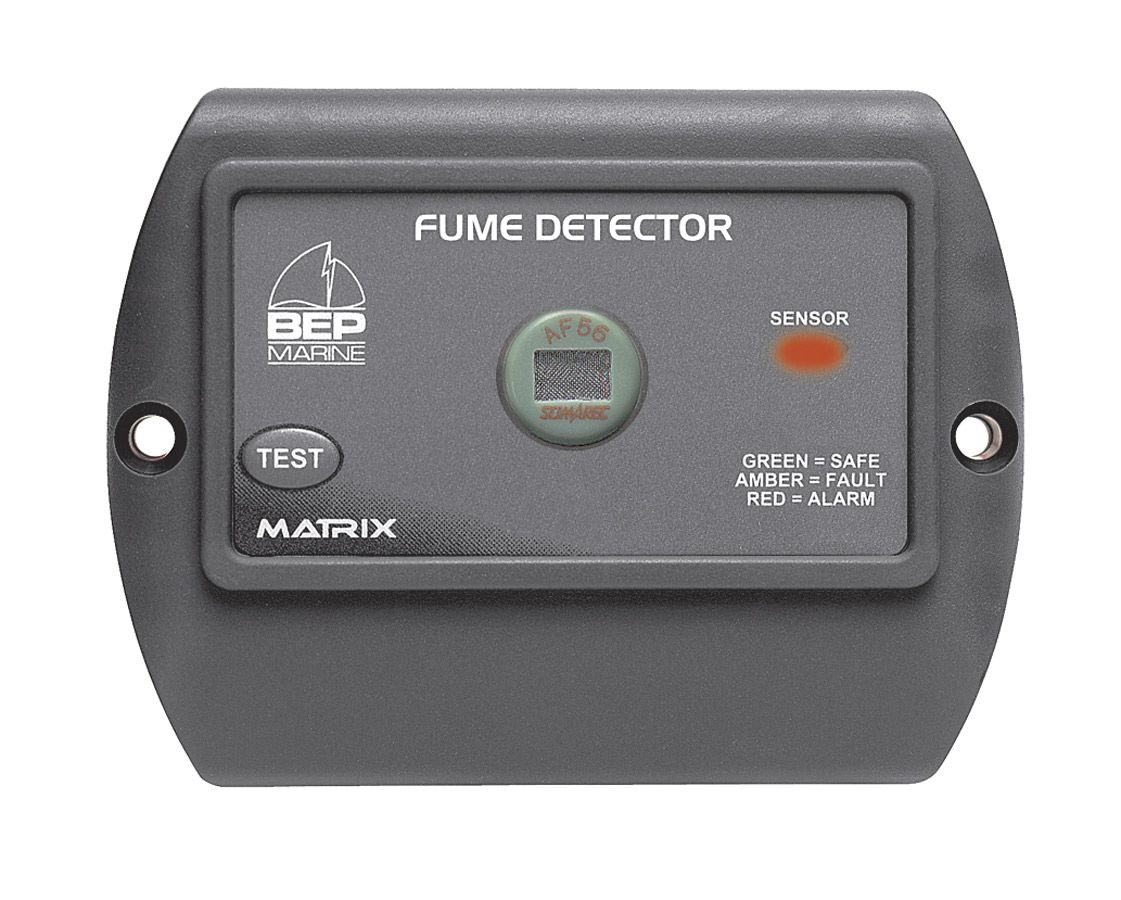

Uflex 600-GDRV Gas Detector BEP with LPG Petrol and Methane front sensor

The BEP Gas Detectors use microprocessor control to ensure correct sensor sensitivity. The Detectors have the capability to control two sensors which detect both LPG and Petrol, with visual and audible alarms.
• Dual sensor for LPG and petrol
• Visual and audible alarms; provision for external alarm
• Automatic shut-off solenoid control with pulse and hold circuit for low power draw (600-GDL only)
• Self-testing
• Provision of bilge blower

600-GDRV
600-GDRV has the sensor mounted in the front creating a stand alone unit. The unit is designed to be surface mounted on the vessel’s lowest point.

Voltage (VDC): 10-32
Current (mA): 350 max
Alarm sensitivity: 20% of the lower explosion limit
Output current (mA): 800 max
Solenoid (mA): 700 impulse, 250 seal
Dimensions: 67x88x17 mm (2.4x3.5x0.7 inches)
