Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T

Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T
  • Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T
  • Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T
  • Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T
  • Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T
  • Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T

Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #UF43250T

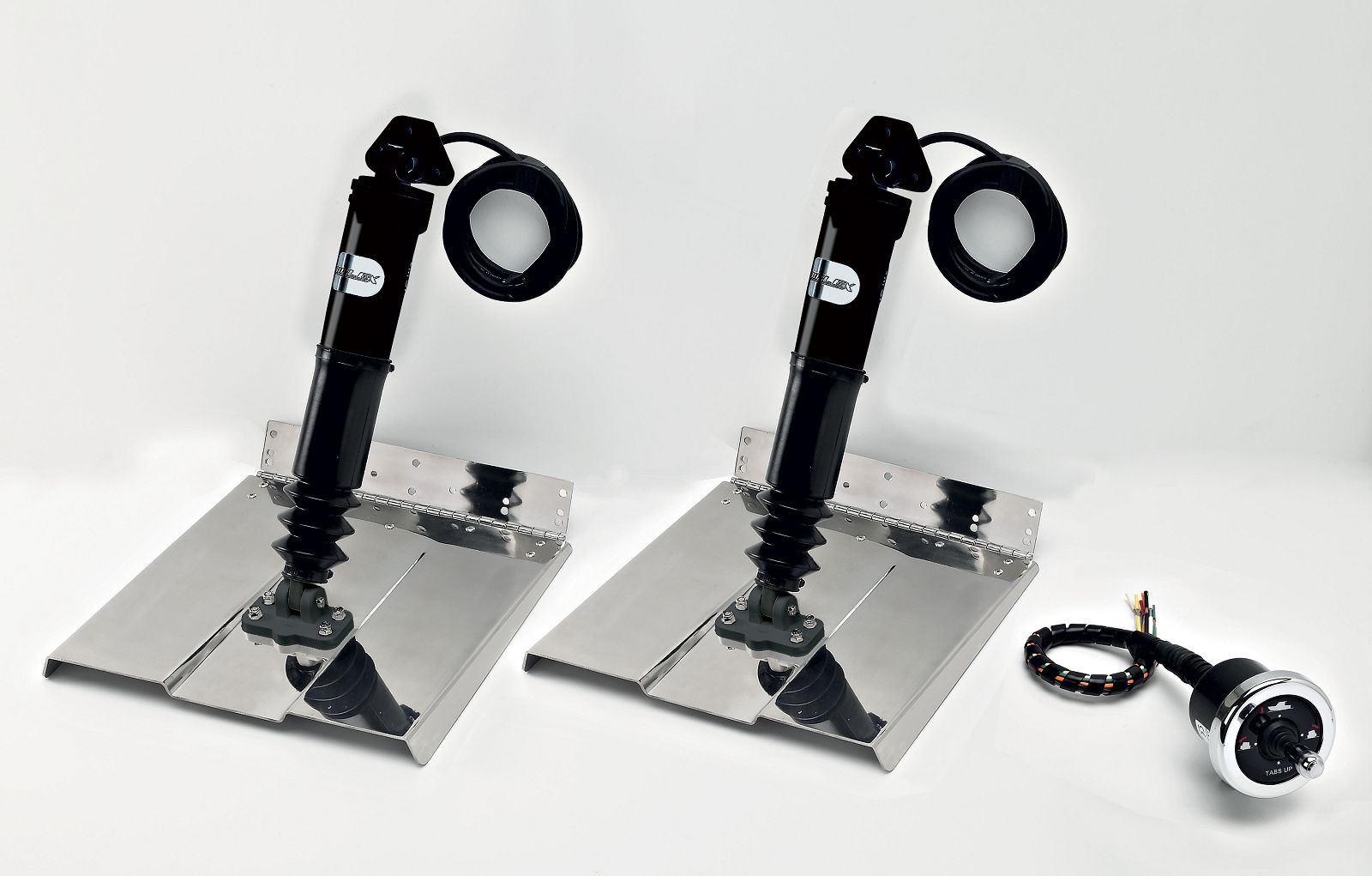

The prepackaged UFLEX set includes 2 AC 12VDC actuators + 1 chome-plated Joystick. Trim tabs for small and medium sized boats.
Price:
€1,115.32
Listing:
€1,593.32
You Save:
€478.00 (30%)

Description

Uflex MTS12-CH Electromechanical Trim Tabs Set 2 actuators AS 12VDC + 1 chrome-plated joystick FLAP #

Trim tab blades are not included: they are sold separately and dimensions must be specified when ordering.

The prepackaged UFLEX set includes 2 AC 12VDC actuators + 1 chome-plated Joystick. Trim tabs for small and medium sized boats.

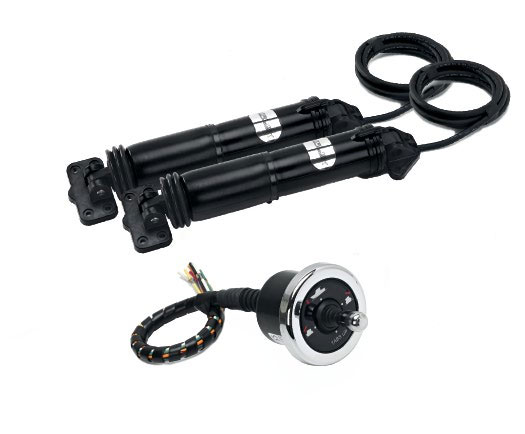

The set includes the actuators and the joystick control device.

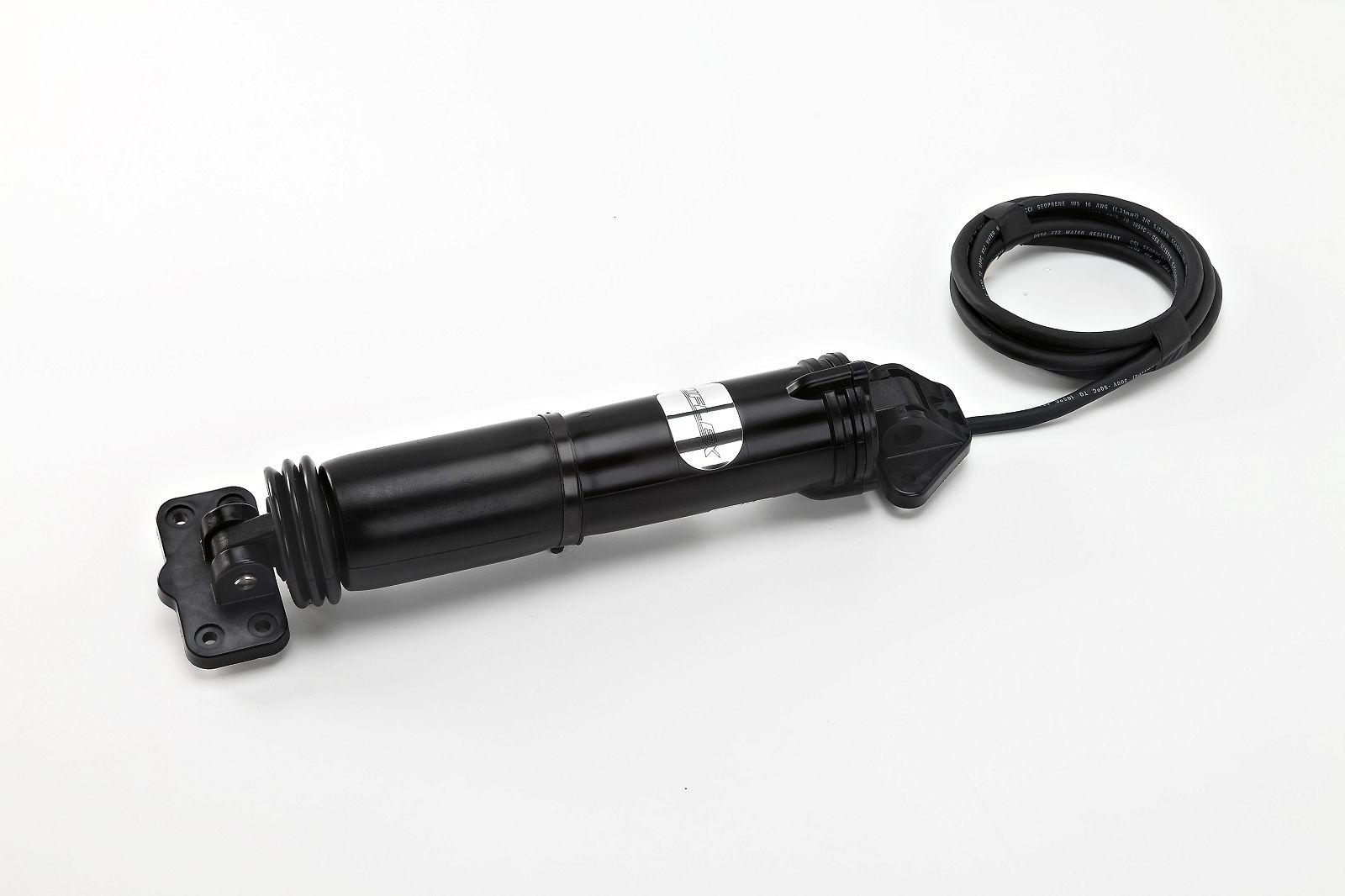

AS 12VDC Actuators
AS12 - 41839W
Actuator and black brackets - 12 VDC
1 m (3.28") wiring harness included with Deutsch crimped pin
Operating stroke: 57mm (2.25")

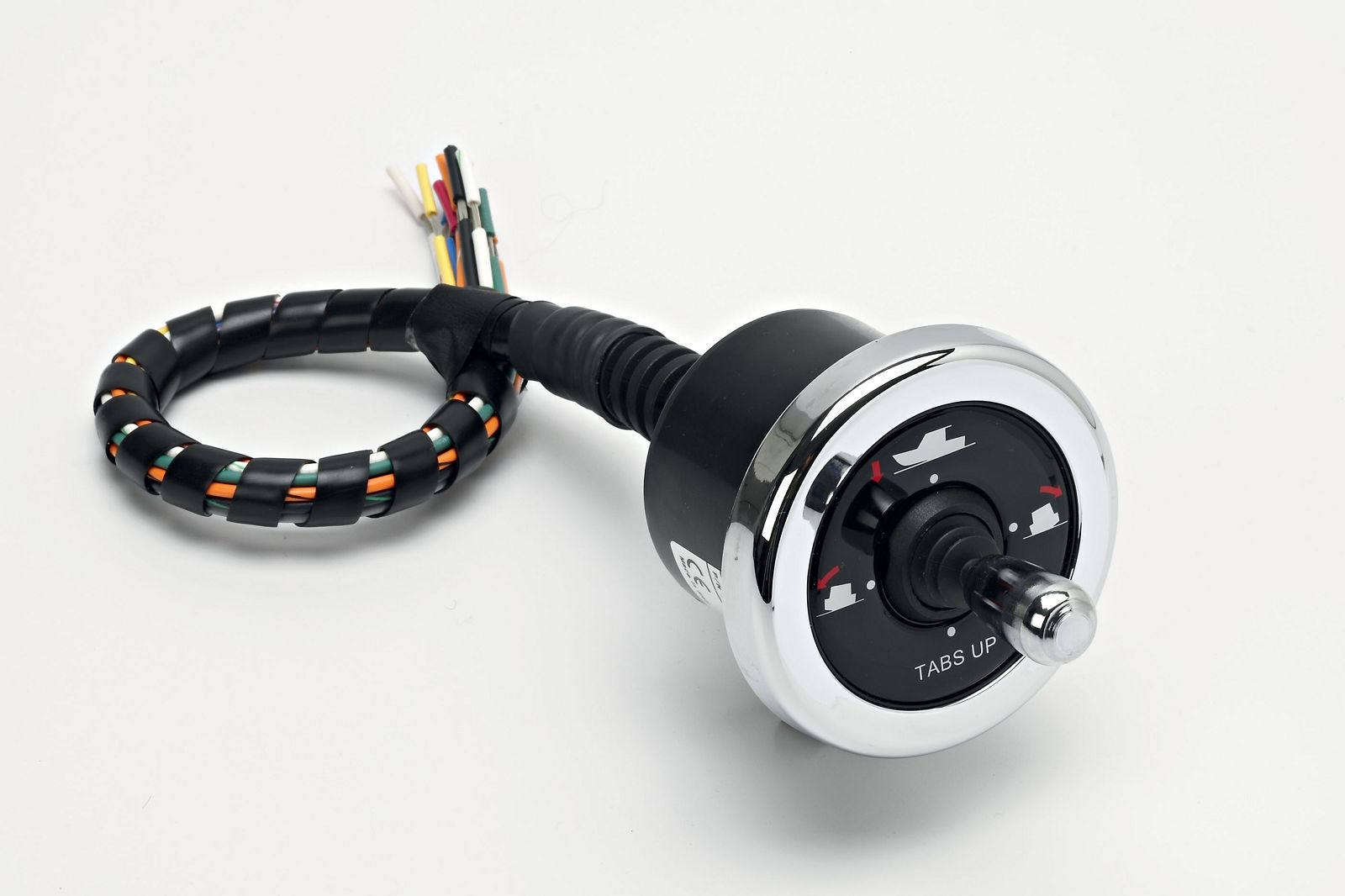

CONTROL UNIT FOR SINGLE STATION:
J/CH - 41849Z chrome-plated
• Main station compact control unit with joystick (PATENTED).
• Auto-line up function included (automatic flap realignment)
• Wiring harness included  (length. 0,50 m)
• 70mm (2.76”) hole size

They are not designed for use on racing boats.

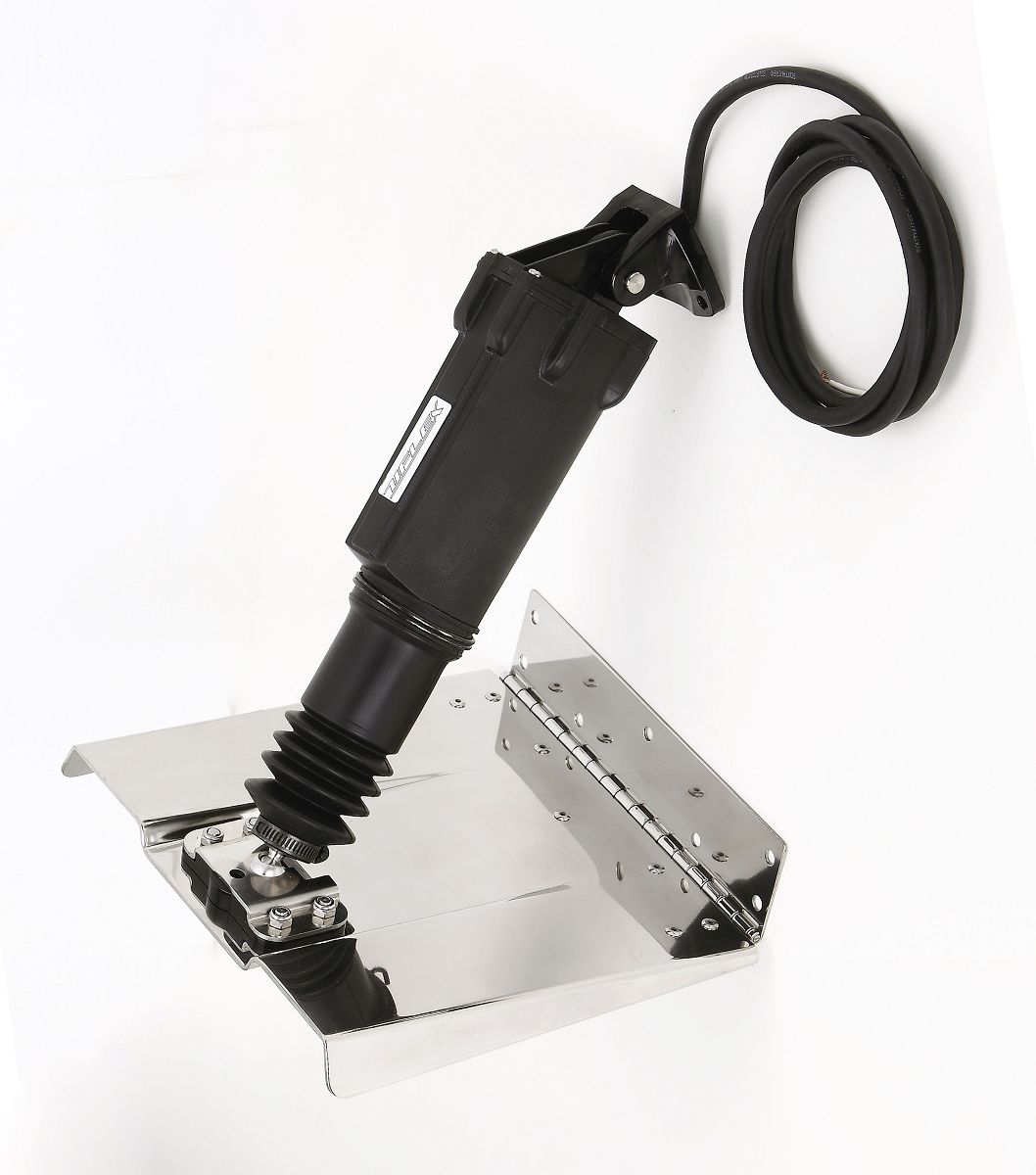

Electromechanical trim tabs
Improve fuel economy and passenger comfort with Uflex electromechanical trim tabs. Featuring electropolished stainless steel planes and low consumption, high speed, composite actuators, these tabs are built to last in the most demanding sea conditions.
Uflex trim tabs have been specifically designed for easy installation using a quick connect bracket-actuator, requiring only one small hole per tab through the transom. The patented transom mounting bracket encapsulates the wiring to ensure protection against any wiring damage.

Uflex trim tab systems are available in 2 versions:
MTS systems for standard installations
MTC systems for compact installations

FEATURES
• Operating system with hardened steel ballscrew, suitable to withstand high push loads.
• Prompt and easy control with the innovative use of a Joystick (PATENTED)
• AUTO-LINE UP: automatic flap re-alignment function
• Completely sealed thermoplastic resin tab actuators: maximum protection guaranteed by dual seals and a rubber bellow (PATENTED)
• Stainless steel rod and tabs
• The innovative profile of the tabs increases the efficiency of the system
• The stainless steel top surface of the tabs is mirror polished to give higher resistance to marine environment.
Unpolished stainless steel tabs also available.
• Hole hinge design (PATENTED) allows for precise retrofit replacement with Lenco® and Bennett® same size tabs
• Fully maintenance free
• Voltage: 12V DC
• IP68 protection degree
• CE Certification
• Complies with EN60945 standards
• The system is not designed for use on racing boats.
• In the MTC version, the joint between the actuator and the tab is a spherical joint. This allows to compensate for small installation misalignments.


Accessories

  1. 1
    Uflex P99 Pair Mirror Polished Stainless Steel trim tab blades 9"x 9" #5UF41844N
    Listing:
    €235.46
    Price:
    €164.82
    You Save:
    €70.64 (30%)
    Mirror polished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
  2. 2
    Uflex P912 Pair Mirror Polished Stainless steel trim tab blades 9"x 12" #UF41845R
    Listing:
    €265.96
    Price:
    €186.17
    You Save:
    €79.79 (30%)
    Mirror polished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
  3. 3
    Uflex P1212 Pair Mirror Polished Stainless Steel trim tab blades 12"x 12" #UF41846T
    Listing:
    €341.60
    Price:
    €239.12
    You Save:
    €102.48 (30%)
    Mirror polished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
  4. 4
    Uflex P1218 Pair Mirror Polished Stainless Steel trim tab blades 12"x 18" #UF41847V
    Listing:
    €468.48
    Price:
    €327.94
    You Save:
    €140.54 (30%)
    Mirror polished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
  5. 5
    Uflex KE20 Actuator Wiring Harness Extension Kit #UF42378R
    Listing:
    €261.08
    Price:
    €182.76
    You Save:
    €78.32 (30%)
    KE20 Kit includes one 5 m (16’) length wiring harness extension for power cable and two 6 m (20’) ength wiring harness extensions for actuator cables. Deutsch plugs included.
  6. 6
    Uflex KE30 Actuator Wiring Harness Extension Kit #UF42379T
    Listing:
    €283.04
    Price:
    €198.13
    You Save:
    €84.91 (30%)
    KE30 Kit includes one 5 m (16’) length wiring harness extension for power cable and two 9 m (30’) ength wiring harness extensions for actuator cables. Deutsch plugs included.
  7. 7
    Uflex NP99 Pair Unpolished Stainless Steel trim tab blades 9"x 9" #UF42650E
    Listing:
    €178.12
    Price:
    €124.68
    You Save:
    €53.44 (30%)
    Standard unpolished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
  8. 8
    Uflex NP1212 Pair Unpolished Stainless Steel trim tab blades 12"x 12" #UF42651G
    Listing:
    €262.30
    Price:
    €183.61
    You Save:
    €78.69 (30%)
    Standard unpolished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
  9. 9
    Uflex NP1218 Pair Unpolished Stainless Steel trim tab blades 12"x 18" #UF42652J
    Listing:
    €383.08
    Price:
    €268.16
    You Save:
    €114.92 (30%)
    Standard unpolished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
  10. 10
    Uflex NP912 Pair Unpolished Stainless Steel trim tab blades 9"x 12" #UF42653L
    Listing:
    €185.44
    Price:
    €129.81
    You Save:
    €55.63 (30%)
    Standard unpolished stainless steel trim tab blades. No need for new holes in case of same size Lenco® or Bennett® replacements.
