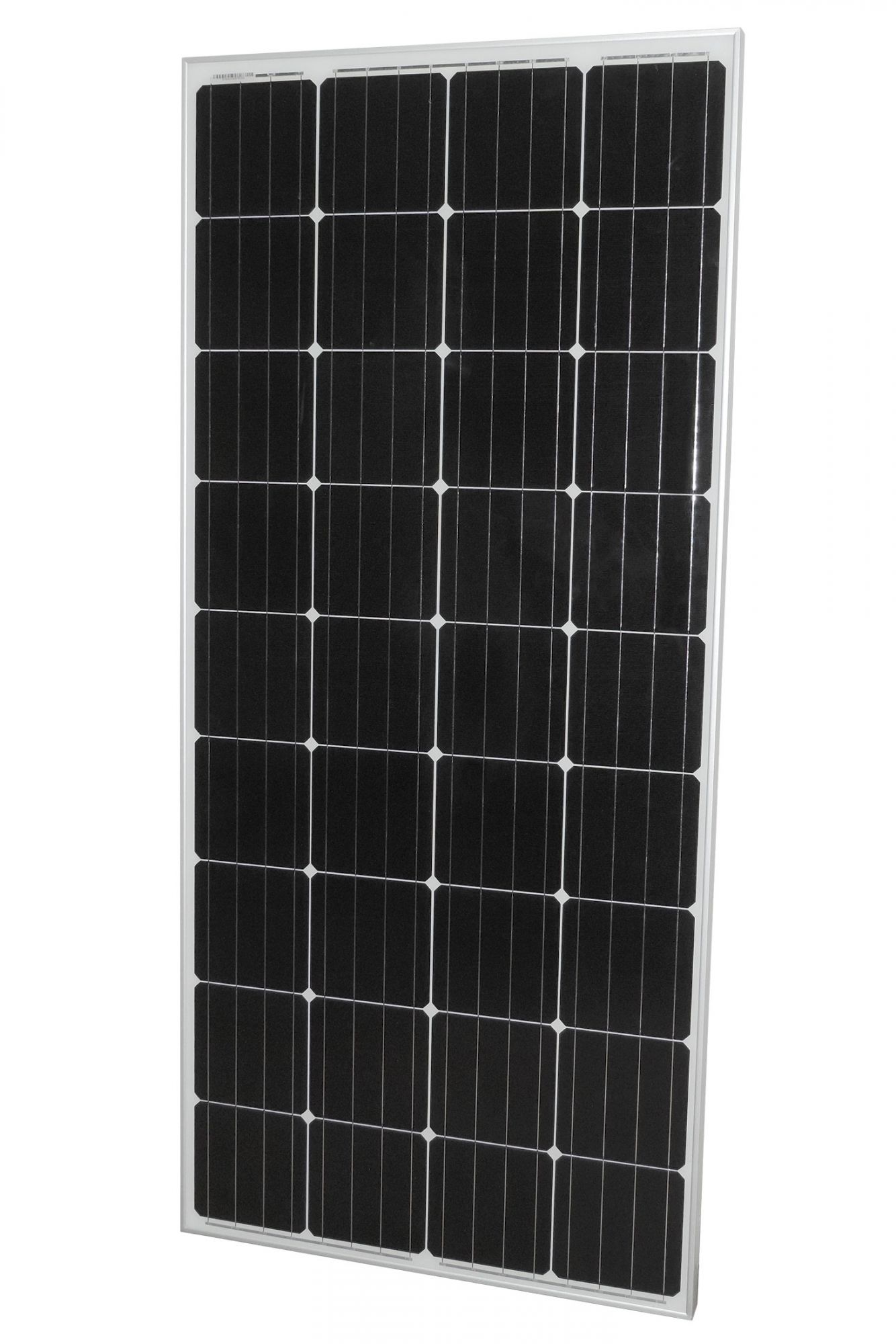

Uflex® uses top quality materials to factory build reliable and long lasting monocrystalline solar panel.
Uflex® prime quality main components are: high efficiency cells, reflection-free and power transmitting glasses, anodized aluminium frames, back positioned mounting holes for easy of installation.
The Quality Management System is certified in compliance with ISO 9001:2008 standards.
Solar Modules manufactured by Uflex® are certified in accordance with IEC61215 and CE standards
Standards: EN 61730-1:2007+A1:2012+A2:2013+A11:2014; EN 61730-2:2007+A1:2012
Product warranty: 12 years
Performance warranty: 30 years linear
Technical data:
- Model: UFX100MM;
- Peak power: 100W;
- Cell type: Monocrystalline;
- Cell configuration: 36 monocrystalline silicon cells;
- Vmp: 18.30V;
- Imp: 5.47A;
- Voc: 22.42V;
- Isc: 5.76A;
- Maximum system voltage: 1000V;
- Output tolerance: ±3%;
- Model structure: Aluminum frame, glass, EVA;
- Junction box classified ≥IP65;
- Working temperature: -40°C ~ +85°C;
- Size: 1015x668x30 mm;
- Weight: 7.7 kg.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
