LiFePO4 lithium battery is definitely the best alternative to 12V lead batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high number of cycles. It can directly store more than 96% of the energy supplied. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.

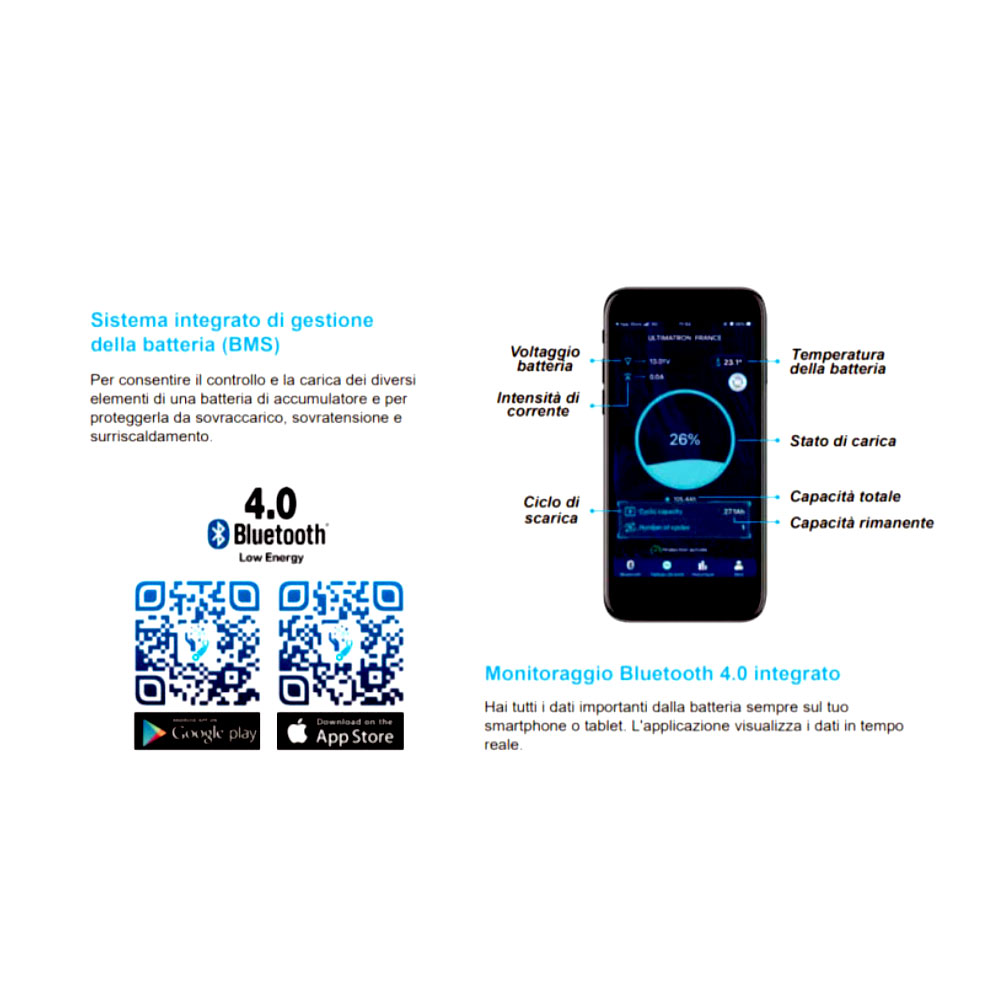

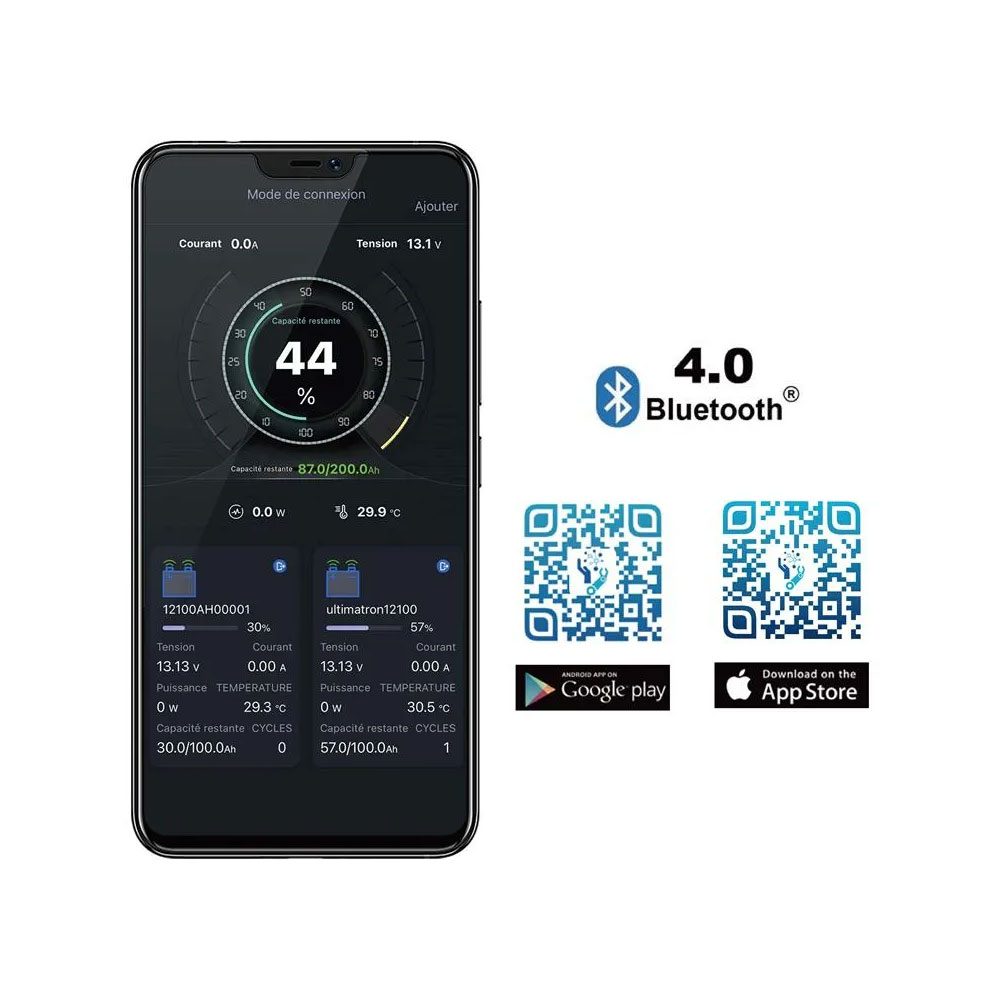

Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles / wheelchairs and cleaning machines are increasingly equipped.
Series and parallel connection for 12V, 24V, 36V, 48V applications.
Electrical performance
Nominal voltage: 12.8V
Nominal capacity: 560Ah
Capacity @ 120A: 300 min
Energy: 7168Wh
Resistance: ≤30mΩ @ 50% SOC
Self discharge: <3% / Month
Cells: Prismatic Cell 3.2V 280Ah
Discharge performance
Continuous discharge current: 120A
Maximum continuous discharge current: 200A
Peak discharge Cut-Off current: 600A/1s
Recommended low voltage disconnect: 10V
Reconnect voltage: >10V
Discharge Cut-Off voltage: >9.6V (50 ~ 150ms)
Charge performance
Recommended charge current: 60A
Maximum charge current: 200A
Recommended charge voltage: 14.6V
Charge Cut-Off voltage: <14.8V (0.5 ~ 1.5s)
Reconnect voltage: >14.4V
Balancing voltage: <14V
Performance in temperature
Discharge temperature: -20 ~ 60 °C
Charge temperature: 0 ~ 45 °C
Storage temperature: -5 ~ 35 °C
High temperature Cut-Off: 65 °C
Reconnect temperature: 48 °C
Mechanical performance
Terminal type: M8
Terminal torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Bluetooth: Bluetooth 4.0 with smartphone app
Case material: metal
Enclosure protection: IP65
Extension: LED display

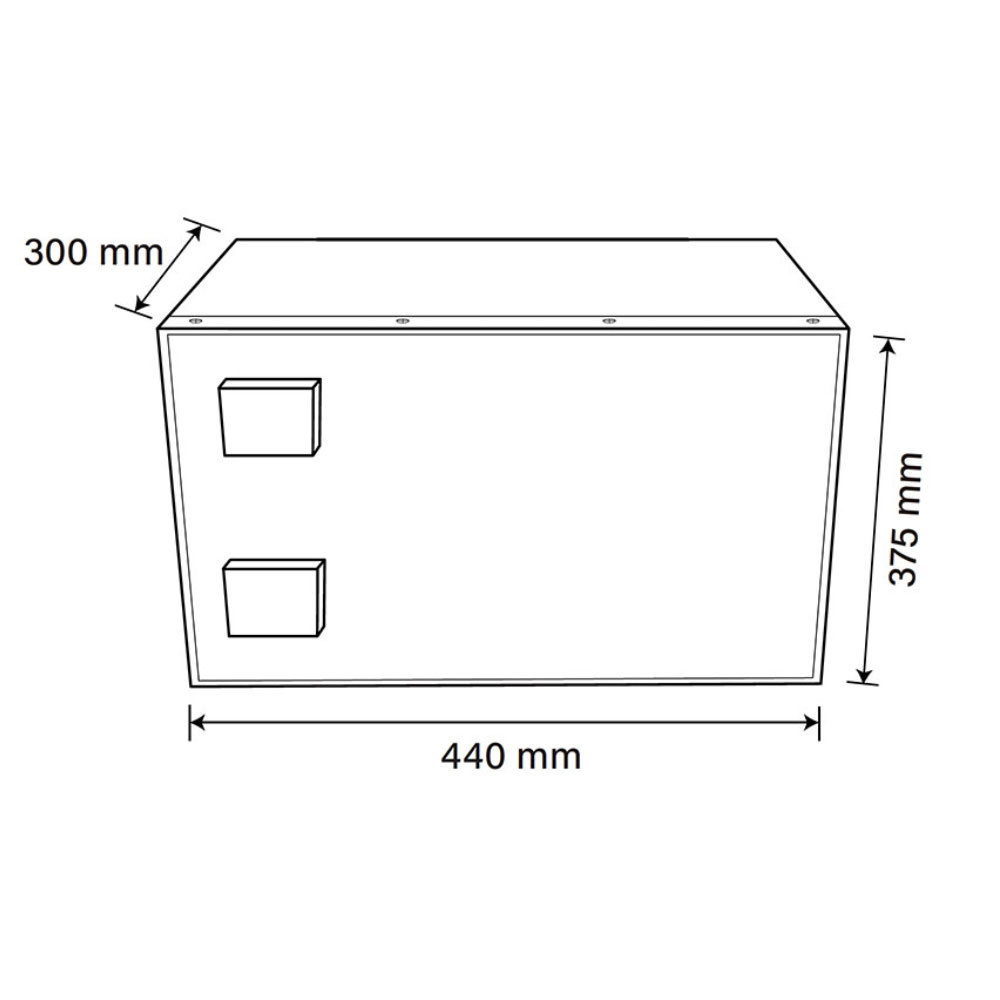

Dimension (LxWxH): 440x375x300 mm
Weight 56 kg
Compliance
Shipping classification: UN 3480, CLASS 9
Certifications: CE, UN38.3, UL1642 & IEC62133
