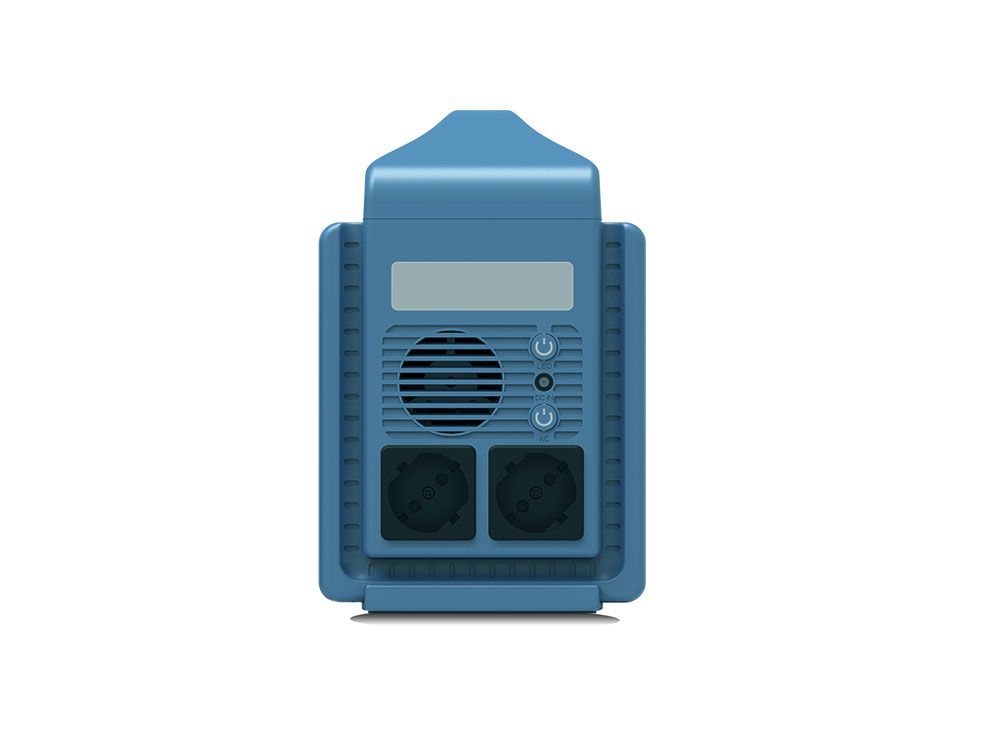

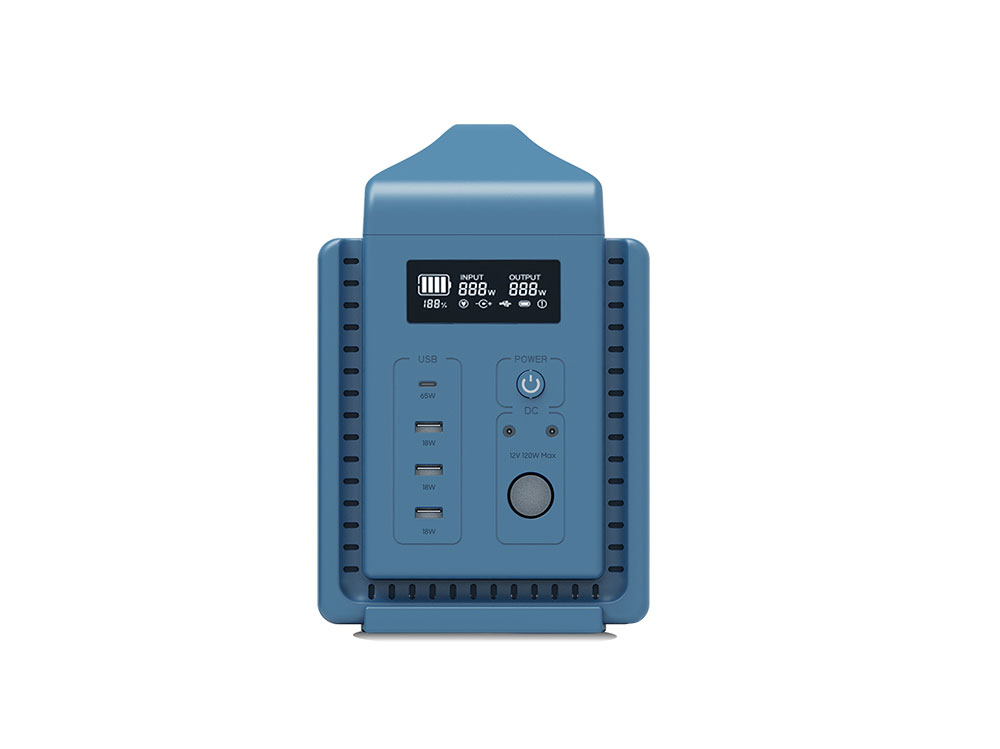

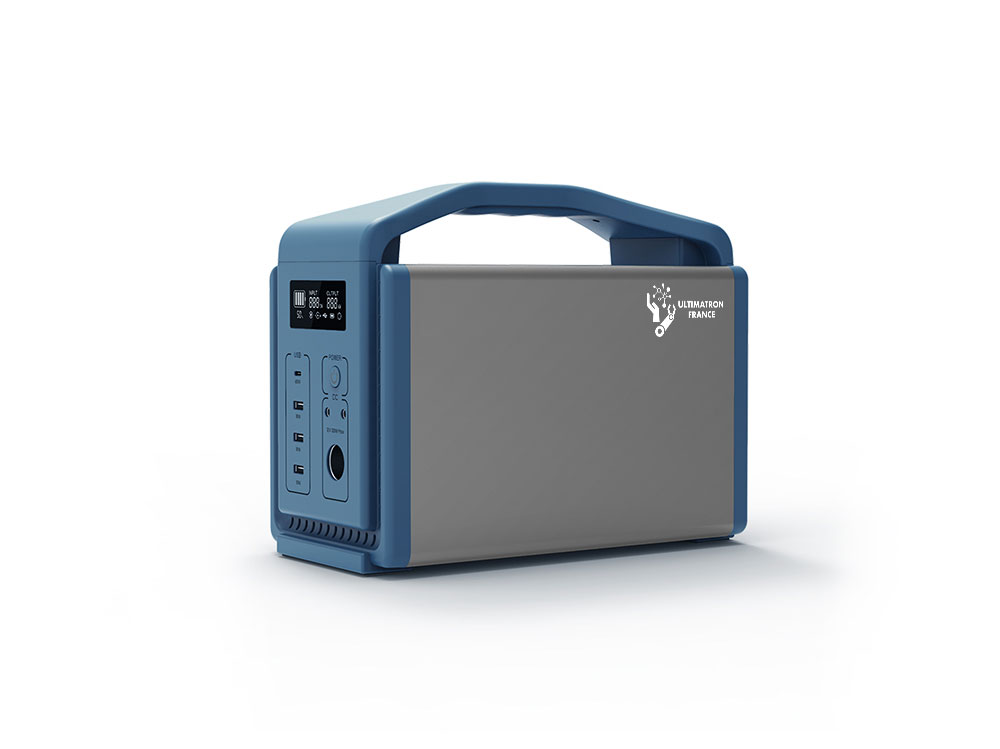

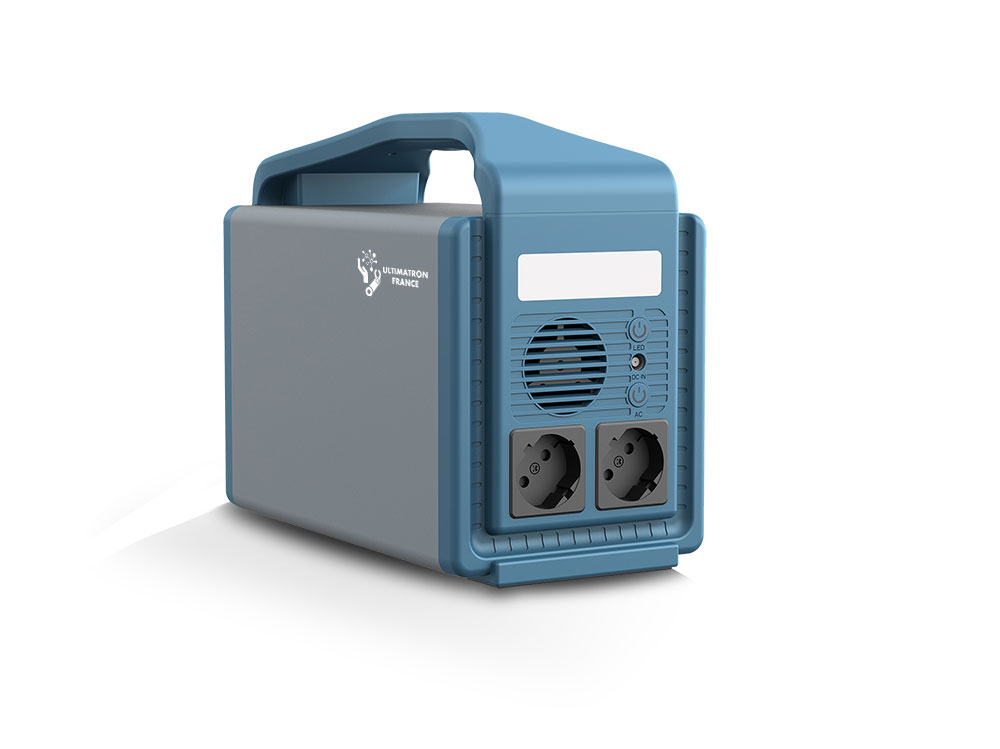

Ultimatron ULT-500 portable power station for powering equipment in all conditions. Designed to be more energy efficient than traditional generators, it is also an extremely lightweight power station. We can finally say goodbye to the use of fossil fuels to drastically reduce carbon emissions into the environment without giving up the convenience of being able to recharge our devices.
The ULT-500 is versatile and compact, our lightest power station ever created. Despite its small size, thanks to the 500W pure sine wave inverter (1000W peak) and a capacity of 560Wh, you can use a multitude of devices, a whisk, an induction plate or a refrigerator.
Don't be afraid of running out of energy anymore, enjoy every trip or just a day in nature and away from the electricity grid without worries.
Lightweight and easy to carry thanks to the handle. Easy charging from the mains, cigarette lighter or solar panel. Consumers can be powered by the sine wave output, the 12 V output or the USB ports.
• AC mains charging input: 230V
• Nominal Capacity: 560Wh (14.4V / 39Ah)
• Rated AC Output: 500W
• Solar input voltage: 12-30V Max 120W
• USB-C Output: 5-20V 3.25A Max
• USB-A output: 5-12V 1.5A
• Operating temperature from -10 to +45°C
• Sinusoidal output waveform
• HD LED display
• Response time: ≤5ms
• Overload protection
• Short circuit protection
• Protection against overheating
• Protection against overcharging
• Protection against excessive charge
• 2 year guarantee
• Life cycle > 3000
Basic parameters:
Rated capacity: 560Wh (14.4V / 39 Ah);
Housing: Aluminum alloy+ABS+PC;
Weight: 7 kg;

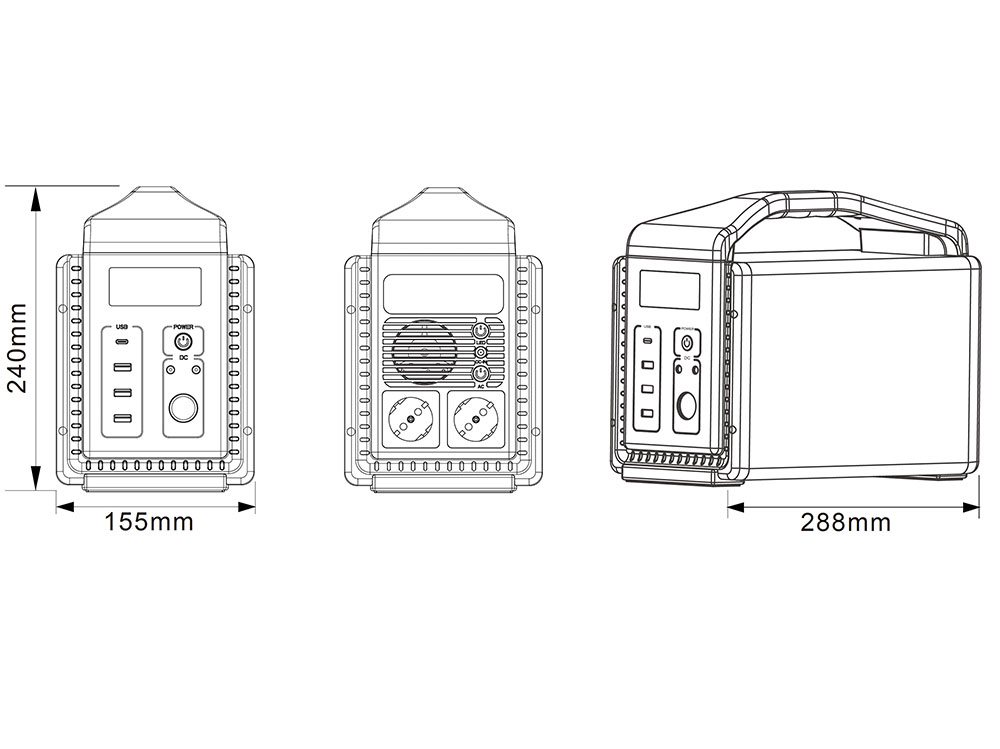

Dimension 288×155×240 mm.
Output parameters:
DC output:
- 1*USB-C: 5V/9V/12V/15V/20V, 3.25A Max (PD 65W);
- 3*USB-A: 5V 3A/9V 2A/12V 1.5A (QC 3.0);
- 2*DC5521: 13.6V 8A
Floating voltage 13.6V - Loading Voltage 12.6V;
- 1*Car socket: 13.6V 8A
Floating voltage 13.6V - Loading Voltage 12.6V;
- LED lamp power: 3W Max;
DC efficiency: ≥92%;
AC output wave form: Pure sine waves;
AC output power: 500W;
AC efficiency: ≥90%;
AC output:
- EU standard
2*AC output port: AC 220-240V~50Hz
Rated power: 500W;
Overload protection: 630W±50W delay for 1 min;
Peak power: 1000W.
Input parameters:
Solar input voltage: 12-30V / Max.120W;
DC input:
- DC charging port: 17V 7A, Max.120W (DC7909);
- Typc-C charging: 20V 3.25A (PD 65W).
Battery specification:
Cell type: LiCoMnNiO2;
Cell model: 18650;
Cells compound mode: 4S15P;
Battery pack voltage: 14.4V;
Life cycle: >3000.
Operating Temperature:
Working environment: 0~45°C;
Working humidity: Not condensation at 20-90% of humidity;
Storage temperature: -10~45°C (Range) (Normal temperature indoor storage);
Standby time: Recharge every 3 months.
