Ultraflex Hyco-I Inboard steering for Boats up to 7.5 - 8 mt - 6mt tube.
Price:
€1,030.11
Listing:
€1,584.78
You Save:
€554.67 (35%)

Description

Ultraflex Hyco-I Inboard steering for Boats up to 7.5 - 8 mt - 6mt tube.

HYCO™-I N° WHEEL TURNS 3,5

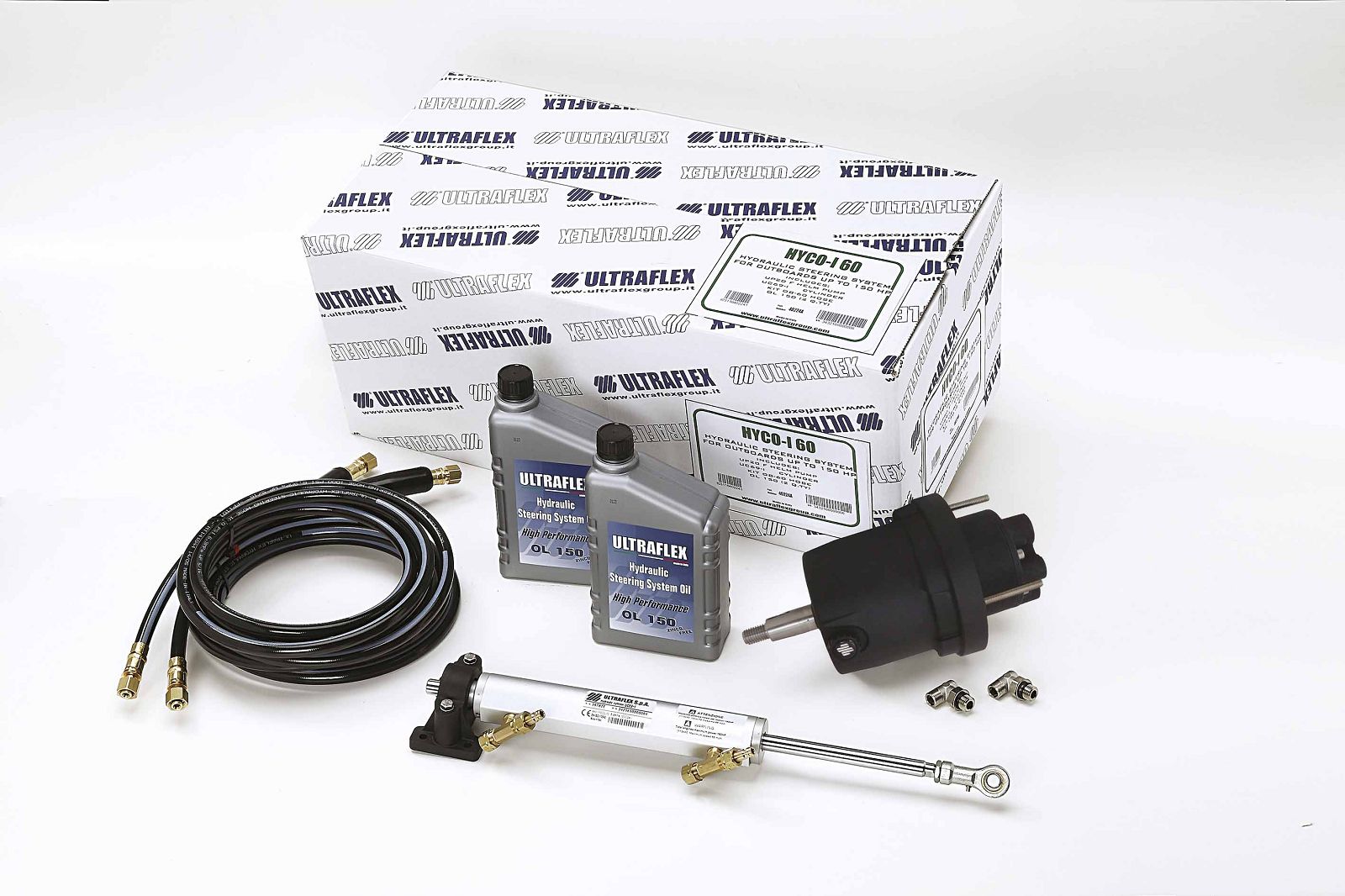

HYCO™-I package kit contains:
• UP20F Front mount helm pump.
• UC69-I Side mount outboard cylinder.
• OL 150 Hydraulic oil - 2 litres (0,5 gallons).
• KIT OB Hose kit with preassembled fittings.

The wheel is not included.

SPECIFICATIONS UC69-I Cylinder
Volume: 69 cc - 4.2 cu.in
Torque: 32 kgm - 2783 lbs.in
Output force: 168 kg - 371 lbs
Inside diameter: 25 mm - 0.98”
Stroke: 150 mm - 5.9”
3/8” (9,5 mm) Fittings: For high pressure flex hose

UC69-I - Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
