Ultraflex Hyco-Obs outboard steering up to 150 HP. Hyco-Obs wheel turns 3,4/5.

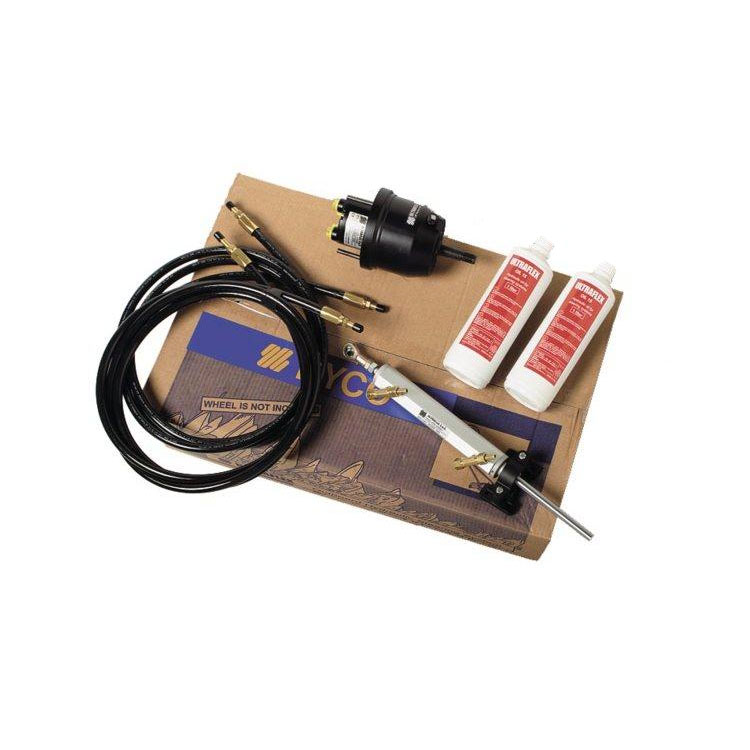

Package kit contains:

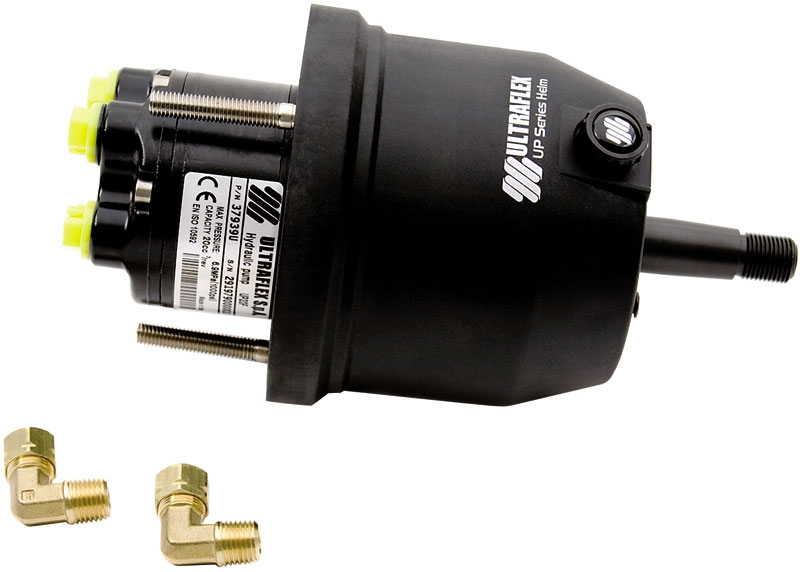

- UP20 F: Front mount helm pump.

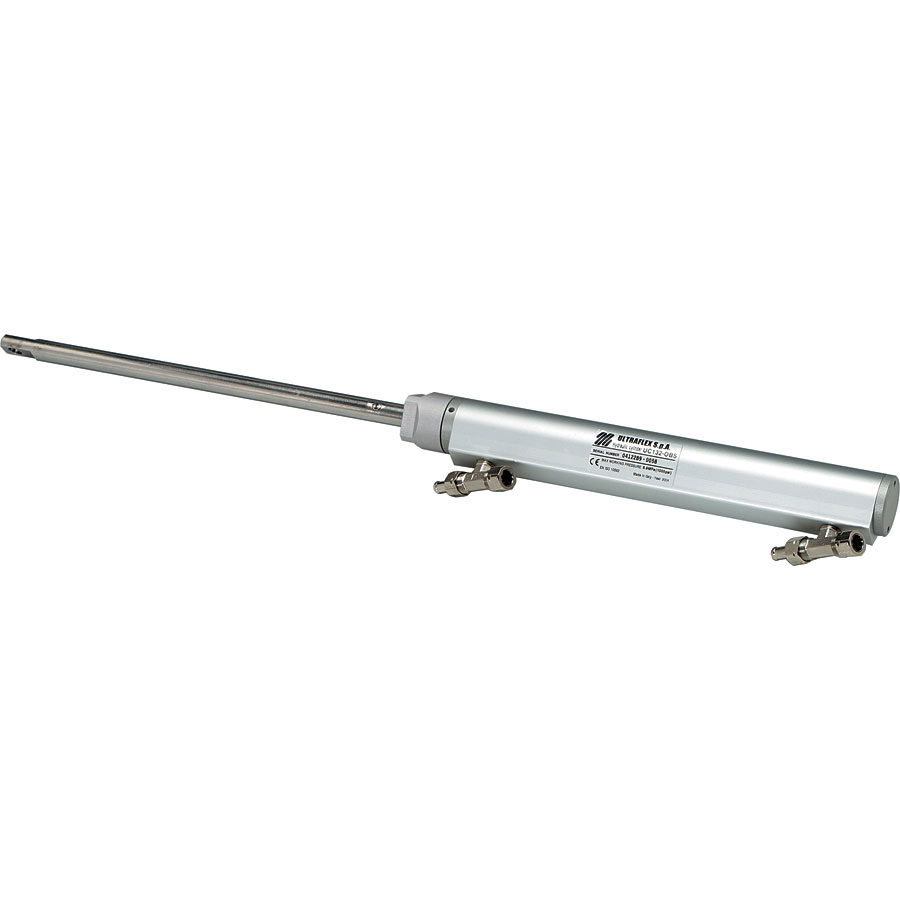

- UC68-OBS: Side mount outboard cylinder.
- OIL 15 Hydraulic oil – 2 litres.
- KIT OB Hose kit with preassembled fittings 6mt.
Note: The wheel is not included.
Volume: 68/100 cc - 4.1/6.1 cu.in
Output force: 185/270 kg - 408/595 lbs
Inside diameter: 25 mm - 0.98"
Stroke: 203 mm - 8"
3/8" (9,5 mm) fittings: For high pressure flex hose
NOTE: UC68-OBS and UC132-OBS side mount cylinders feature a turning nut for a fast and easy installation to the engine tube (PATENTED)
WARNING: UC68-OBS is recommended for use where max boat speed do not exceed 46 mph (40 knots)
Clearance required at the engine tube side: 13.3” (340 mm).
WARNING: UC132-OBS cylinder is not intended for use with 105 Bar (1500 psi) SilverSteer™ Series Helms. Clearence required at the engine tube side: 375 mm (14.76”).
