Ultraflex In-Outboard mechanical steering system - T85
A COMPLETE STEERING SYSTEM CONSISTS OF:

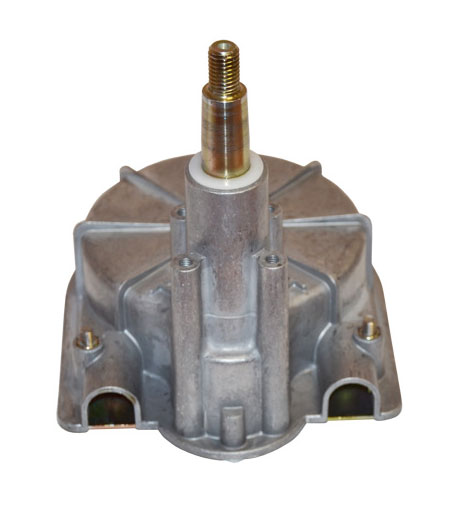

Steering helm:
T85 - 38439Z - Black bezel
Steering cable: M66
Optional steering wheel
Engine connection kits

FEATURES AND SPECIFICATIONS:

End of stainless steel cable,
Constructed of materials resistant to corrosion by sea,
Number of steering wheel turns: approx 3,
Actuating stroke: 228 mm,
Maximum allowable steering wheel diameter: 406 mm,
Minimum bending radius of cable: 200 mm,
The guidance system T85 should not be used on boats equipped with engines that exceed the maximum horsepower rating of the boat,
The guidance system T85 is particularly suitable for applications on boats with inboard motors servo assisted,
The package includes the black hubcap.

Conforms to EN 28848
Complies with ABYC P17.
