Description
Ultraflex Kit HYCO-OBS/M Hydraulic Steering System For Outboard Engines up to 150hp
HYCO™-OBS/M N° WHEEL TURNS 3,4/5,0.
For outboard engines up to 150 hp.

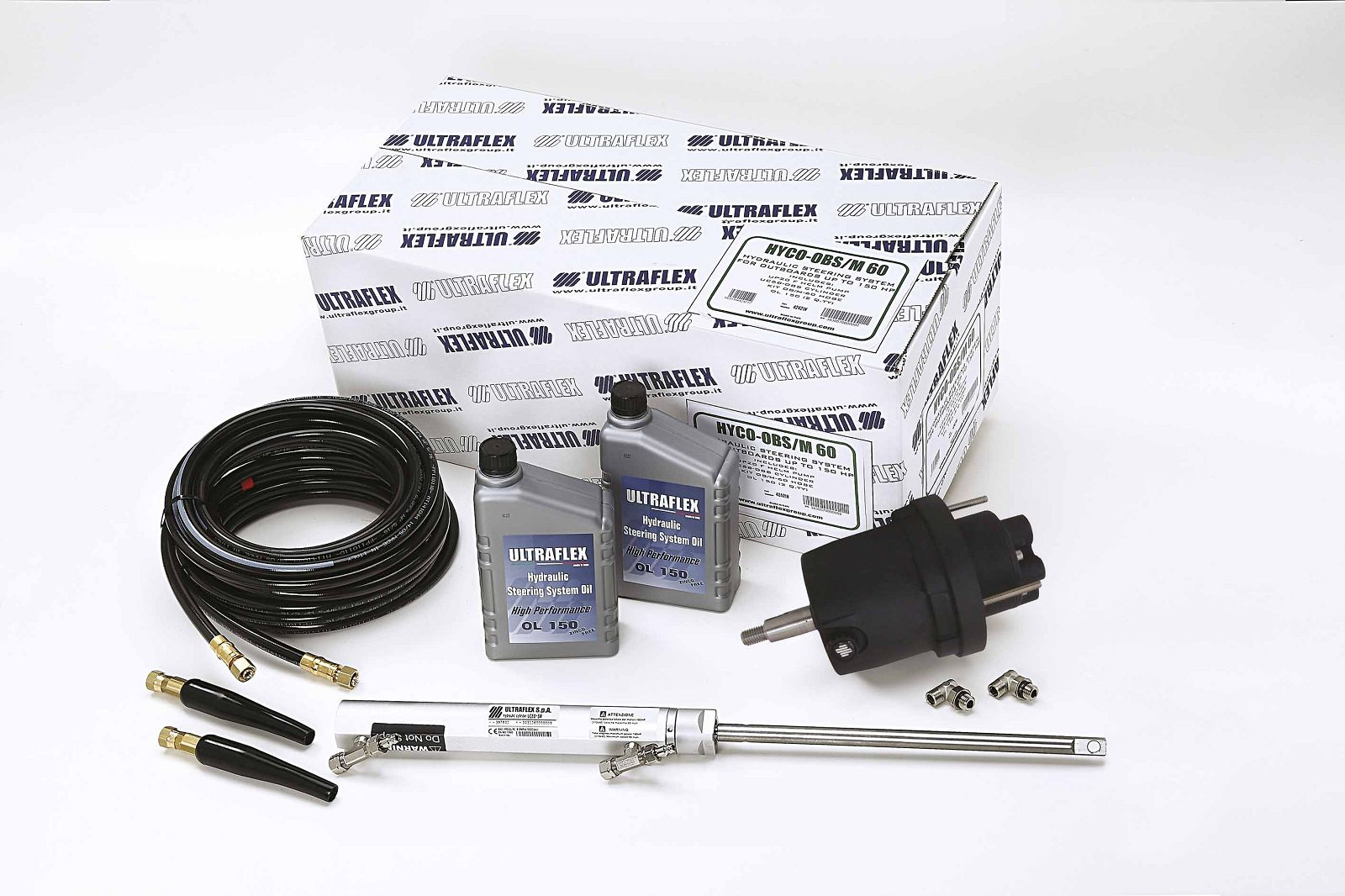

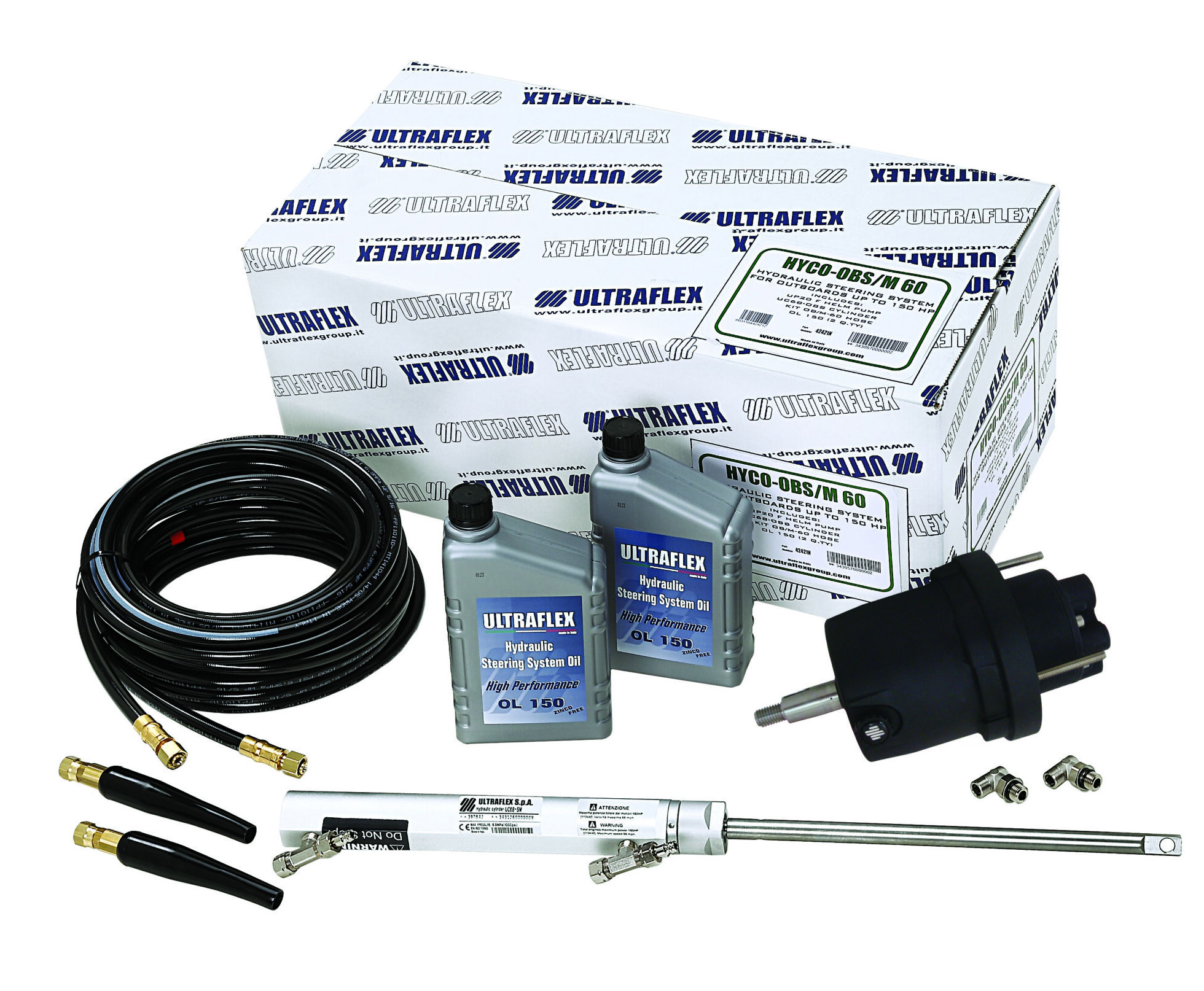

HYCO™-OBS/M package kit contains:
• UP20F Front mount helm pump.
• UC68-OBS Side mount outboard cylinder.
• OL 150 Hydraulic oil - 2 litres (0,5 gallons).
• KIT OB/M-60 (90) Hose kit with preassembled fittings. Specify length required when ordering.
The wheel is not included.
SPECIFICATIONS UC68-OBS CYLINDER
Volume: 68/100 cc - 4.1/6.1 cu.in
Output force: 185/270 kg - 408/595 lbs
Inside diameter: 25 mm - 0.98"
Stroke: 203 mm - 8"
3/8" (9,5 mm) fittings: For high pressure flex hose
NOTE: UC68-OBS and UC132-OBS side mount cylinders feature a turning nut for a fast and easy installation to the engine tube (PATENTED)
WARNING: UC68-OBS is recommended for use where max boat speed do not exceed 46 mph (40 knots). Clearance required at the engine tube side: 13.3” (340 mm).
