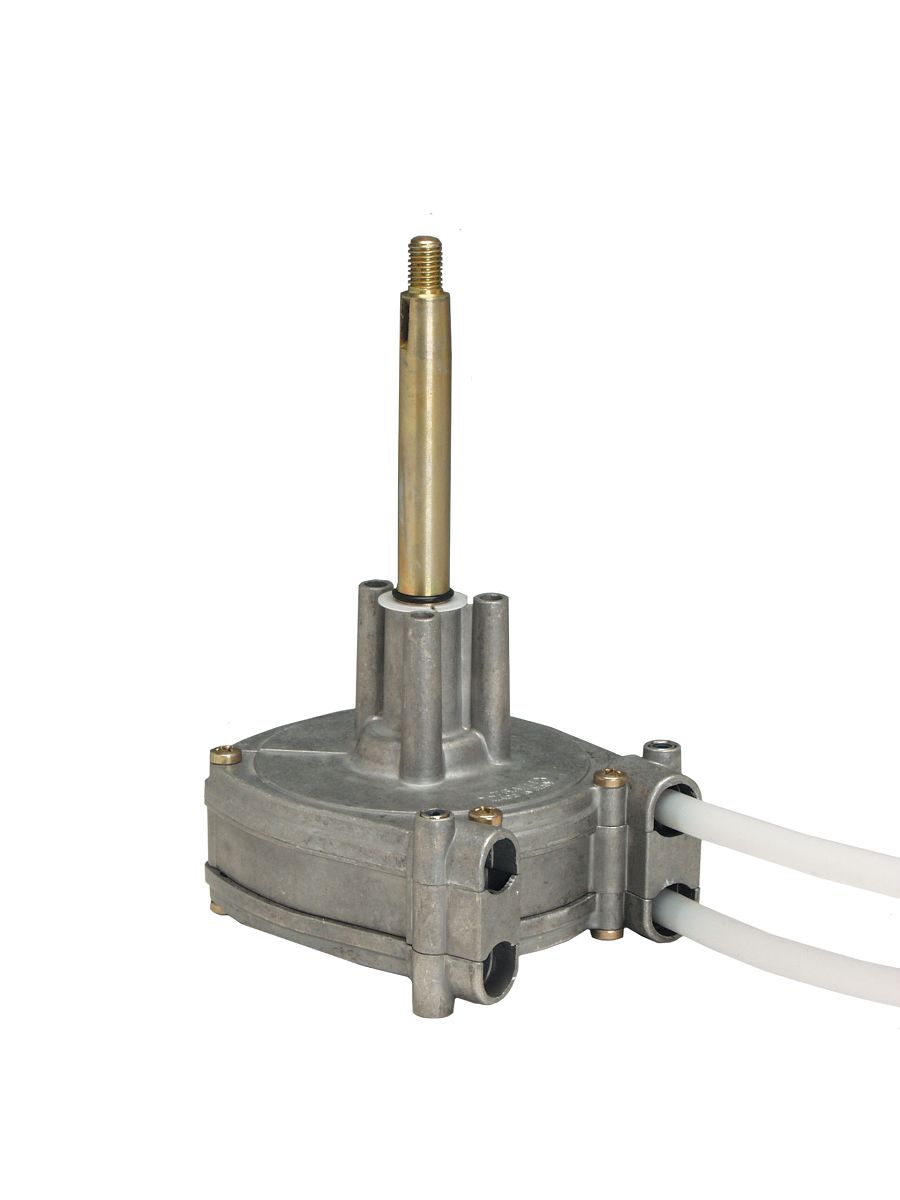

Single Ultraflex mechanical steering for inboard-outboard T71FC. Steering helm with fast connect,simple installation. Corrosion resistant materials. Particulary suitable where clearance is limited. Optional 90° or 20° installation. Standard 3/4 tapered shaft. Lock-to-lock steering wheel turns: approx.3,8. Stroke:228 mm (9). Maximum allowable steering wheel diameter: 406 mm (16). Minimum steering cable bend radius: 200 mm (7.9). Minimal feedback. Compact for mounting T72FC steering systems is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. For boats faster than 50 mph the twin cable steering system T72FC is recommended. M66 steering cable required.
FEATURES AND TECHNICAL SPECIFICATIONS:
• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion resistant materials
• Particulary suitable where clearance is limited
• Optional 90° or 20° installation
• Standard 3/4” tapered shaft
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter: 406 mm (16”)
• Minimum steering cable bend radius: 200 mm (7.9”)
• Minimal feedback
• Compact for mounting
• T71FC and T72FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph Ultraflex hydraulic steering systems are recommended
• T71FC steering system is also available in package with ROTECH-I
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards.
