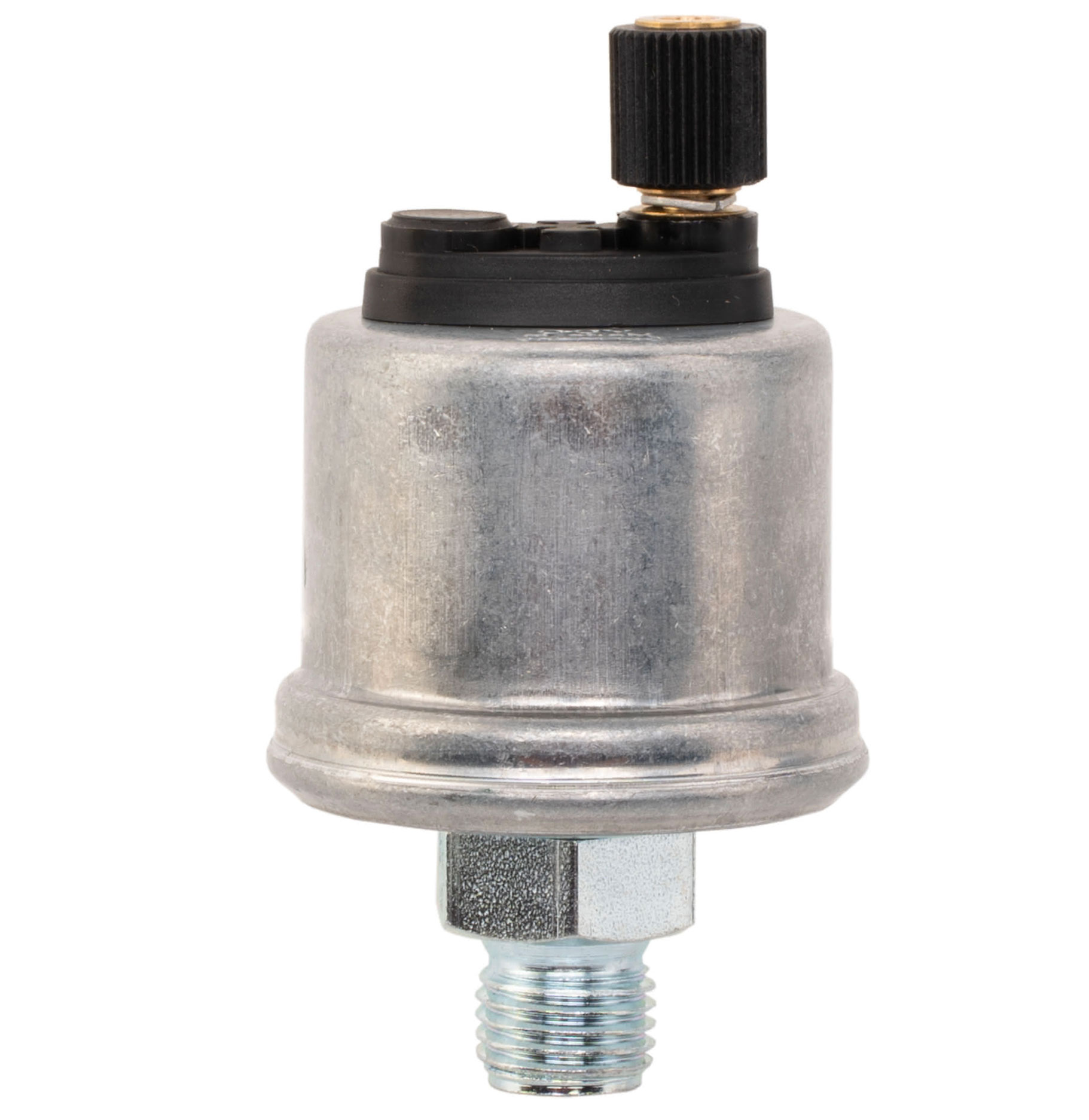

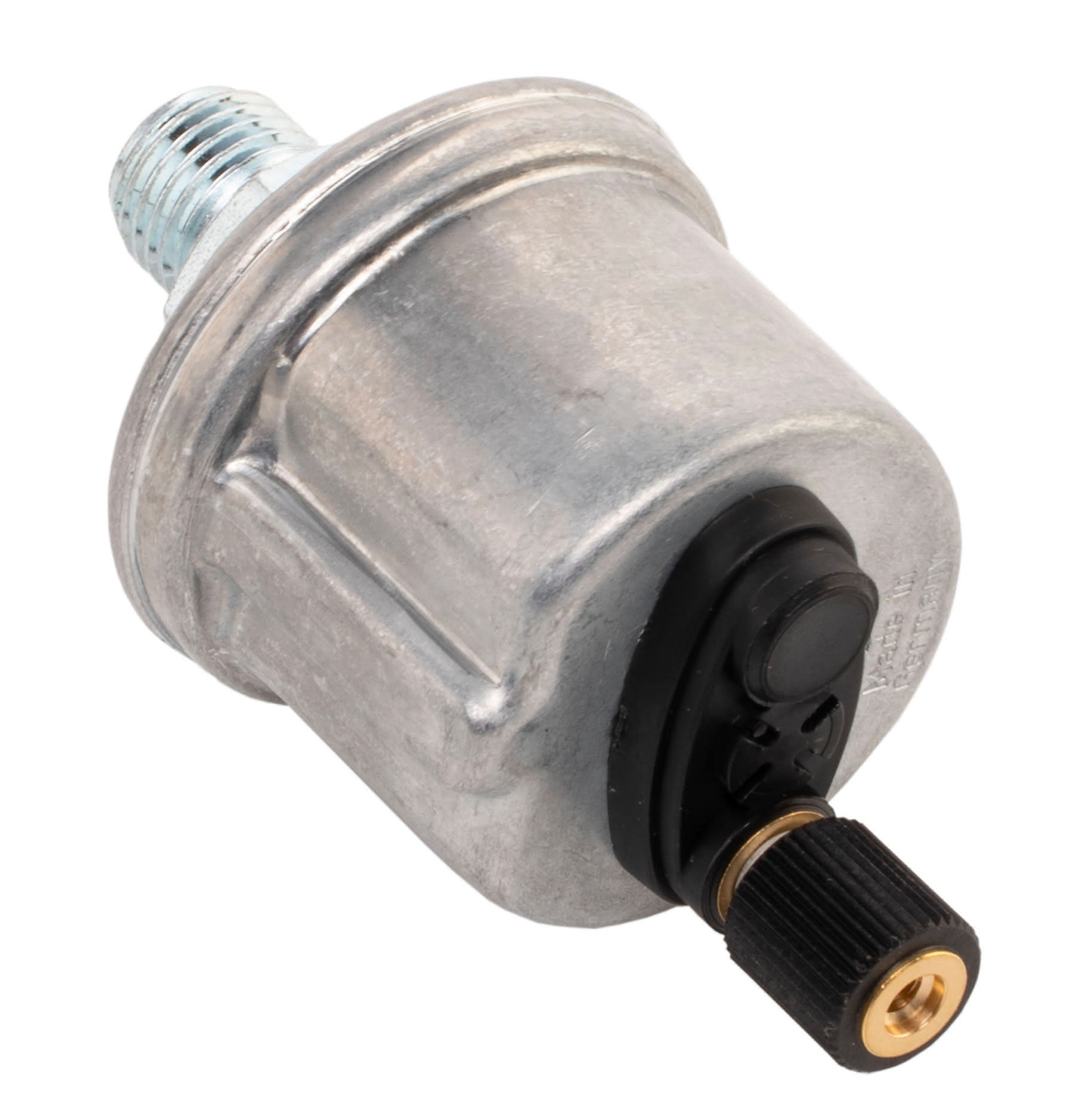

VDO ViewLine Oil pressure bulb 10 Bar
Bar 10. Thread: M10x1 Nominal voltage from 6V to 24V. Poles - insulated: Yes. Without alarm.
Resistive values from 10 to 184Ω. Operating temperature from -25 °C to +100 °C. Overpressure resistances: Max. 30 or 50 W (short periods of 2 seconds).
Can be combined with Osculati, Guardian, VDO, etc. indicators.
