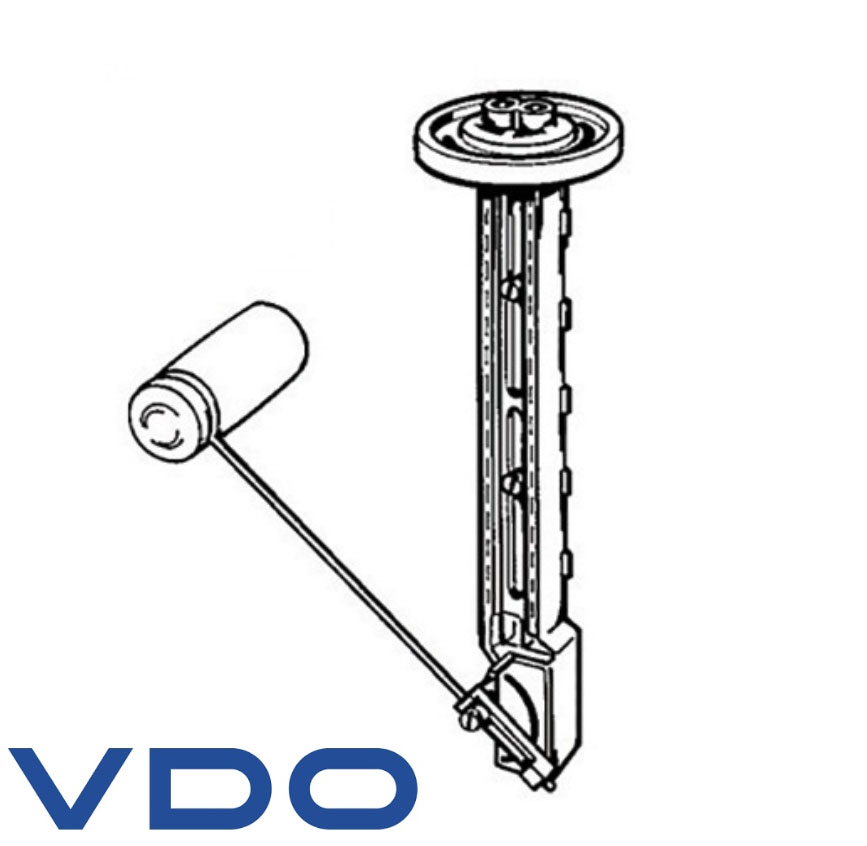

VDO ViewLine Fuel level float 150-605mm

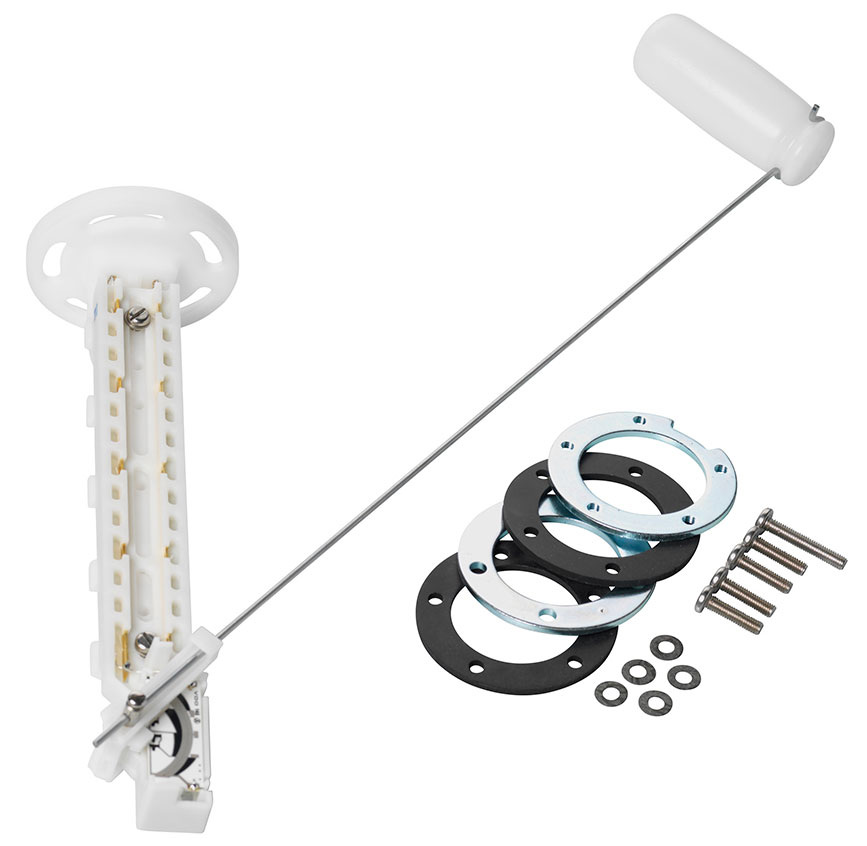

VDO ViewLine adjustable lever float from 150 to 605 mm, fitted with fastening counter flange 27.674.10. Kit including 2 x metal ring nuts + 2 x fastening seals (screws included).

Technical specifications:
■ Depth of the tank: 150 - 605 mm;
■ Mounting flange: 5-Hole SAE 54 mm;
■ Operating temperature: -25 ° C to +65 ° C;
■ Fuel: oil - petroleum - diesel - petrol;
■ Operating voltage: 6 - 24 V DC;
■ No-load resistance: 3 Ohm ± 1.5 Ohm;
■ Full resistance: 180 Ohm.
