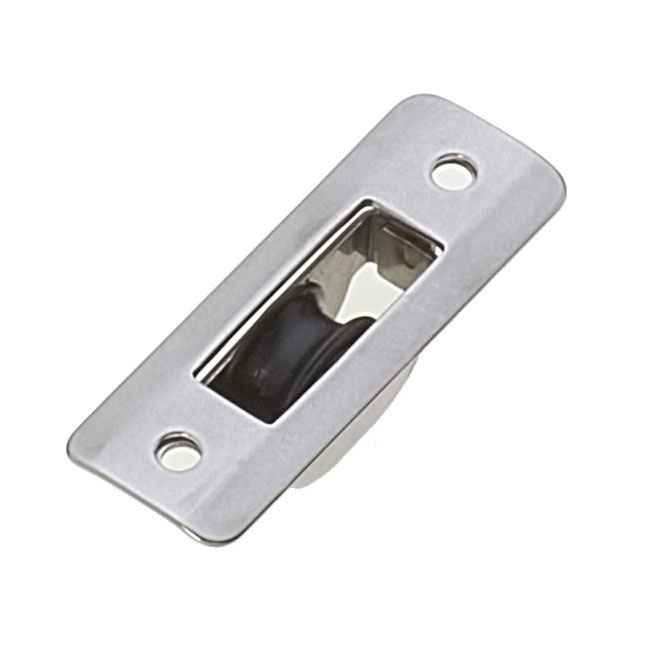

Single thru-deck block made of stainless steel Aisi 316 with nylon sheave. Light and compact, ideal on small boats for control lines, boom vangs and numerous applications. Delrin® cheeks and sheave. Stainless steel (AISI 316) load straps.

Specification single block:
Sheave diameter: 22 mm.
Maximum line size: 6 mm.
Overall height: 43 mm.
Weight: 17 gr.
Breaking load: 700 kg.
Maximum working load: 100 kg.
Holes dimensions D.5 mm, distance 55 mm.
