Victron Argo-2003 FET Battery Isolator 3 200A Batteries #UF64992J

Victron Argo-2003 FET Battery Isolator 3 200A Batteries #UF64992J

Victron Argo-2003 FET Battery Isolator 3 200A Batteries #UF64992J

Battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery, for example, will not result in discharging the starter battery.
Price:
€164.70
Listing:
€183.00
You Save:
€18.30 (10%)

Description

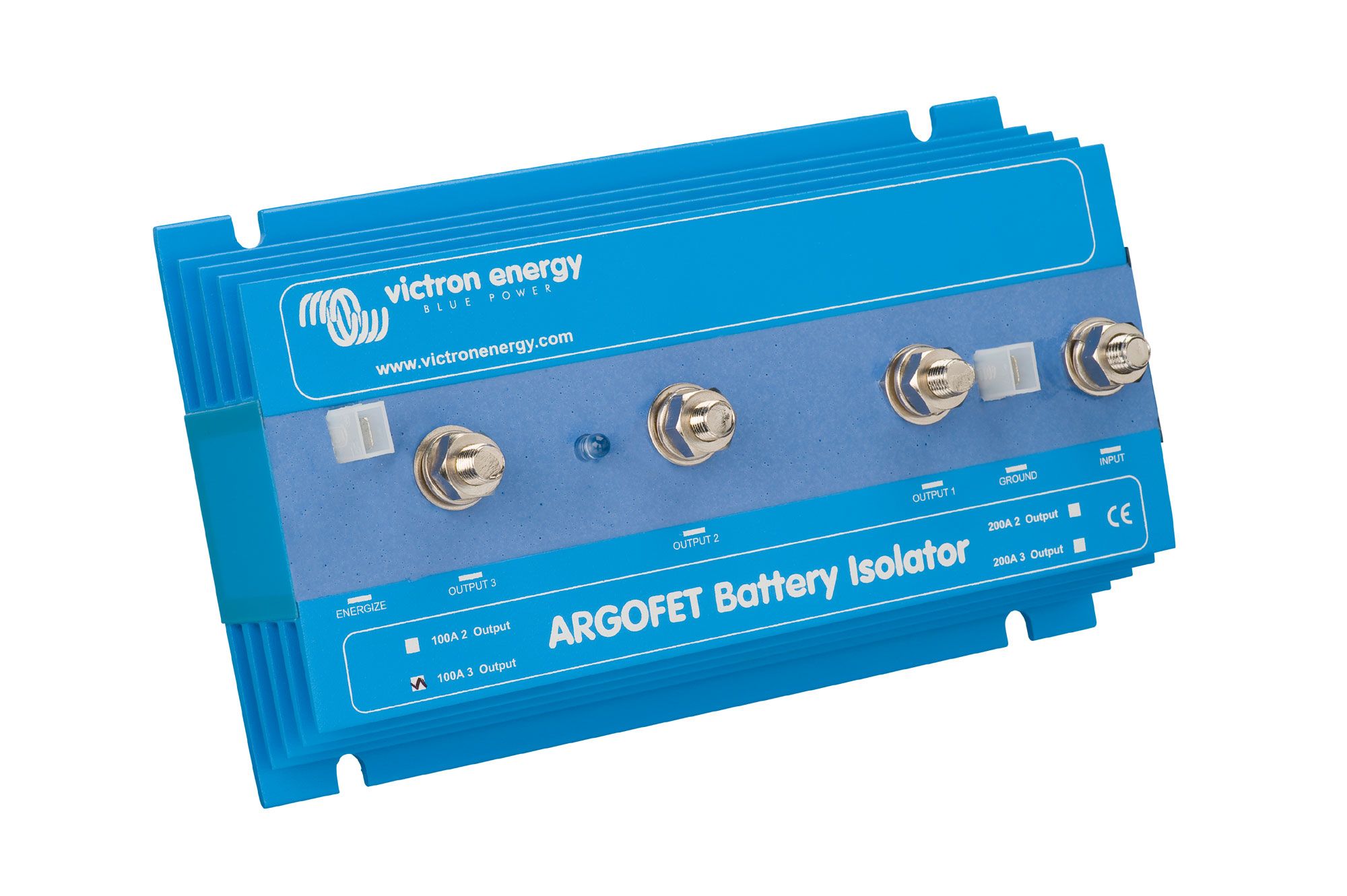

Victron Argo-2003 FET Battery Isolator 3 200A Batteries

Battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery, for example, will not result in discharging the starter battery.

Alternator energize input
Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery.
Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new diode isolators have a special current limited energize input that will power the B+ when the engine run/stop switch is closed.

ARGO FET BATTERY ISOLATORS: NO VOLTAGE LOSS
Differently from diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less then 0,02 Volt at low current and averages 0,1 Volt at higher currents.
When using ARGO FET battery isolators, there is no need to also increase the output voltage of the alternator. Care should be taken however to keep cable lengths short and of sufficient cross section.

Alternator energize input
The new ARGO FET isolators have a special current limited energize input that will power the B+ when the engine run/stop switch is closed.

Specifications:
Model: 200/3-FET
Max Charge Current: 200A
Alternator Max Current: 200A
No. of Batteries: 3
Dimensions  mm ("): 65x120x200 (2.6x4.7x7.9)
Weight kg (lbs): 1.4 (3.1)
